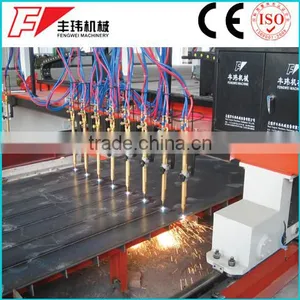

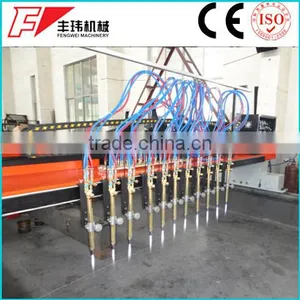

The multi-head strip cutting machine is equipped with many cutting torches, it is used in strip cutting.
Features of Multi-head strip cutting machine:
1.Our Multi-head strip cutting machine features high rigidity, high precision, stable and reliable performance, easy maintenance, etc.
2.Main components have undergone annealing, polishing and painting.
3.it can cut steel to strip plates, it uaually used in h beam manufacture line.
The main technical parameters:
Type |
Driving form |
Track distance (mm) |
Effective width (mm) |
Cutting thickness(mm) |
Cutting speed (mm/min) |
Max. speed (mm/min) |
Vertical range of the cutting torch |
CNC-CG-3000 |
Single side |
3000 |
2200 |
6-200(Refer to the performance of the cutting head) |
100-750(Refer to the performance of the cutting head)) |
6000 |
150 |
CNC-CG-3500 |
Single side |
3500 |
2700 |
6000 |
150 |
||
CNC-CG-4000 |
Single side |
4000 |
3200 |
6000 |
150 |
||
CNC-CG-5000 |
Double side |
5000 |
4200 |
6000 |
150 |
||
CNC-CG-6000 |
Double side |
6000 |
5200 |
6000 |
150 |
||
CNC-CG-7000 |
Double side |
7000 |
6200 |
6000 |
150 |
||
CNC-CG-8000 |
Double side |
8000 |
7200 |
6000 |
150 |
||
CNC-CG-9000 |
Double side |
9000 |
8200 |
6000 |
150 |
||
CNC-CG-10000 |
Double side |
10000 |
9200 |
6000 |
150 |
||
CNC-CG-11000 |
Double side |
11000 |
10200 |
6000 |
150 |
||
CNC-CG-12000 |
Double side |
12000 |
11200 |
6000 |
150 |
||
CNC-CG-13000 |
Double side |
13000 |
12200 |
6000 |
150 |

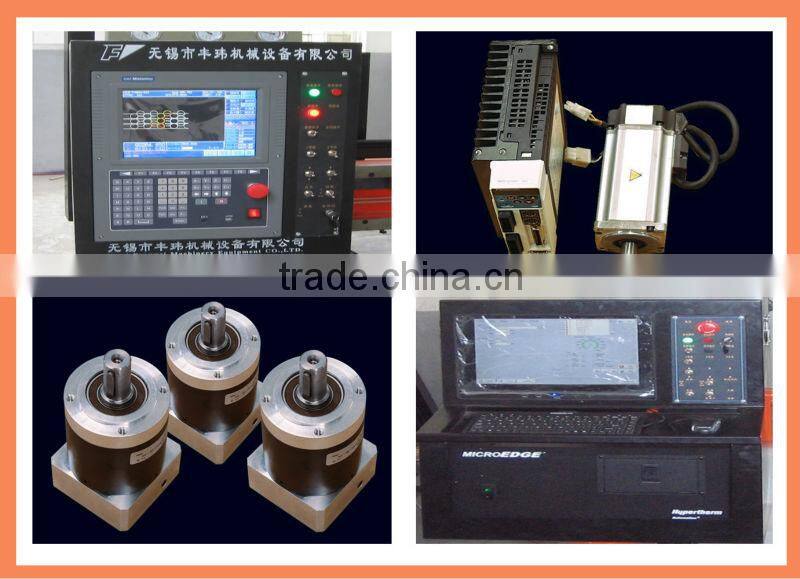

The main components of our cutting machines are adopts famous brands.

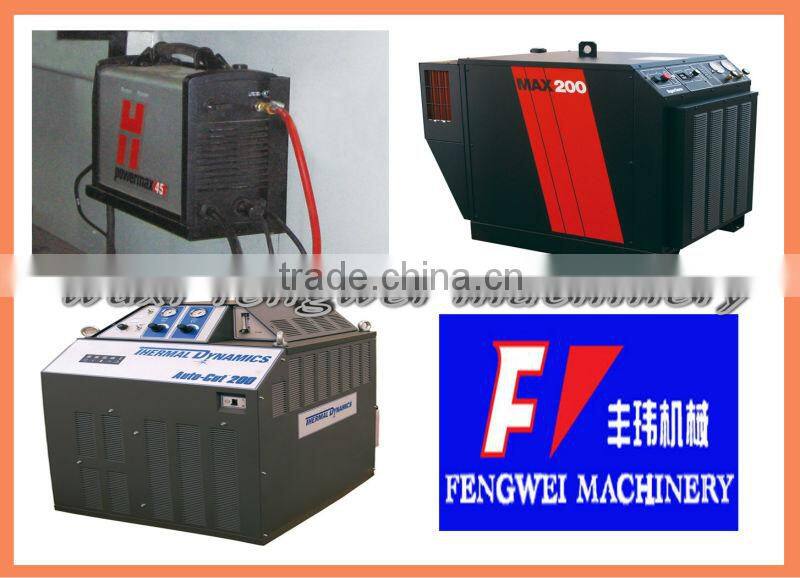

The various powers:
We have many process equipments, such as boring machine, milling machine, drilling machine etc.
The cutting machine can be equipped with some special devices, automatic lifting device, automatic ignition device, automatic power-spraying device etc.

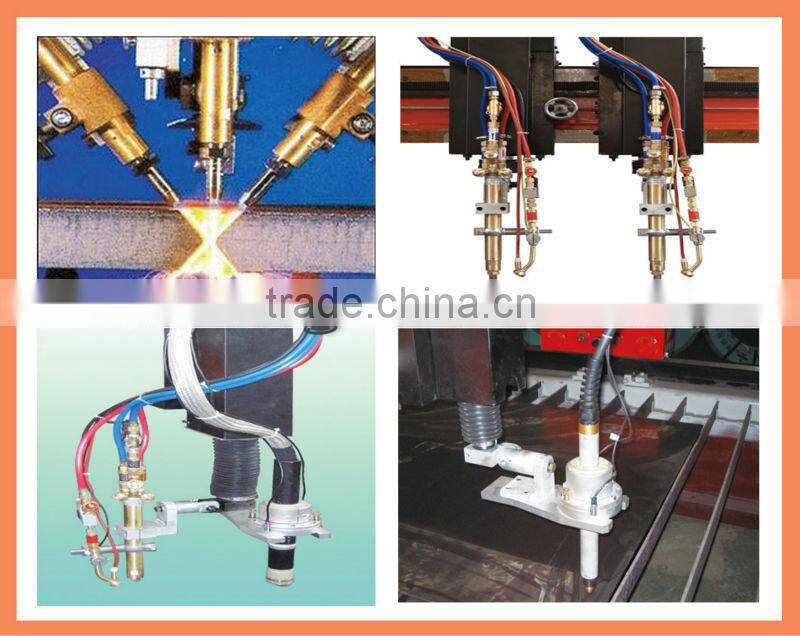

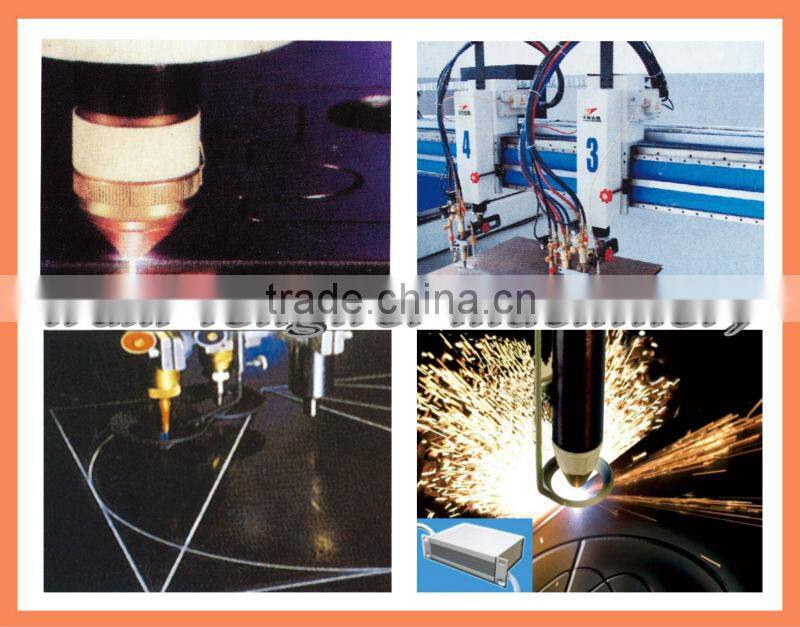

The cutting machine can be equipped with different cutting torches, such as plasma cutting torch, flame cutting torch, upright cutting torch etc.

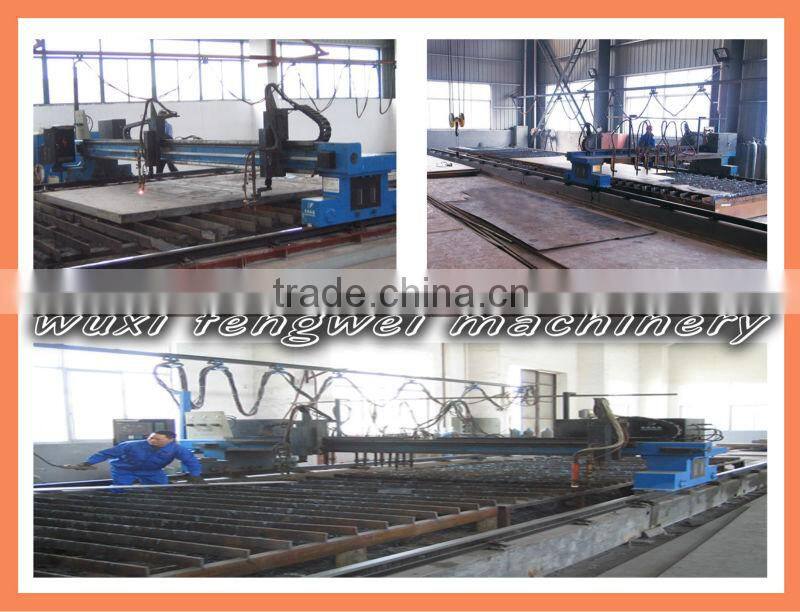

The application:
The picture of customer and our boss
We are professional manufacturer in making welding equipments(welding rotators, welding positioners, welding manipulators), CNC plasma and flame cutting machine, H beam production line(strip plate cutting mahcine---h beam assembling machine---H beam gantry type welding machine---face edge milling machine), bevelling plate edge milling machineetc.
We have own design team and workshops, we can design and make machines according to different requirements.
Our design team:

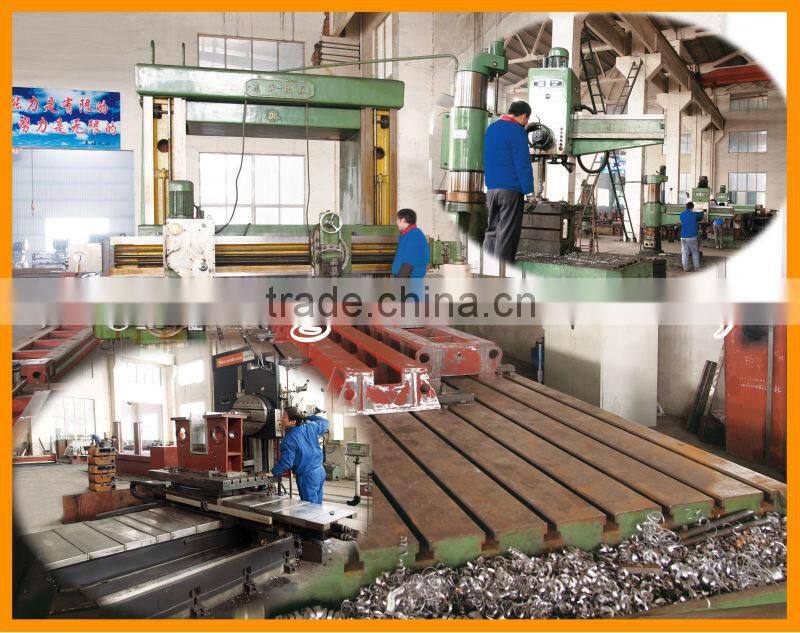

Our workshops:
Our policies: “Customer First”, “Sincere cooperation”, “ Matually beneficial”,
“ Joint development ”. We sincerely hope to establish a long term and steady business
relationship with more clients all over the world.
The principle of our service "Good faith, fast reply and professional personnel."
Our service as follows:
1.We provide technical support, if you have any questions about our products, welcome to contact to us, we will reply to you on time.
2.We provide after-sales service for paid. we have own professional teams for after-sales service.
3.We also provide other service if you come to China for the first time.
1. Customers: Could you design the machines as our requirements?
We: Yes. We have own design teams and workshops, so we can design and make various kinds
of welding equipment as your specific technical requirements.
2. Customers: How do you transport your products?
We: We usually transport our products by sea. If you have specific requirements, we can adopt
your way, it's no problems.
3. Customers: What's about your after-sales service?
We: We provide 12 months quality warranty after dispatch, and some easy abrasion spares of
equipment for free. We also provide a long-term free technical advisory services and technical consults service. We can also provide installation and training for value.
