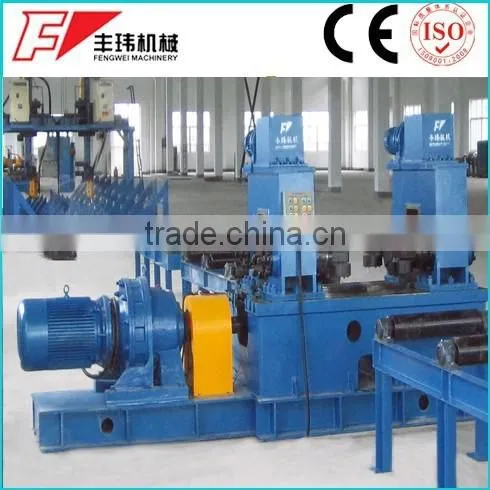

H beam Flange Straightening machine
- 20 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Fengwei Machinery | |
| Model Number | HYJ/YJB | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This H-beam flange straightening machine is widely used in welding works for the purpose of correction of the steel flange and straighten the flange plates.
In the welding process, when the H-beam is in the process of welding and heating, the flange plate must be bent and transfigured. This macine has a large scope of application and powerful working capacity. There are hydraulic drift rollers in the front and back of the main machine.
The main features:
1.All the parts that equipped in the machine are reinforced so as to realize the long service life .
2.All the correcting rollers in the machine are made of high-quality alloy steel
3.The machine is in simple structure, high efficiency, and convenient operation and so on.
The main technical parameters:
Type | HYJ-600 | HYJ-800 | YJB-60B |
Flange width(mm) | 150-600 | 200-800 | 200-800 |
Flange thickness(mm) | ≤20 | ≤40 | ≤60 |
Min. web height(mm) | 160 | 350 | 350 |
Material | Q235A | Q235A | Q345A |
Straightening speed(m/min) | 8.5 | 18 | 6.37 |
Total motor power(kw) | 9 | 25 | 37 |
Straightening type | Mechanical type | Hydraulic type | |
1. Customers: Could you design the machines as our requirements?
We: Yes. We have own design teams and workshops, so we can design and make various kinds
of welding equipment as your specific technical requirements.
2. Customers: How do you transport your products?
We: We usually transport our products by sea. If you have specific requirements, we can adopt
your way, it's no problems.
3. Customers: What's about your after-sales service?
We: We provide 12 months quality warranty after dispatch, and some easy abrasion spares of
equipment for free. We also provide a long-term free technical advisory services and technical consults service. We can also provide installation and training for value.
