Insulating Fiberglass Banding Tape Used for Transfromer

Insulating Fiberglass Banding Tape Used for Transfromer thumbnail-1
Insulating Fiberglass Banding Tape Used for Transfromer photo-1
Negotiable MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HaiYing
Material:
Other, glass fiber
Contact Supplier Request Quote Chat Now
Shanghai Haiying Insulation Glass Fiber Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HaiYing
Material Other, glass fiber

Specifications

1>MOQ:1000meter/meters
2>Supply abilities:200000meter/meters
3>FOB Shanghai
4>delivery goods prempty;
good sales-service

           The banding tape consist of parallel and twisted and untwisted E--glass yarns preimpregnated with a special thermosetting epoxy resin.

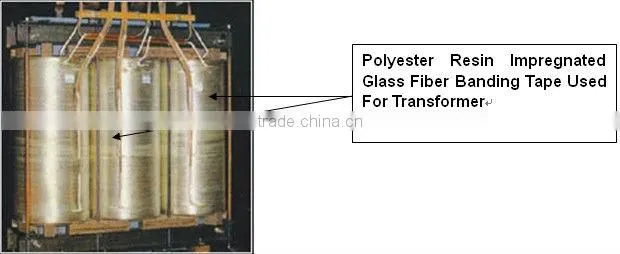

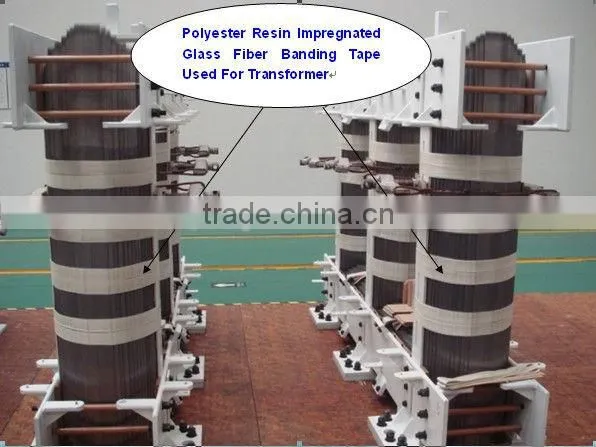

 Insulating Fiberglass Banding tape used for transfromer

Insulating Fiberglass Banding tape used for transfromer

Insulating Fiberglass Banding tape used for transfromer

Insulating Fiberglass Banding tape used for transfromer

Properties:
Type
2843-W
Thermal class
F
Volatile content
≤4%
Loss of weight at calcination
26%±2%
Soluble resin content
≥90%
Tensile strength before curing
≥1500N/cm
Maximum pull while banding
1200N/cm
Specification:
Thickness (mm)
Width (mm)
Length (M/pancake)
0.17
10,15,20,25,30 50
250, 100, 120
0.3/0.33
10,15,20,25,30 50
200 100
      * Special specification and package are availabe upon request, (such as spool)
Curing cycles:
Temperature (°C)
160
150
135
120
115
Time (hour)
5
6
8
16
24
      * The above times do not include the time for the workpiece to reach the curing temperature.
Storage stabiliy:
Storage temperture °C
10
15
20
30
Time (month)
8
6
4
2



Package:Insulating Fiberglass Banding tape used for transfromer

 Insulating Fiberglass Banding tape used for transfromer
