1,good quality ,competitive price2, Imported parts ,guarantee quality
3,Full autommtic easy of handing
Description of product

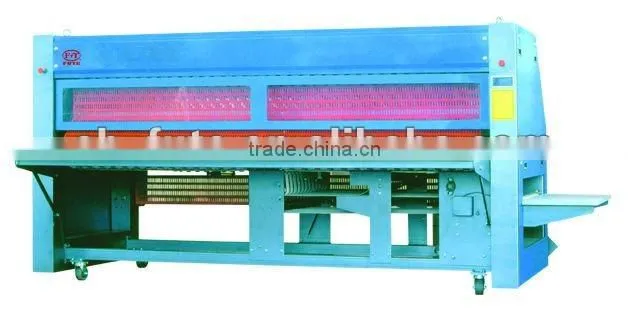

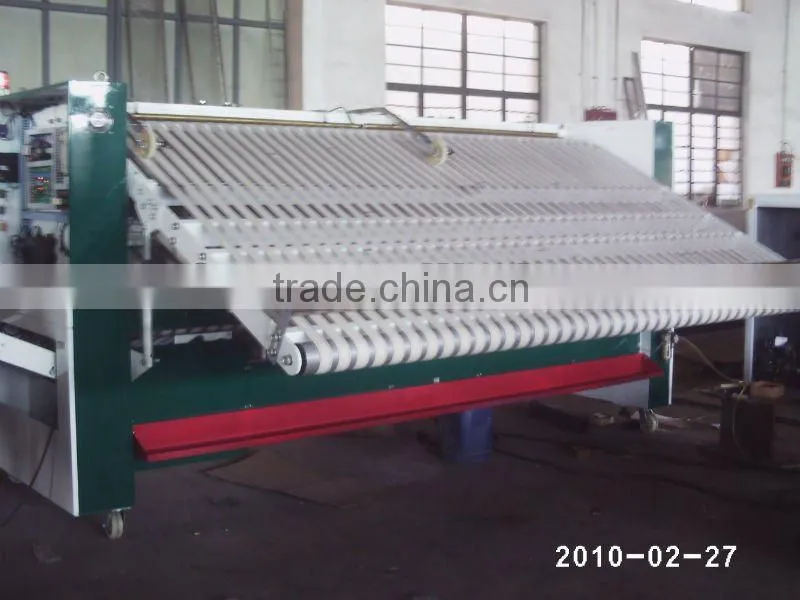

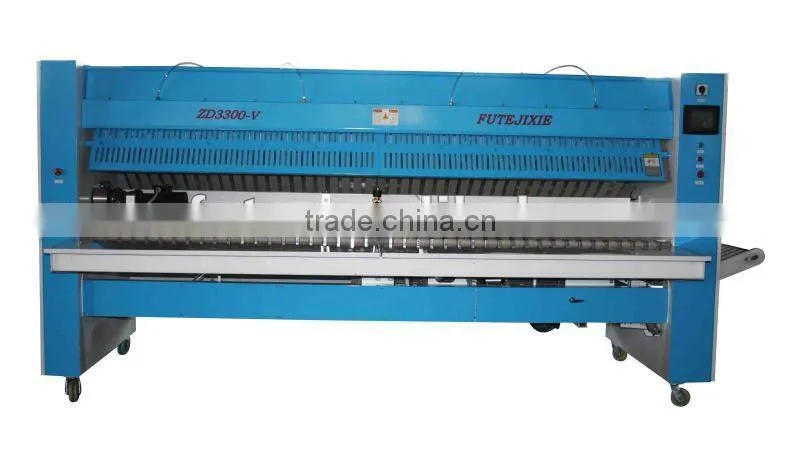

1,Newly developed ZD3000-V automatic folder ,an essential option for flatwork ironer where automatic folding application is necessary .
2,Precision folding capacity ,auto sheet width sensing and advanced intelligent control system makes the equipment simple to operation and yet flexible in application .
3,Equipment with user friendly MHI and operating program software.
4,Two sets of independent motor driver systems each with VFD controller ,folding speed of 30m/min.
5,Total of five folds with two primary folds and three cross folds ..Maximum width of 3300x3300 mm
6,Imported photo-electricity checking and sensor spare parts ,acute and accurate ,aontrol circuitry of
24V low voltage ,safety and reliability ,convenient maintenance.
specification
| Model | ZD3300-v |
| Max Folding width(mm) | 3300x3300 |
| Max folds times/layer | 32/5 |
| Max Folding speed(m/min) | 50 |
| Rated voltage(V) | 380/50Hz |
| Motor Power(kw) | 1.3kw |
| Air consumption (L/min) | 500L/min |
| Pressure power(Mpa) | 0.6 |
| Out size(mm) | 4116x2800x1760 |
| Weight(kg) | 1600 |
