Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > 5 Years Warranty 300*600 CE ROHS Energy Saving 24W Ultra Thin LED Panel Light Lighting With Flicker Free Driver

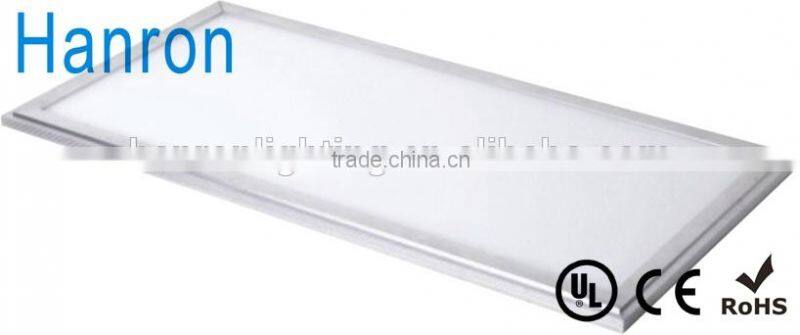

5 Years Warranty 300*600 CE ROHS Energy Saving 24W Ultra Thin LED Panel Light Lighting With Flicker Free Driver

5 Years Warranty 300*600 CE ROHS Energy Saving 24W Ultra Thin LED Panel Light Lighting With Flicker Free Driver thumbnail-1
5 Years Warranty 300*600 CE ROHS Energy Saving 24W Ultra Thin LED Panel Light Lighting With Flicker Free Driver thumbnail-2
5 Years Warranty 300*600 CE ROHS Energy Saving 24W Ultra Thin LED Panel Light Lighting With Flicker Free Driver photo-1
5 Years Warranty 300*600 CE ROHS Energy Saving 24W Ultra Thin LED Panel Light Lighting With Flicker Free Driver photo-2
US$ 26.7 - 31.7 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Certification:
CE RoHS
Type:
LED Panel Light
Contact Supplier Request Quote Chat Now
Shenzhen Hanron Lighting Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE RoHS
Type LED Panel Light

    5 years warranty 300*600 CE ROHS energy saving 24W LED panel light with                                                     Flicker Free driver





5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver

5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver







 1.Features:



*Super bright LED as lighting sources

 *CE&RoHS certificated, meet the requirements of UL SAA,VDE



 *Japanese Imported light diffusion material, mercury and lead free



 *High lumen output, high efficiency, energy saving up to 60%



 *Excellent heat dissipation structure, long lifespan, normal use can reach over 30,000hrs



 *Lead free, eco-friendly

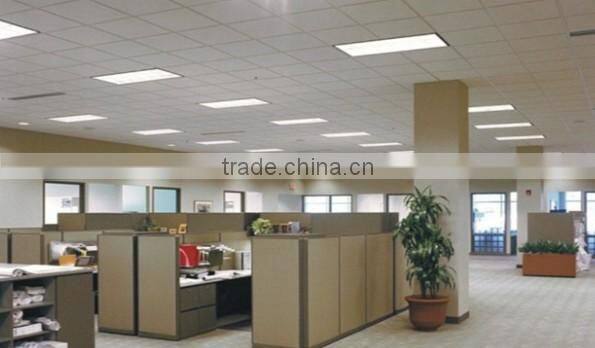

2.Applications:



*  Hotels



* Meeting rooms



* Factories or offices



*Commercial lightings



*Residential or public facilities



*Schools



*Hospitals



*Everywhere for energy-saving and high CRI lighting area



3. Parameter:



Model No.

Wattage
    (W)

 LED Type LED Qty

Voltage
   (V)

  PF

Lumen
  (lm)

  CCT
   (K)

 CRI Beam angle   LED    Driver

 Dimension
    (mm)

   Material

 Lifetime
    (Hrs)
HR12-306024A      24   SMD2835   100  AC100-240V  >0.9  1900

3000K
4000K
5700K

  80  120°

TUV CE&RoHS
Flicker Free

 300x600x8 Alu+PMMA    >50000

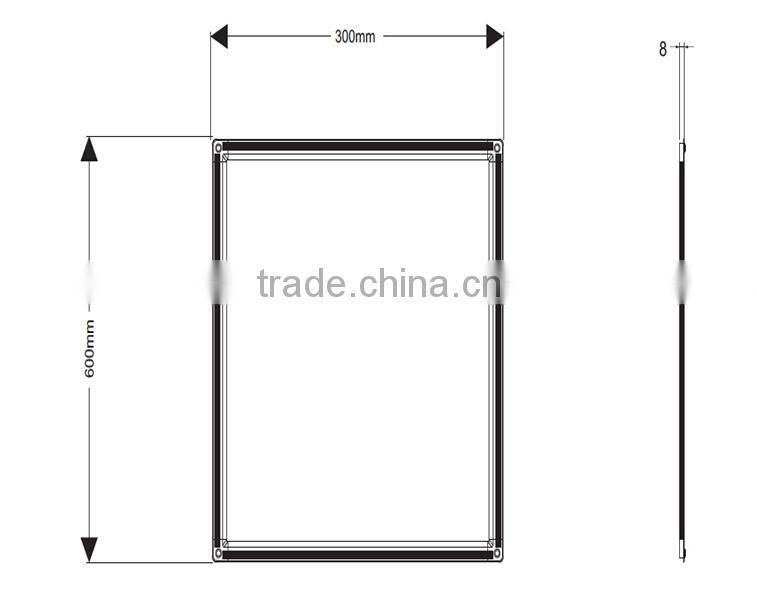

4. Dimensional Drawing(Unit: mm):




5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver

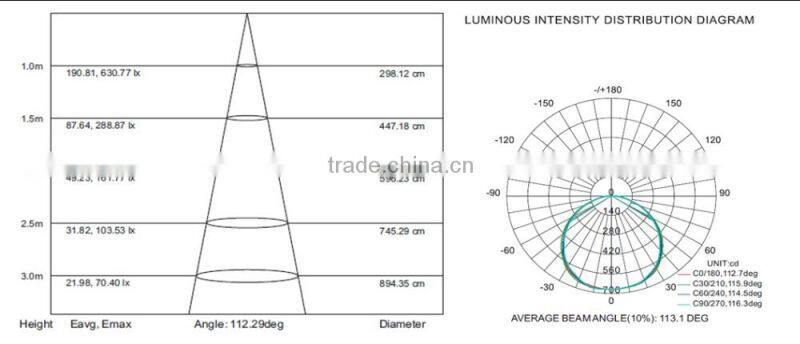

5. Test Report:






5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver

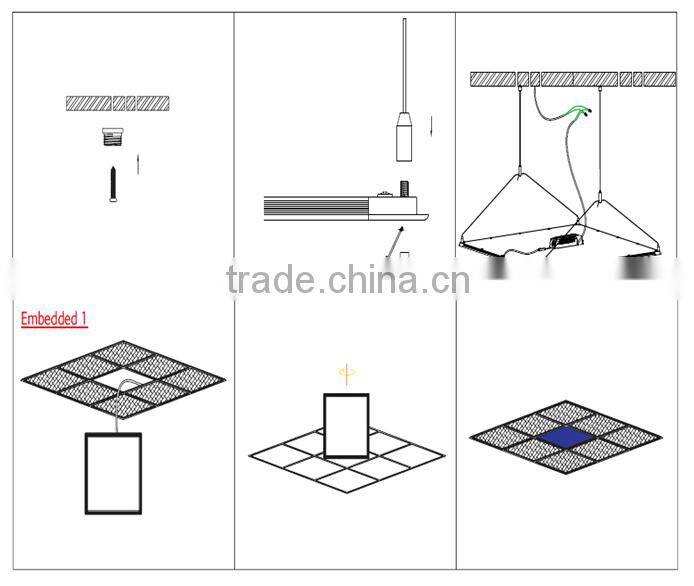

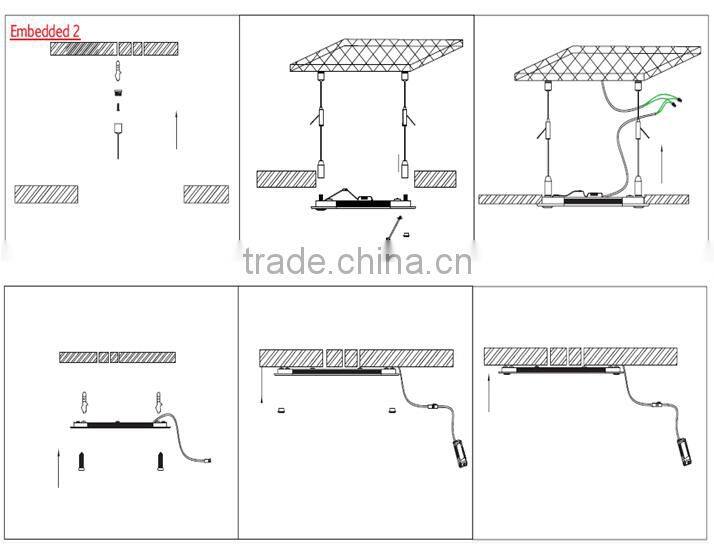

6.  Installation Instruction:



5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver





Note: External power supply has to be installed by yourself. If you purchase power supply from other suppliers, make sure the same voltage and current with the lamp to avoid damaging product. So, we strongly suggest you use compatible power supply professionally designed by us.





7. Packaging:



   * Diagram

5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver





  *Notes







Product Type Outside Carton
 Dimension         (cm)		 Mass Weight/Carton  Inside box
Dimension   (cm)		 Mass Weight
/PCS		 Net weight
/PCS		 QTY
/Carton
300*600 67.5(L)*38(W)*25(H)       12.5KG 66(L)*36(W)*4.3(H)  2.8KG  2.4KG     5







8 Notes:



*When installation, try to avoid them in minefields, strong magnetic field and high-voltage area;



* Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires;



*Install LED in a well-ventilated place to ensure appropriate environmental temperature;



*Please check local voltage in accordance with the product requirements before using the product;



*To prohibit the live wiring, check to confirm the wiring correct, confirm no short-circuit and then power on;



* In case of failures. Don’t maintain it in private.





9. Certificate:



5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver





10. Factory Tour:



 5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver





11. Our Advantage:



5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver

5 years warranty 300*600 CE ROHS energy saving 24W ultra thin LED panel light lighting with Flicker Free driver
