Competitve price LED Panel square light 300x300 mm CE RoSH 3year warranty LED Panel Light Lifud

FOB Price

USD $19.56 - $70 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

LED Light Source:	Epistar SMD2835 LED	Warranty(Years):	3	Input Voltage(V):	AC80-265V
Lamp Power(W):	18	Lamp Luminous Flux(lm):	1400-1600lm LED Panel Light	Lamp Luminous Efficiency(lm/w):	80
Color Temperature(CCT):	Other, 3000K 4000K 5700K	Working Temperature(℃):	-25, 50	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP33	Certification:	C-tick, CCC, CE, CQC, EMC, Energy Star, GOST, GS, LVD, PSE, REACH, SAA, SASO, VDE
Place of Origin:	Guangdong, China	Brand Name:	Hanron	Model Number:	HR12-303018B

Product Description

Competitve price LED Panel square light 300x300 mm CE RoSH 3year warranty LED Panel Light Lifud

Features:

1. Super bright LED as lighting sources

2. CE&RoHS certificated, meet the requirements of UL SAA,VDE

3. Japanese Imported light diffusion material, mercury and lead free

4. High lumen output, high efficiency, energy saving up to 60%

5. Excellent heat dissipation structure, long lifespan, normal use can reach over 30,000hrs

6. Lead free, eco-friendly

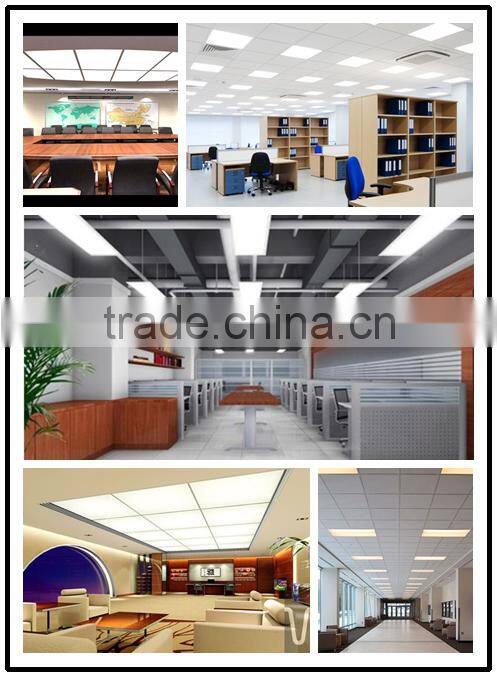

Application:

1. Hotels

2. Meeting rooms

3. Factories or offices

4. Commercial lightings

5. Residential or public facilities

6. Schools

7. Hospitals

8. Everywhere for energy-saving and high CRI lighting area

Optical Parameters:

Model No.	Wattage (W)	LED Type	LED Qty	CCT (K)	CRI	Beam angle	Luminous flux (lm)
HR12-30301830B	18W	SMD2835	96	3000K	80	120°	1400-1600
HR12-30301840B	18W	SMD2835	96	4000K	80	120°	1400-1600
HR12-30301857B	18W	SMD2835	96	5700K	80	120°	1400-1600
HR12-30303030B	30W	SMD2835	192	3000K	80	120°	2200-2500
HR12-30303040B	30W	SMD2835	192	4000K	80	120°	2200-2500
HR12-30303057B	30W	SMD2835	192	5700K	80	120°	2200-2500

Electric parameters:

Model No.	Wattage (W)	Voltage (V)	PF	Dimmable or Not	LED Driver	Material	Lifetime (Hrs)
HR12-30301830B	18W	AC80-265V	>0.9	Non-DIM	CE&RoHS Flicker Free	Alu+PMMA	50,000
HR12-30301840B	18W	AC80-265V	>0.9	Non-DIM	CE&RoHS Flicker Free	Alu+PMMA	50,000
HR12-30301857B	18W	AC80-265V	>0.9	Non-DIM	CE&RoHS Flicker Free	Alu+PMMA	50,000
HR12-30303030B	30W	AC80-265V	>0.9	Non-DIM	CE&RoHS Flicker Free	Alu+PMMA	50,000
HR12-30303040B	30W	AC80-265V	>0.9	Non-DIM	CE&RoHS Flicker Free	Alu+PMMA	50,000
HR12-30303057B	30W	AC80-265V	>0.9	Non-DIM	CE&RoHS Flicker Free	Alu+PMMA	50,000

Dimensional Drawing(Unit: mm):

Test Report

Installation Instruction:

Note: External power supply has to be installed by yourself. If you purchase power supply from other suppliers, make sure the same voltage and current with the lamp to avoid damaging product. So, we strongly suggest you use compatible power supply professionally designed by us.

Notes:

1. When installation, try to avoid them in minefields, strong magnetic field and high-voltage area;

2. Ensure a solid connection correctly in order to avoid short-circurt damage to components and trigger fires;

3. Install LED in a well-ventilated place to ensure appropriate environmental temperature;

4. Please check local voltage in accordance with the product requirements before using the product;

5. To prohibit the live wiring, check to confirm the wiring correct, confirm no short-circuit and then power on;

6. In case of failures. Don’t maintain it in private.

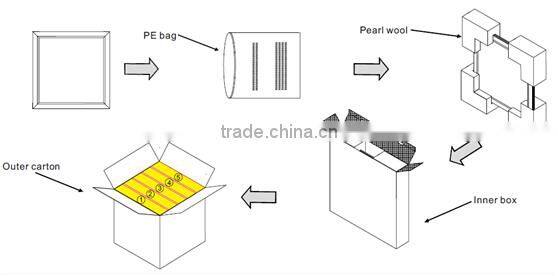

Packaging:

1.Diagram

2.Notes:

Product Type	Outside Carton dimension(cm)			Mass Weight/Carton	Inside box dimension(cm)			Mass Weight /PCS	Net weight /PCS	QTY /Carton
Product Type	Length	Width	Height	Kg	Length	Width	Height	Kg	Kg	QTY /Carton
300*300	42	42	32	8	40.5	40.5	5.5	1.5	1.2	5
