China 40-60TPH Small Gravel Crusher Line

Specifications

Gravel Crusher Line
1.Reliable performance and convenient maintenance
2.Customized production and flexible configuratio

   China 40-60TPH Small Gravel Crusher Line



Zoonye small gravel crusher line is designed based on the conception of fully adapting various crushing condition,40-60TPH (output 40-60 ton per hour) small stone crusher line features for its efficient automatic production, simple operation & installation, well-crushed stone shape and economical consumption. Changeable screen meshes enable you to get various finished stone sizes which are applicable for manifold construction industry.
40-60TPH is small gravel crusher line, single equipment is movable to be operated in different mining sites. It is best choice for Medium-small scope business investment.

Wide applications of small Gravel Crusher Line

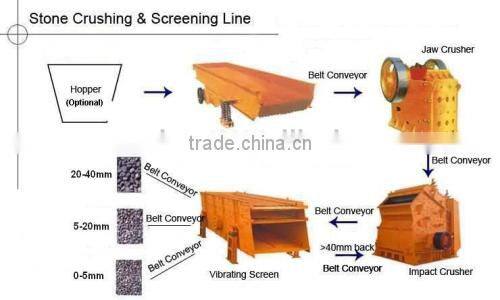

According to different customers’ requirements, stone crushing plant can be operated as two-stage crushing plant with primary and secondary crushing, or as three-stage crushing plant with primary, secondary, and tertiary crushing. Likewise, portable crushing plant can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.

Reliable performance and convenient maintenance
40-60TPH small gravel crusher line adapt excellent quality crusher, screen and feeder made from Zoonye Industrial Company, yet the quality is stable and reliable. Normal belt conveyor can be used for conveyance of material, which is of mature technology, simply operation, easy maintenance, and low investment.



Customized production and flexible configuration
We can provide special gravel crusher line based on customers’ site, material, and particle shape requirements, etc. Such as self-load belt conveyor, multiple machines combined type, single machine type and so on.



 Main Specification of 40-60TPH Small Gravel Crusher Line





Vibrating Feeder GZD850X2300





Max Feeding Size: ≤400mm

Power: 3.7 x 2 kw





Jaw Crusher PE-500 X 750

Max Feeding Size: ≤425mm





Power: 55kw



Impact Crusher PF-1010



Max Feeding Size: ≤350mm





Power: 55kw





Vibrating Screen 3YK1548





Sep1=40mm Sep2=20mm Sep3=5mm



 Power: 15kw





Auxiliary Components





Belt Conveyor



B500 X 15M



B500 X 18M



B500 X 20M



B50 X 15M



B50 X 15M



B50 X 15M



Control system



Electronic Control Cabinet





China 40-60TPH small gravel crusher line for sale
