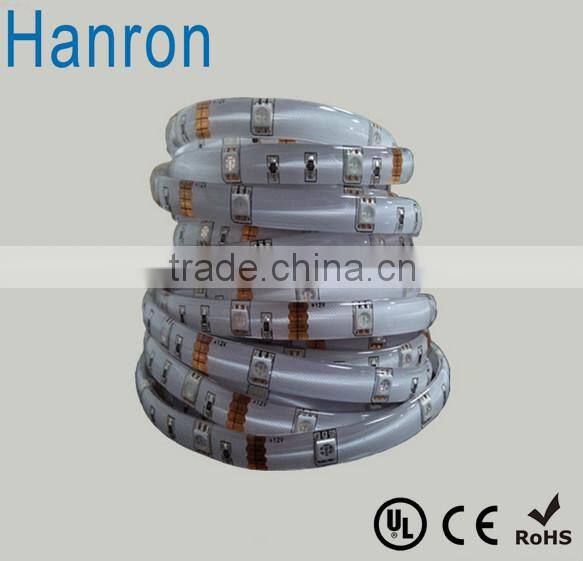

3 years warranty IP65 sicilon glue waterproof 12v /24v smd 5050 rgb led flexible light strip

3 years warranty IP65 sicilon glue waterproof 12v /24v smd 5050 rgb led flexible                                                          light strip

1.Features:

* 5050 RGB  color

* Size:1000*10mm

* Beam Angle:120 °

* LED:30leds/m

* 200MP 3M tape in the back

* Working Voltage :DC12V

* Working Current : 60 mA/ Group

* Power:7.2W/M

* CE&RoHS Certificated

* Black/white/yellow FPC are optional

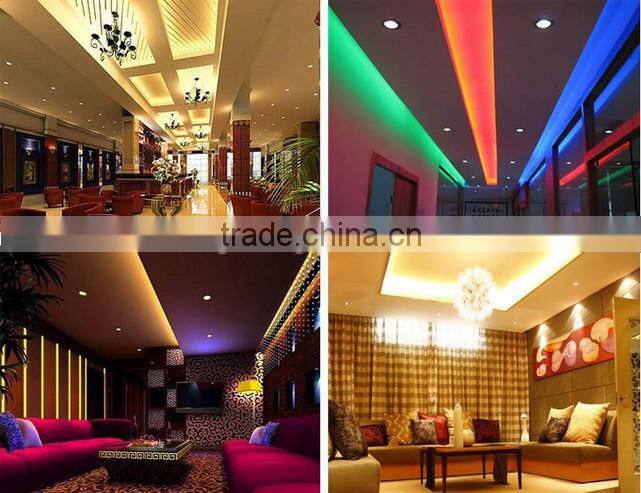

2.Applications:

* Cove lighting

* Architectural lights for canopy, corridor, window, archway

* Backlight or edge lighting for signage

* DIY lights for home use

* Path and contour marking

* Decorative lights for holiday, event, show, exhibition

* Special light effect for art gallery and glass-made items

3. Parameter

 4. Dimension

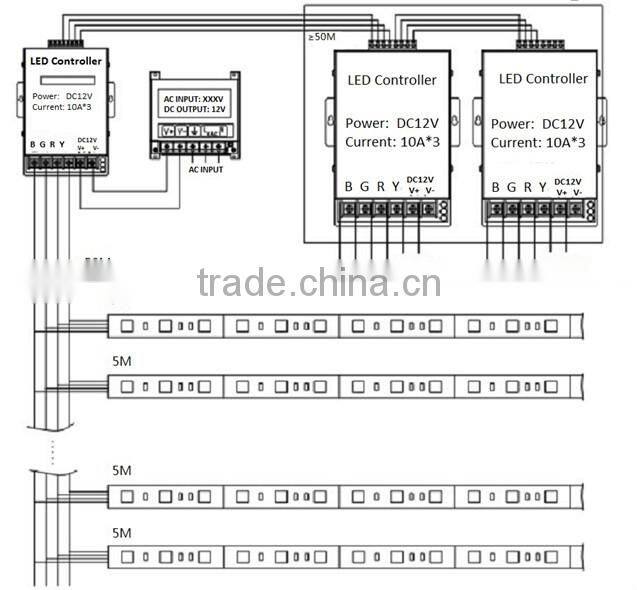

5.Connect Drawing

6. Package

7.Notes

1. Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 12V before power supply concatenation,working voltage is 12V, Wrong voltage concatenation will cause permanent damage.

2. Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.

3. Ensure cable outlet of strip to be waterproof

4. Prohibit touching and operating with static.

5. Please use qualified SMPS with short circuit protection S.O.P. certificate.

6. Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and low voltage    transmission cable.

7. Don’t hit,squeeze strip, don’t bend strip overly

8. Ensure installed surface tidy, clean and dry.

9. Avoid rain and mechanical vibration.

10. Place SMPS in ventilated and dry environment.

11. Usually only80-90% of SMPS total power is consumed
