Glue Filling Waterproof Smd 3528 LED Strip Epistar DC24V Cold White 120leds LED Strip Lights Lighting LED
US$ 1 - 10
MOQ: 200 Meters
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD 3528 LED
Type:
Flex LED Strips
Input Voltage(V):
DC 24V lights LED
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Line 120LED/M IP20 28.8W/M SMD 5050 Led Flexible Strip Light Bar 24V 5050US$ 6 - 6.8MOQ: 200 Meters -
IP20 Non Waterproof 24V Smd 5050 Double Line 120led/m Led Flexible Strip Light Bar 28.8W/M With High LumensUS$ 6 - 6.8MOQ: 200 Meters
-
120LED/M Double Line RGB Color IP20 Non Waterproof Smd 5050 Led Flexible Strip Light Tape Bar 24VUS$ 7 - 7.35MOQ: 200 Meters
-
Double Line IP65 PU Glue Waterproof 120led/m 5050 Smd Led Flexible Strip Light 24V With Single ColorUS$ 7.4 - 7.55MOQ: 200 Meters
-
28.8W/M 600 Led IP65 2700K 2800K 4000K 4500K Blue RED Smd 5050 Double Line Row Led Flexible Strip 120LED/M 4000 5000 6000 KelvinUS$ 7.4 - 7.55MOQ: 200 Meters
LED Light Source
Epistar SMD 3528 LED
Type
Flex LED Strips
Input Voltage(V)
DC 24V lights LED
Lamp Power
9.6W Per Meter LED Strip Light
Lamp Luminous Flux(lm)
7-8lm Per LED
Color Temperature(CCT)
2400K-12000K
Working Temperature(℃)
-40, 50
Working Lifetime(Hour)
30000
Lamp Body Material
Copper
Certification
CE, EMC, Energy Star, FDA, GOST, PSE, REACH, UL
Emitting Color
Cold White
Place of Origin
Guangdong, China
Brand Name
Hanron lighting
Model Number
HR00-A24FWW120PA

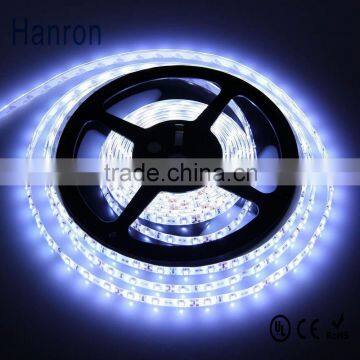

Glue Filling Waterproof smd 3528 LED Strip Epistar DC24V Cold White 120leds LED strip light lighting
SMD3528 LED Strip Specification:
| Item NO. | HR00-A24FW120PA |
| Voltage | 24V |
| Power | 9.6W/Meter |
| Led number | 120leds/Meter |
| CCT | 5000-6500K |
| Color | Cold White |
| IP Grade | IP68 Glue Filling Waterproof |
| Certificate | CE&RoHS |
| Warranty | 5Year |
Features:
TOP SMD3528 chip, high brightness, wide beam angle, low decay.
Low power consumption, long life span, free maintenance
Easy to install for any bending
Storage temperature:-50℃ - 60℃
Working temperature: -40℃ - 50℃
Certification: CE & RoHs
Application:
- Cove lighting
- Backlight or edge lighting for signage
- Path and contour marking
- Architectural lights for canopy, corridor, window, archway
- Special light effect for art gallery and glass-made items
- Path and contour marking
- DIY lights for home use
Parameter
| Item NO. | Description | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level | Size |
| Angle | (mm) | ||||||
| HR00-A24AWW120PA | Non-Waterproof SMD3528 120LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP20 | 5000*10*2mm |
| HR00-A24ANW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A24AW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A24AR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A24AY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A24AB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A24AG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A24DWW120PA | Silicone Waterproof SMD3528 120LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP65 | 5000*10*2.2mm |
| HR00-A24DNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A24DW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A24DR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A24DY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A24DB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A24DG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A24EWW120PA | Silicone Tube Waterproof SMD3528 120LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP67 | 5000*10*3.8mm |
| HR00-A24ENW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A24EW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A24ER120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A24EY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A24EB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A24EG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A24FWW120PA | Glue Filling Waterproof SMD3528 120LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP68 | 5000*10*3.8mm |
| HR00-A24FNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A24FW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A24FR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A24FY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A24FB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A24FG120PA | Green | 520-530nm | 484LM±10% |
Dimension
Connect Drawing
Installation
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
