HV ABC Cable, Aerial Bundled Cable, Non Metallic, 6.35/11 kV (AS/NZS 3599.2) Non Metallic Screened HV ABC
Conductors Phase conductors are stranded circular compacted aluminium alloy 1350 to H68 condition. The standard catenary is bare stranded circular compacted aluminium alloy 1120 conductor. For special applications, such as high wind locations, aluminium-clad steel-reinforced catenaries are available.
Conductor Screen, Insulation and Insulation Screen Semiconductive conductor screen, XLPE insulation and semiconductive insulation screen are triple extruded. The insulation screen is hand strippable without preheating and complies with strippability and adhesion tests given in AS/NZS 3599.2. Figures and words "1 ONE," "2 TWO" and "3 THREE" are marked on the insulation screen to identify the three phase cores.
We has developed a special Non Metallic Screened HV ABC with far greater resistance to damage from abrasion during installation or due to brushing with trees. This special cable has a semiconductive HDPE layer over the hand-strippable insulation screen, providing less risk of damage during installation and service.
The cable bundle The three single core cables are bundled around the aluminium alloy 1120 catenary in a right hand lay. Operating temperatures (a) Normal operation 90°C (b) Emergency operation 105°C (c) Short circuit operation 250°C (5s max)
| AS/NZS-3599.2 | ||||||||
| Units | 6.35/11 KV | |||||||
| Nominal Conductor Area | mm2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Average Insulation Thickness | mm | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Average Insulation Screen Thickness | mm | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| AAAC/1120 Support Conductor Size | no/mm | 7/4.75 | 7/4.75 | 7/4.75 | 7/4.75 | 19/3.50 | 19/3.50 | 19/3.50 |
| Nominal Overall Diameter | mm | 48.4 | 50.7 | 53.9 | 57.3 | 63.3 | 66.2 | 69.2 |
| Approx. Mass | kg/km | 1170 | 1320 | 1560 | 1860 | 2280 | 2570 | 2890 |
| DC Resistance at 20°C | Ω/km | 0.868 | 0.641 | 0.443 | 0.320 | 0.253 | 0.206 | 0.164 |
| AAAC/1120 Support Conductors | ||||||||
| Units | ||||||||
| Stranding & Nom. Wire Dia. | no/mm | 7/4.75 | 19/3.50 | |||||
| Nominal Overall Diameter | mm | 14.3 | 17.5 | |||||
| DC Resistance at 20°C | Ω/km | 0.239 | 0.163 | |||||
| Minimum Breaking Load | kN | 27.1 | 41.7 | |||||
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?

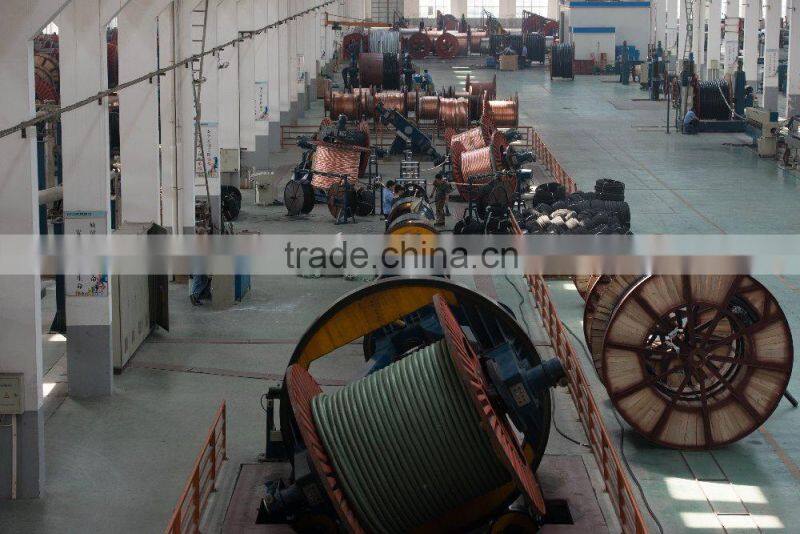

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
