Help CenterAlfalfa/wood Pellet Molding Machine
Related Products
Specifications
1.higher safety and efficiency2.energy saving
3.easy operation
Alfalfa/wood pellet molding machine
1).Principle of work:
Based on the circular motion,motor or diesel engine powercause the clamping roller rotation under the friction force function.
Under the pressure of clamping roller,raw material is squeezed from the die hole.
Adjusting the cutter to change the pellets length and after flings the material plate to arrive the discharge hole.
2).Main features
1. The diesel wood pellet mill with two rollers, they are generally for home use.
2. Diesel wood pellet mill can be driven by diesel or motor.
3. Diesel wood pellet mill invest the low cost, and get the quicker profit, they are better for dealing with the life waste, and make the pellets as the fuel at home.
3) main specification
model |
Output(kg/h) |
Power(kw) |
Size of pellet(mm) |
Packing size(mm) |
Weight(packaged)(kg) |
SKJ200 |
100 |
15 |
6 |
1200*850*900 |
450 |
SKJ250 |
150 |
22 |
6 |
1350*850*900 |
550 |
SKJ300 |
200 |
32 |
6 |
1500*850*1000 |
680 |

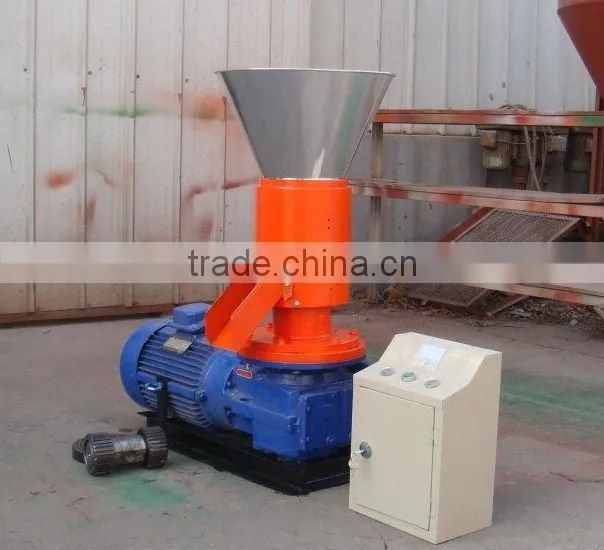

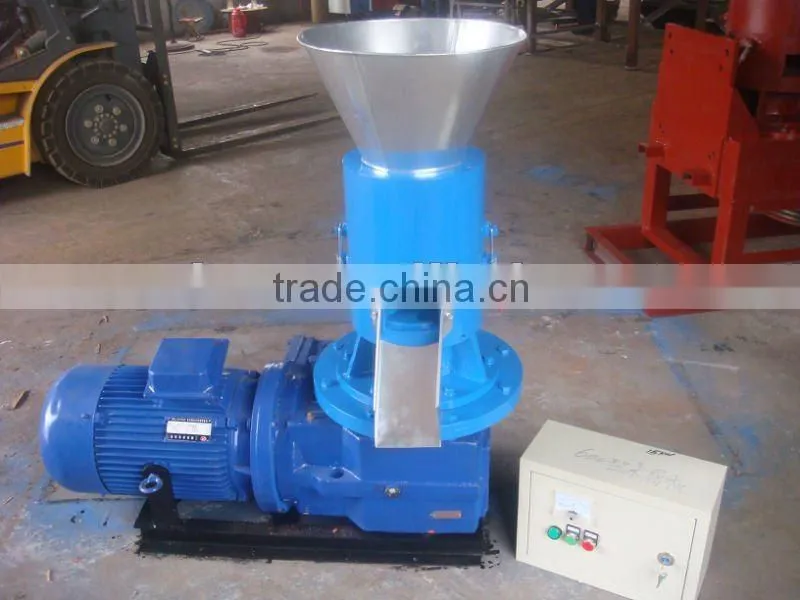

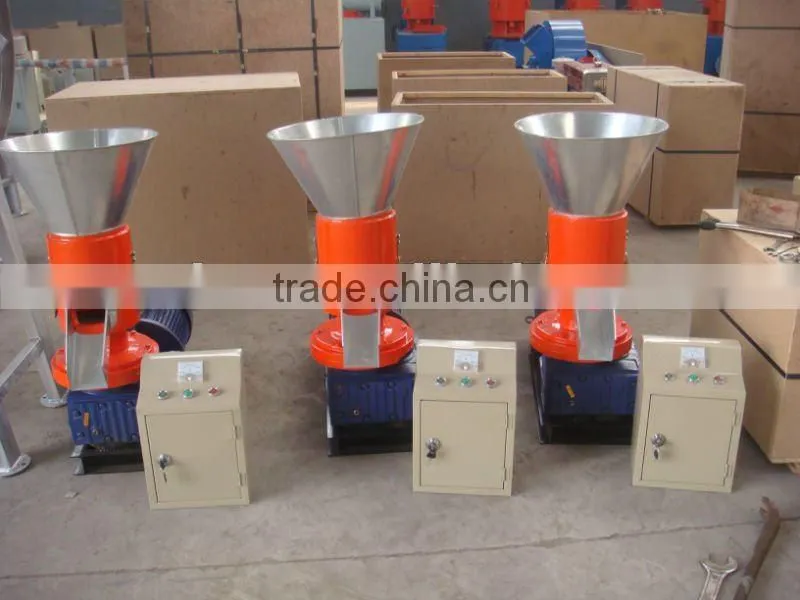

4) Real machines pictures

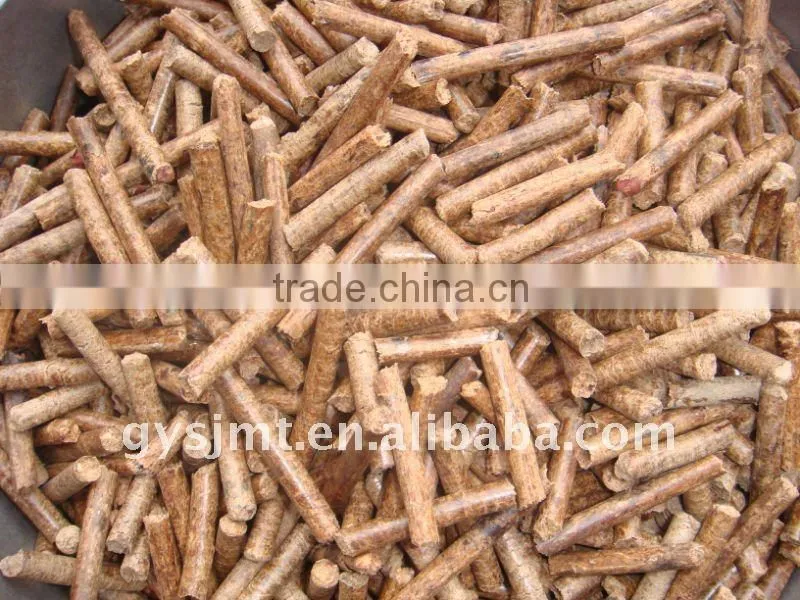

5) Final pellets
Please contact :
