NAYY, LV Power Cable, 0.6/1 KV, Al/PVC/PVC (DIN VDE 0276-603/HD 603)
US$ 0.2 - 6.5
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DingAn
Model Number:
NAYY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stranded Conductor Type and Copper Conductor Material Single Core Xlpe CableUS$ 0.5 - 2MOQ: 100 Meters -
Cu/XLPE/PVC Power Cable for Underground 0.6/1 Kv 1core -5 CoreUS$ 1 - 3MOQ: 100 Meters
-
YKSY, Low Voltage Power Cable, 0.6/1 KV, Cu/PVC/PVC/PVC (IEC 60502-1/HD 603)US$ 0.3 - 15MOQ: 100 Meters
-
CU/PVC, Unsheathed V-90 Single Cable, 0.6/1 KV, 1/C (AS/NZS 5000.1)US$ 0.1 - 15MOQ: 100 Meters
-
Cu XLPE PVC Urd LV Power Cable 0.6/1 Kv 4/C AS/NZS 4026US$ 1 - 20MOQ: 100 Meters
Place of Origin
Jiangsu, China
Brand Name
DingAn
Model Number
NAYY
Insulation Material
PVC
Type
Low Voltage
Application
Underground
Conductor Material
Aluminum
Jacket
PVC
Product Description
NAYY, Power Cable, 0.6/1 KV, AL/PVC/PVC (DIN VDE 0276-603/HD 603)
Underground cable with PVC insulation and PVC sheath
Structure
1 Aluminium conductor, round solid (RE), sector-shaped solid (SE), round stranded (RM), resp. sector shaped stranded (SM)
2 Core insulation (PVC)
3 Inner covering (EPDM)
4 Sheath (PVC black, UV-resistant)
Application
Application
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fixed installation underground, in interior premises, cable ducts, in the open air, in water - as permitted by the local building regulations - if no risk of any mechanical damage is to be expected.
Technical Data
Standard:
DIN VDE 0276-603 (HD 603)
Rated voltage:
0.6/1 kV
Test voltage:
4 kV/50 Hz
Temperature range:
laying temperature: min. -5 °C
operating temperature: -50 °C up to +70 °C
conductor temperature: max. +70 °C
short-circuit temperature: max. +160 °C/5 s
Bending radius (min.):
15 x φ of cable (single core)
12 x φ of cable (multi-core)
Core identifi cation:
HD 308 S2
Fire properties:
fl ame retardant:
EN 60332-1-2
| Number of cores x nominal cross section | Max. conductor resistance | Current rating in the ground1) | Current rating in the air1) | Outer diameter | Total weight |
| (mm²) | (Ω/km) | (A) | (A) | (mm) | (kg/km) |
| NAYY | |||||
| 1 x 25 RM | 1.200 | 160 | 110 | 12.6 | 210 |
| 4 x 25 RE | 1.200 | 102 | 82 | 25.5 | 990 |
| 4 x 25 RM | 1.200 | 102 | 82 | 26.7 | 1,040 |
| 1 x 35 RM | 0.868 | 193 | 135 | 13.6 | 260 |
| 4 x 35 RE | 0.868 | 123 | 100 | 27.8 | 1,130 |
| 4 x 35 RM | 0.868 | 123 | 100 | 29.3 | 1,180 |
| 1 x 50 RM | 0.641 | 230 | 166 | 15.3 | 335 |
| 4 x 50 SE | 0.641 | 144 | 119 | 31.9 | 1,300 |
| 4 x 50 SM | 0.641 | 144 | 119 | 34.4 | 1,360 |
| 1 x 70 RM | 0.443 | 283 | 210 | 16.9 | 425 |
| 4 x 70 SE | 0.443 | 179 | 152 | 36.1 | 1,740 |
| 4 x 70 SM | 0.443 | 179 | 152 | 38.0 | 1,820 |
| 1 x 95 RM | 0.320 | 340 | 259 | 19.1 | 540 |
| 4 x 95 SE | 0.320 | 215 | 186 | 40.3 | 2,240 |
| 4 x 95 SM | 0.320 | 215 | 186 | 43.0 | 2,340 |
| 1 x 120 RM | 0.253 | 389 | 302 | 20.6 | 610 |
| 4 x 120 SE | 0.253 | 245 | 216 | 43.5 | 2,660 |
| 4 x 120 SM | 0.253 | 245 | 216 | 46.6 | 2,780 |
| 1 x 150 RM | 0.206 | 436 | 345 | 22.3 | 745 |
| 4 x 150 SE | 0.206 | 275 | 246 | 47.7 | 3,120 |
| 4 x 150 SM | 0.206 | 275 | 246 | 50.4 | 3,260 |
| 1 x 185 RM | 0.164 | 496 | 401 | 24.6 | 925 |
| 4 x 185 SE | 0.164 | 313 | 285 | 52.7 | 4,170 |
| 4 x 185 SM | 0.164 | 313 | 285 | 57.0 | 4,360 |
| 1 x 240 RM | 0.125 | 578 | 479 | 27.5 | 1,210 |
| 4 x 240 SE | 0.125 | 364 | 338 | 58.2 | 5,150 |
| 4 x 240 SM | 0.125 | 364 | 338 | 63.2 | 5,380 |
| 1 x 300 RM | 0.100 | 656 | 555 | 30.6 | 1,440 |
| 1 x 400 RM | 0.078 | 756 | 653 | 33.2 | 1,850 |
| 1 x 500 RM | 0.061 | 873 | 772 | 37.7 | 2,190 |
| 1 x 630 RMn * | 0.047 | 1,011 | 915 | 43.5 | 2,700 |

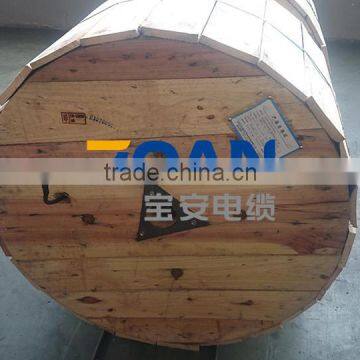

Packaging & Shipping
