Specifications
rotary sieve(1)Good design!
(2)Resonable price!
(3)High efficiency!
(4)Lower labor intensity

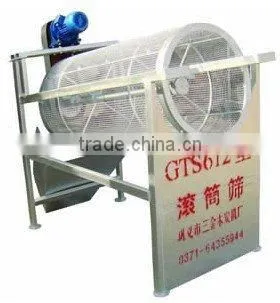

Product item:rotary sieve
Product specification:
Working Principle:
screener is a kind of screening equipment which takes the powder, nubby, uncrushed or impurity material out of the raw material. The working principle: electric motor transfer the power to main drive shaft through vee belt, then main drive shaft drive the sifter net to whirl to pick the nubby and impurity up so as to ensure the safety and effective production in the briquetting course.
Structural features:
1. Tactical diameter is large, feed quickly, driven rotation of small diameter, less power.
2. Screen stencil and body are connected with rigidity, the concentricity is high, and machine is stable.
3. V-belt drive, smooth operation, low noise.
4. Based on customer needs, we design two kinds of models: manual feeding and conveyor feeding.
Technical data:
Product |
Model |
Feeding type |
Power (KW) |
Capacity (T/h) |
dimension(m) |
Sieve pore(mm) |
Sifter |
GTS612 |
Manual feeding |
0.75-4 pole |
1—2 |
1.6X0.8X1.3 |
7X7 |
GTS612 |
Automatic feeding |
0.75-4 pole |
1—2 |
1.6X0.8X1.8 |
7X7 |
The color is very appeal!
