Help CenterMD-S828E Radial Direction Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure Switch Quality Choice
Related Products
-
MD-S828Z Axial Direction Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece -
MD-S600 Water, Oil, Gas Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S650 Water, Oil, Gas Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S700 Water, Oil, Gas Mechanicall Pressure Switch Quality Choice Most PopularUS$ 1 - 100MOQ: 1 Piece
-
MD-A Air Conditioning Pressure Transmitter Quality ChoiceUS$ 1 - 100MOQ: 1 Piece

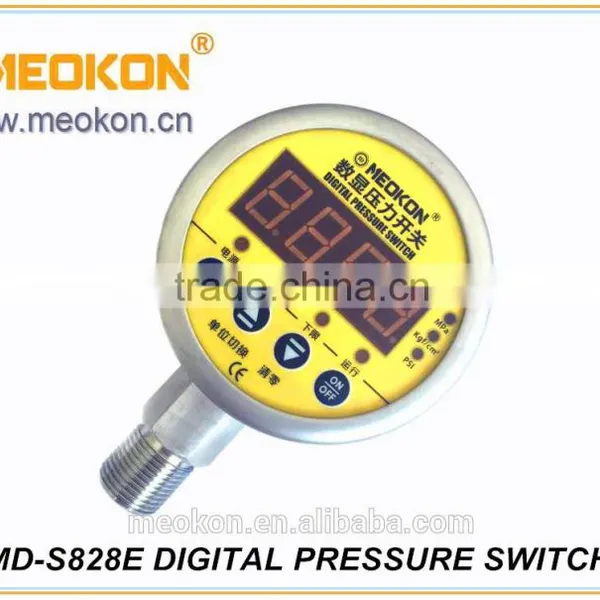

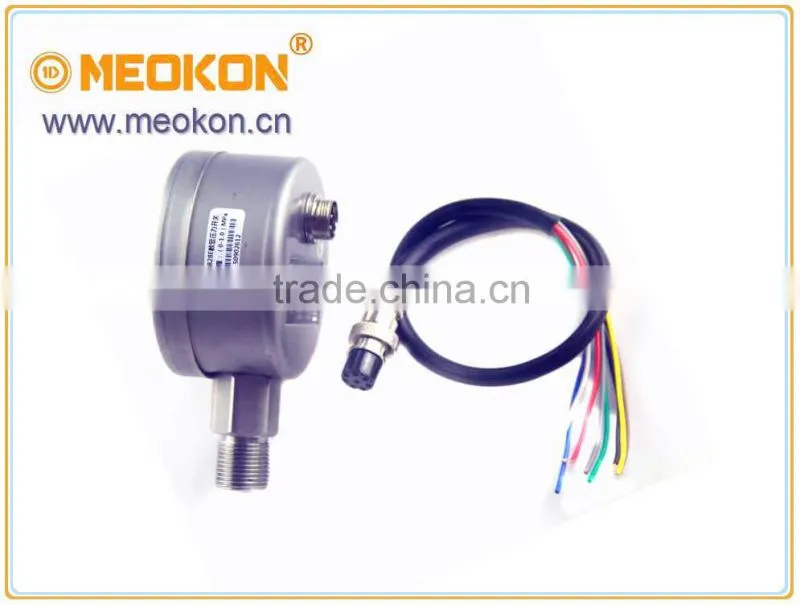

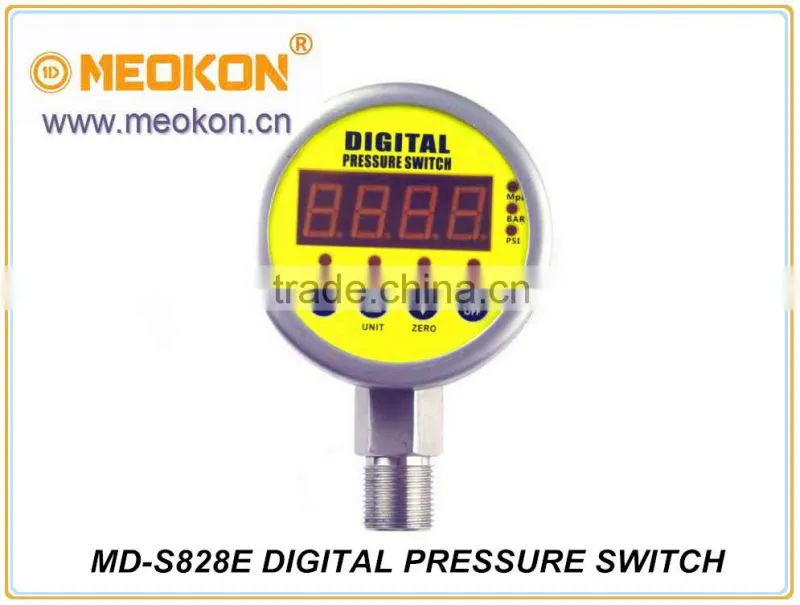

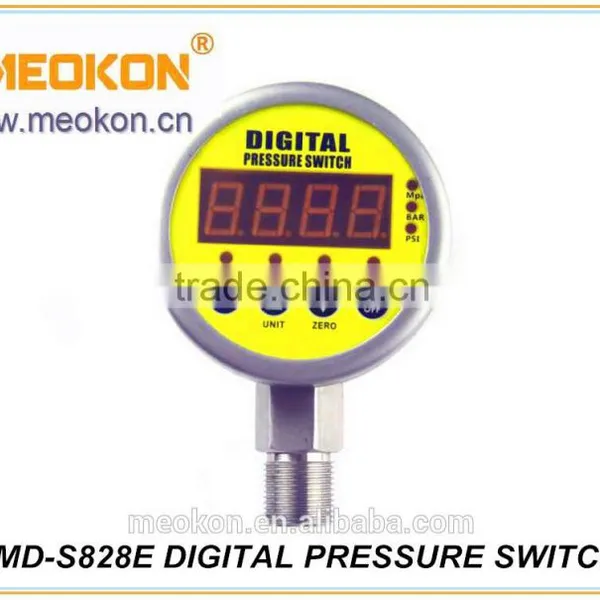

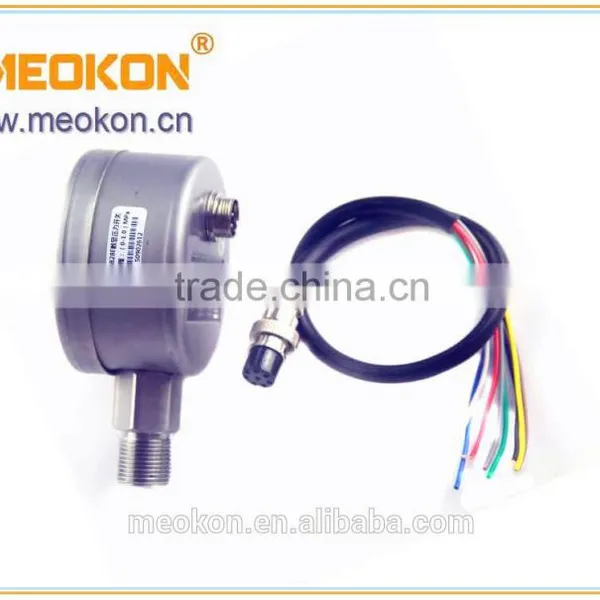

MD-S828E is a intelligent digital pressure switch, setting pressure measurement, pressure display, control in one professional unit. It can be set two group NO/NC alarm points and also achieve two group high and low pressure control. “One key to zero clearing” and “three pressure unit to change” are available.
We pay more attention to the stability of circuit with anti-electromagnetic interference, cells lightning protection and electronic protection. The shell and connector are 304SS.
FEATURES:
- 80mm diameter, all 304SS shell

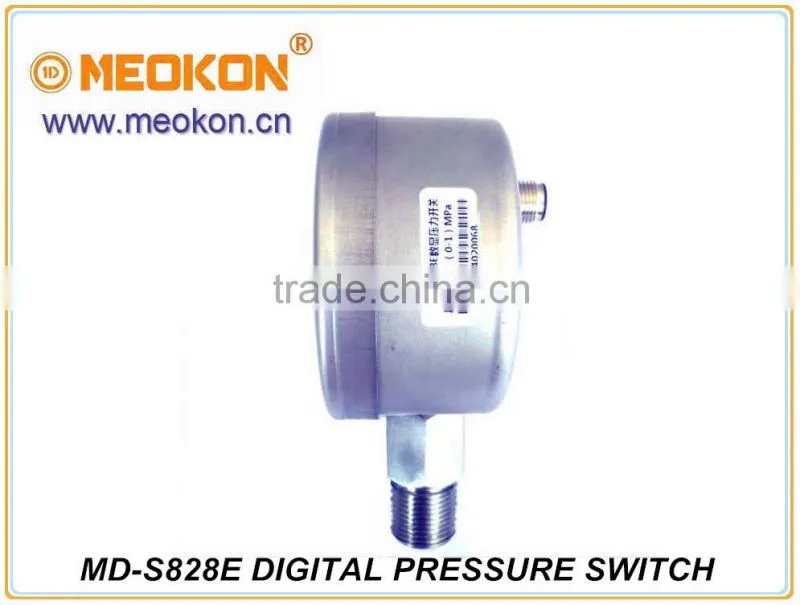

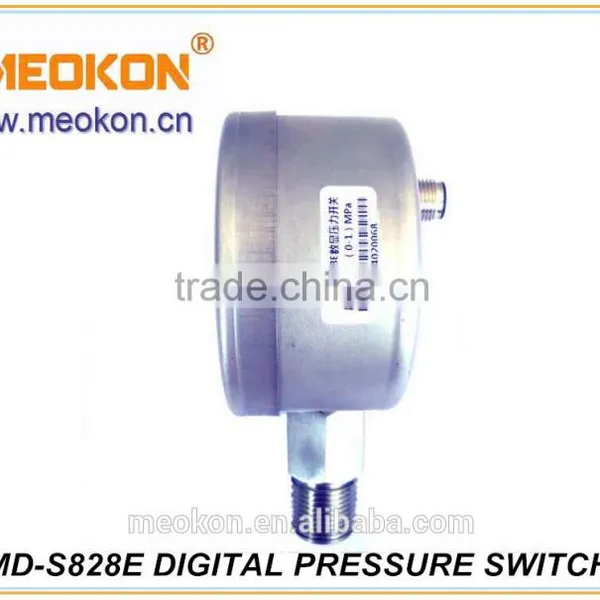

- Radial direction mounting available
- Different pressure units available(Mpa, Psi, Kgf/cm2), one key to zero clearing
- Double relay output signal, each group with NO/NC, returning difference be set independent
- Multiple connection modes, be used as controller, switch, digital electro connecting pressure gauge
SPECIFICATION
| Range |
General Range: 0-0.2...1...1.6...5...10...25...40...60...160Mpa Micro Range:0-5...10...25...40...60...100Kpa Negative Range:-100 ~0Kpa(-0.1 ~0Mpa) |
| Over Pressure | Range≥10Mpa 150%; Range<10Mpa 200% |
| Acc. | ±0.5%FS |
| Alarm Point | Alarm point be set discretionarily within the range. |
Alarm Type |
Double relays output signal(NO/NC) |
| Operating Temperature | -20~ 80℃ |
| Compensation Temperature | -10 ~70 ℃ |
| Electric Protection | Reverse protection, anti-electromagnetic interference |
| Sampling Frequency | 5 times/sec |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
| Connector Material | 304SS |
| Shell | 304SS |
| Supply | 24VDC, 220VAC, 380VAC |
| Weight | 0.35Kg |
APPLICATION
Medical equipment
Machine automation
Source and water treatment system
- Medical equipment
- Testing jig
Hydraumatic and pneumatic system
Agricultural machinery
Pump&compressor
Engineering machinery

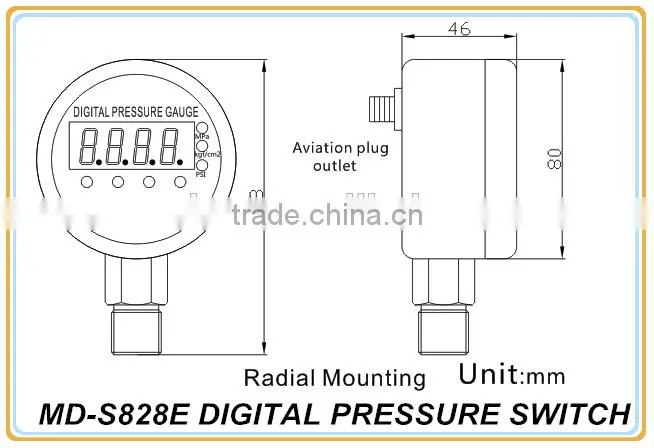

DIMENSION
Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!
