Help Center2016 Newest a4 uv Printer Digital uv Flatbed Printer uv Printer Quality Choice
Related Products
-
Factory Price a4 uv Printer Case Printer uv PrinterUS$ 2,200 - 2,500MOQ: 1 Set -
Galaxy-Jet UV Flatbed PrinterUS$ 6,000 - 10,000MOQ: 1 Set
-
Sales for DOUBLE Printing Head UV Eco Solvent Flatbed PrinterUS$ 6,000 - 10,000MOQ: 1 Set
-
Sales for Galaxy-Jet Big Printing Size UV Flatbed PrinterUS$ 6,000 - 10,000MOQ: 1 Set
-
Special Price A4 Printer Cover Flatbed uv Printer uv PrinterUS$ 2,200 - 2,500MOQ: 1 Set
A4 uv printer belongs to Sapphire-Jet which is a multi functional LED UV flatbed printer that created by Focus industrial co.,ltd. A4 uv printer was built with industrial configuration as thicken aluminum profile, water cyculation cooling system, 100W automatic detect UV Curing system... 6 color and max. 5760 dpi printing resolution. Can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing result...
Specification
A4 uv printer
| Model | Sapphire-Jet |
|
| LED-UV Function | UV lamp system | 6 Power degree adjustable system |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| UV light wavelength | 390-400nm | |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | FocusRIP-UV V3.5.0 | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |
| Ink system | Ink damper refill system | |
| Max. printing size | A4+: 210mm*300mm | |
| Print head | L800 with 1440 nozzles | |
| Print color | CMYK+WW | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A4(1440dpi)/ 80s | |
| Max. media thickness | 15CM | |
| Max. media weight | 15KG | |
| Max. printing resolution | 5760dpi*1440dpi | |
| Ink volume | 150ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 75W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working enviroment | 25-30C, 50% Humidity, Dust free | |
| Net weight/Gross weight | 40KG/50KG | |
| Printer size | 60CM*48CM*50CM | |
| Packing size | 70CM*58CM*55CM | |
Catalog download
Catalog download of A4 uv printer :
Video Demo
Online video demo of A4 uv printer: http://youtu.be/lyJm4KXnGmQ
Technical features
1. A4 uv printer has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.
2. Fast printing speed by print on A4 size with full color of A4 uv printer only need 64 seconds.
3. Super table size of A4 uv printer printer ensure you can print on any media with max. 21*30cm printing area.
4. Thicken aluminium profile made as the keel of the machine to ensure the machine stable working.
5. Support max. material thickness 15cm. expand more printing area for customer.
6. Modularized design of the flatbed of to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.
7. Intelligent Anti-Scratch-Protectionsystem can detect the media by both red ray sensors to prevent the print head from scratching. And ball screw design can make printing resolution much higher and printing more stable.
8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate the machine more convinence
9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion data to mainboard for Interpolating, combine wiht the closed-loop structure circuit design to enhance the stability of thesystem and ensure the flatbed printing with one pass printing precision and repeat printing precision.
10. Ball screw and raster make printing resolution better
11. High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting, also the LED light cost less power and harmless for human health. A4 uv printer combine with the high effective water circulation cooling system to ensure the stable printing.
12. 6 color customize channel of A4 uv printer can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.
Printing Sample
Please visit for more A4 uv printer printing sample.

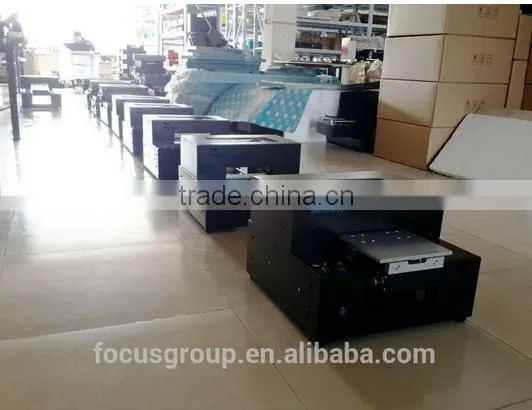

Customer Visiting
Please visit for more information.
Contact us:
Mr.JILL Wang
Tel: +86 21 67765258
Mobile: +86 13205141988
Whatsapp: +86 13205141988
Skype: sales9@
Email: sales9@
Website: www.focusgroup.en.china.cn
Don't hesitated to contact us, this is the machine you need. Please click " send " immidiately!
