HDBC, Stranded Bare Copper Conductor (DIN 48201-1)
US$ 0.5 - 18
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan
Model Number:
HDBC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACSR Type Asx All-Greased Aluminium Conductors Steel Reinforced GOST 839-80US$ 1.19 - 12MOQ: 500 Meters -
AAAC Conductor, Type AH, All Aluminium Alloy Conductor (GOST 839-80)US$ 0.25 - 15MOQ: 5000 Meters
-
AAAC Conductor, Type Ankp, All Aluminium Alloy Conductor (GOST 839-80)US$ 0.25 - 9MOQ: 5000 Meters
-
ACSR/TP, ACSR Twisted Pair Conductor (ASTM B 911)US$ 1.19 - 11MOQ: 500 Meters
-
MHDBC, Medium-Hard Drawn Bare Copper Conductor (ASTM B2/B8)US$ 0.5 - 33MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
Boan
Model Number
HDBC
Insulation Material
Other, Bare
Type
Low Voltage
Application
Underground
Conductor Material
Copper
Jacket
Other, Bare
Product Description

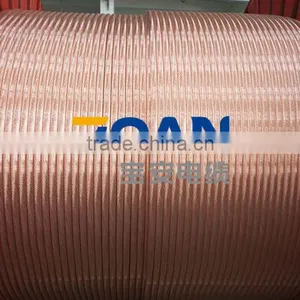

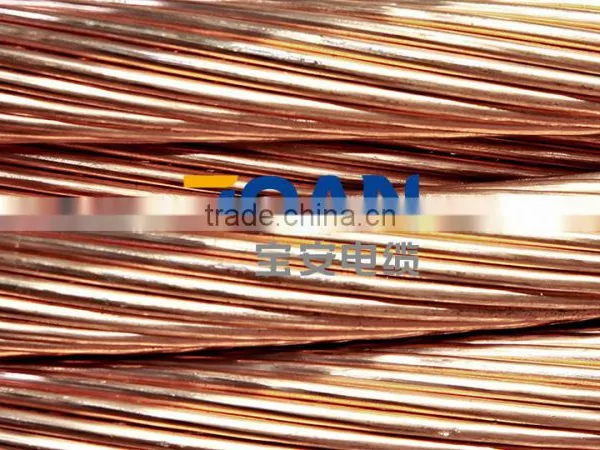

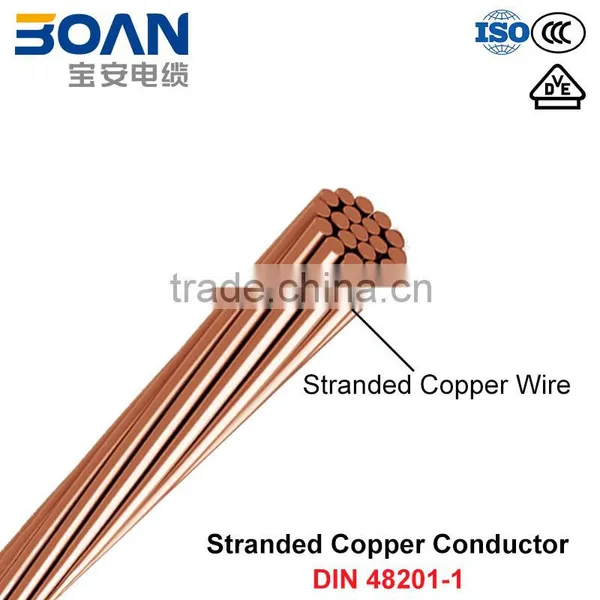

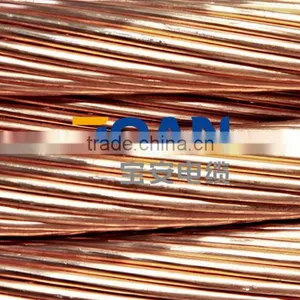

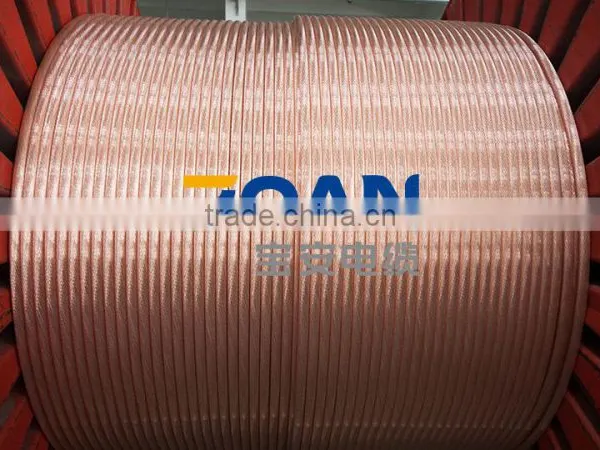

HDBC, Stranded Bare Copper Conductor (DIN 48201-1)
Applications
Solid and stranded bare copper are suitable for overhead transmission and distribution applications.
Stranded conductor of greater flexibility are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
Specifications
DIN 48201-1
Construction
Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.
| Nominal Cross-section | Calculated Cross-section | Number of Wires | Diameter of wire | Conductor diameter | Conductor weight | Breaking load | Current-carrying capacity |
| mm2 | mm2 | mm | mm | kg/km | kN | A | |
| 10 | 10,02 | 7 | 1,35 | 4,1 | 90 | 4,02 | 90 |
| 16 | 15,89 | 7 | 1,70 | 5,1 | 143 | 6,37 | 125 |
| 25 | 24,25 | 7 | 2,10 | 6,3 | 218 | 9,72 | 160 |
| 35 | 34,36 | 7 | 2,50 | 7,5 | 310 | 13,77 | 200 |
| 50 | 49,48 | 7 | 3,00 | 9,0 | 446 | 19,84 | 250 |
| 50 | 48,35 | 19 | 1,80 | 9,0 | 437 | 19,38 | 250 |
| 70 | 65,81 | 19 | 2,10 | 10,5 | 596 | 26,38 | 310 |
| 95 | 93,27 | 19 | 2,50 | 12,5 | 845 | 37,39 | 380 |
| 120 | 116,99 | 19 | 2,80 | 14,0 | 1060 | 48,90 | 440 |
| 150 | 147,11 | 37 | 2,25 | 15,8 | 1337 | 58,98 | 510 |
| 185 | 181,62 | 37 | 2,50 | 17,5 | 1649 | 72,81 | 585 |
| 240 | 242,54 | 61 | 2,25 | 20,3 | 2209 | 97,23 | 700 |
| 300 | 299,43 | 61 | 2,50 | 22,5 | 2725 | 120,04 | 800 |
| 400 | 400,14 | 61 | 2,89 | 26,0 | 3640 | 160,42 | 960 |
| 500 | 499,83 | 61 | 3,23 | 29,1 | 4545 | 200,38 | 1110 |
