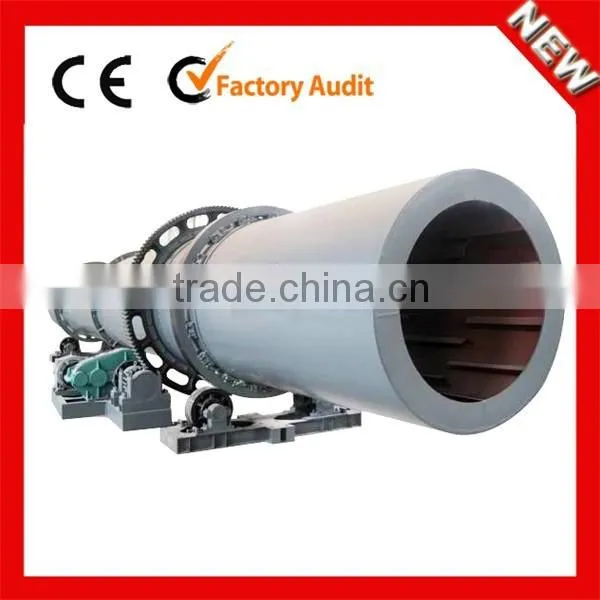

ZOONYEE Large Capacity Good Quality Coal Rotary Dryer Dia2.2*18 Brown Coal Dryer
ZOONYEE large capacity good quality coal rotary dryer Dia2.2*18 brown coal dryer
Application of Rotary Dryer:
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials
Working principle of Rotary Dryer:
Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
Characteristics
1.Reasonable design
2.High-efficiency
3.Low consumption,energy saving
4.Easy to maintain
5.Easy to operate
Technical parameters
Model |
Volume (m3) |
Rotation rate (r/min)
|
Angle of inclination(°) |
power (KW) |
Dimension (mm) |
Weight(t) |
ZTφ1.5×10 |
17.67 |
4.8 |
3-5 |
11 |
10000×2655×2895 |
15.93 |
ZTφ1.5×12 |
21.2 |
4.8 |
3-5 |
15 |
12000×2655×2895 |
17.43 |
ZTφ1.5×14 |
24.9 |
4.8 |
3-5 |
15 |
14000××2655×2895 |
18.33 |
ZTφ1.8×10 |
25.45 |
4.59 |
3-5 |
15 |
10000×3060×2980 |
17.94 |
ZTφ1.8×12 |
3.5 |
4.59 |
3-5 |
18.5 |
12000××2655×2895 |
19.89 |
ZTφ1.8×14 |
35.1 |
4.59 |
3-5 |
18.5 |
14000××2655×2895 |
20.85 |
ZTφ1.8×18 |
5.8 |
4.59 |
3-5 |
22 |
18000×3060×2980 |
22.3 |
ZTφ2.2×12 |
45.6 |
4.43 |
3-5 |
22 |
12000×3620×3570 |
30.31 |
ZTφ2.2×18 |
68.4 |
4.9 |
3-5 |
30 |
18000×3620×3570 |
34.15 |
ZTφ2.2×20 |
70 |
4.9 |
3-5 |
30 |
2000×3620×3540 |
36.07 |
ZTφ2.4×14 |
63.3 |
3.85 |
3-5 |
30 |
14000×3860×3760 |
39.9 |
Photos:
