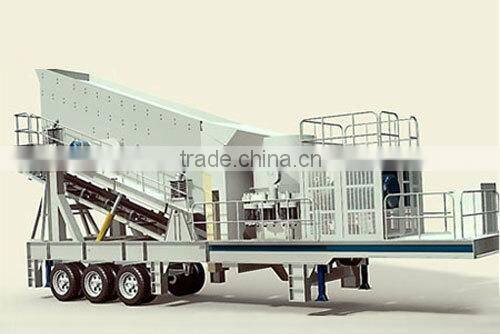

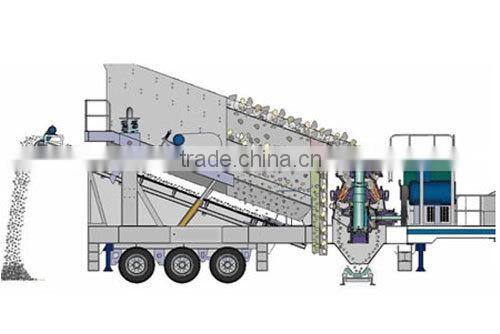

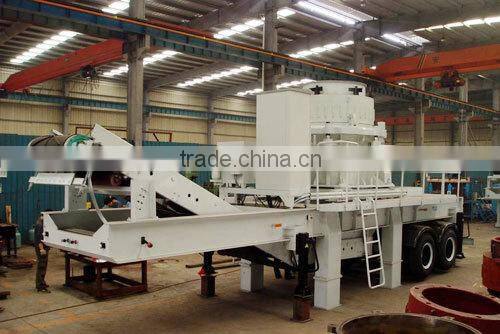

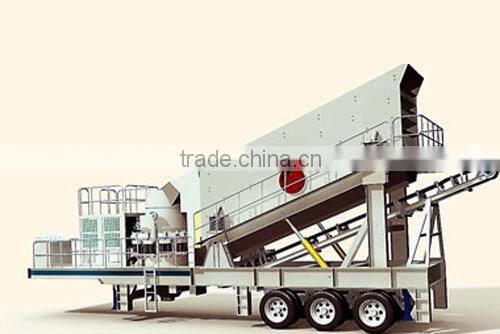

New high efficient mobile cone/impact crusher
Zoonye Portable/Mobile stone crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment, foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
The outstanding features of Y series mobile stone crusher plant
Built with high quality jaw crusher, cone crusher and impact crusher
Feeder, screen and belt conveyor on board
Tractive steering shaft, convenient for road transportation
Integrated with landing gears, quick and convenient installation on site
Integrated motor and control panel
Easy to transport
Mobile stone crusher plant has high on-board chassis, short wheel base and tight turning radius, which is convenient for road transportation, especially for driving to crushing sites that are difficult to access. The set-up time of the portable crushing plant are greatly reduced, compared with the stationary one.
Greatly reduce material transportation cost
Mobile crusher plant crush the material on site, without transporting the materials for off-site crushing, so the material transportation cost is greatly reduced.
Wide applications
According to different customers’ requirements, Portable crushing plant can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three-stage crushing plant with primary, secondary, and tertiary crushing. Likewise, portable crushing plant can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.
Reliable performance and convenient maintenance
Mobile stone crusher plant adapt excellent quality crusher, screen and feeder made from Zoonye Industrial Company, yet the quality is stable and reliable. Normal belt conveyor can be used for conveyance of material, which is of mature technology, simply operation, easy maintenance, and low investment.
Customized production and flexible configuration
We can provide special portable crushing plant based on customers’ site, material, and particle shape requirements, etc. Such as self-load belt conveyor, multiple machines combined type, single machine type and so on.
Main Specification of Mobile Stone Crusher Plant
|
Model Parameters |
YDS50 |
YDS80 |
YDS100 |
YDS180 |
|
1 |
Vibrating Screen Model |
3YA1235 |
3YA1548 |
3YA1848 |
3YA2154 |
2 |
Cone crusher Model |
PYB900 |
PSGB0918 |
PYB1200 |
PSGB1321 |
3 |
Discharge Belt conveyor |
B650=7m |
B650=7m |
B1000=10m |
B1000=11m |
4 |
Back Belt Conveyor1 |
B650=9m |
B650=9m |
B1000=10m |
B1000=9m |
5 |
Back Belt Conveyor2 |
B650=5m |
B650=5m |
B1000=6m |
B1000=7m |
6 |
Transportation Dimension( LxWxH) |
10800x2480x4170 |
10800x2480x4170 |
12500x2900x4200 |
13300x3100x4300 |
7 |
Chassis Frame |
biax |
biax |
biax |
triaxial |
Package & shipment
Packaging: Standard Container, Nude Packs or in Bulk.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Our service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
New high efficient mobile stone crusher plant for sale with good price.
