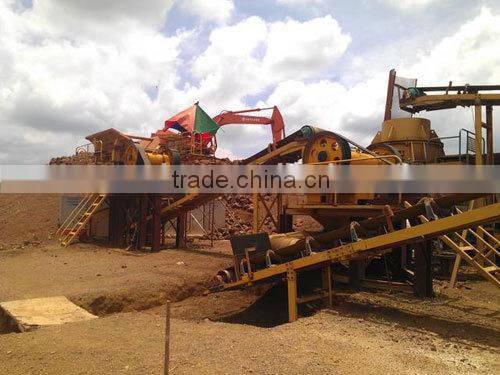

High Quality 100 tons per hour Wheel Type Mobile Jaw Crusher
Brief Introduciton of Mobile Crushing Plant
Mobile Crushing Plant is mainly used in the material process of relocation operation in metallurgy, chemical industry, building materials, water and electricity, in particular liquid stone operation in highways, railways, hydroelectric projects. The user can adopt the various configurations according to the processing raw material kinds, sizes and final product requirements.
Our portable impact crushing plant will offer customers comprehensive technical support. The crushing plant is carefully designed for our customers according to the site survey situation or the customers’ actual requirements, fully embody the design reasonability, effectiveness and applicability, large capacity, low wear and low operation cost are the notable features. Strong technical strength and perfect service system are the guarantee for customers to buy and use. Depending on the various process requirements, combine various types of equipment, to meet customers' different requirements.
Technical Parameters of Mobile Crushing Plant
Model |
Screen model |
Impact crusher model |
Discharge conveyor model |
Back belt conveyor model Ⅰ |
Back belt conveyor model Ⅱ |
Transportation Dimension(LxWxH)(mm) |
Tyre configuration |
YDS50 |
4YA1235 |
PF-1007 |
B650x7M |
B650x9M |
B650x5M |
10800x2480x4170 |
Biaxial |
YDS70 |
4YA1545 |
PF-1010 |
B800x7M |
B800x10M |
B800x6M |
12200x2743x4200 |
Biaxial |
YDS100 |
4YA1548 |
PF-1214 |
B1000x10M |
B1000x10M |
B1000x6M |
12500x2900x4200 |
Biaxial |
YDS180 |
3YA1848 |
PF-1315 |
B1000x11M |
B10000x9M |
B1000x7M |
13000x3100x4300 |
Triaxial |
Features of Mobile Crushing Plant
1. Good mobility performance;
2. Compact structure, facilite to use;
3. Cost saving, reduce the cost;
4. Higher applicability;
5. Stable performance, easy maintenance;
6. Flexible configuration.
Working Principle of Mobile Crushing Plant
The feeder evenly send the material to the crusher, after the primary crushing in the impact crusher, through the closed circuit system of circular vibrating screen, achieve the material cycle crushing, send the final product from conveyor, do the continuous crushing operation. Can remove the circular vibrating screen according to the actual operation need, the impact crusher will do the primary crushing of the material directly, and easy to operate and flexible with other crushing equipments.
Structure of Mobile Crushing Plant
Portable Impact Crushing Plant’s all parts are fully vehicle mounted, including solid frame, mpact crusher, feeder, vibrating screen, belt conveyor, motor, control box, and so on.
