ZOONYEE 30-600m Depth Multi-function Powerful Crawler Geotechnical Investigation Drill Rig With Hydraulic Drilling Tower

Name: ZOONYEE 30-600m Depth Multi-function Powerful Crawler Geotechnical Investigation Drill Rig With Hydraulic Drilling Tower
Brand: Zoonyee
Availability: InStock

FOB Price

US$ 5,000 - 7,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Core Drilling Rig
Power Type	Electric	Place of Origin	Henan, China
Brand Name	Zoonyee	Model Number	HZ-200
Usage	Water Well	Voltage	220v
Power(W)	15kw	Dimension(LWH)	2.50.91.3m
Weight	1t	Certification	CE
Warranty	15 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

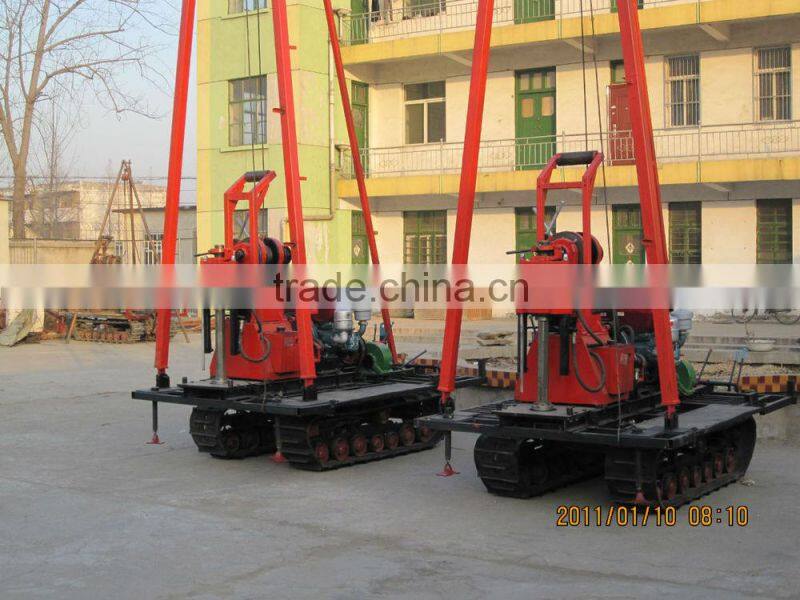

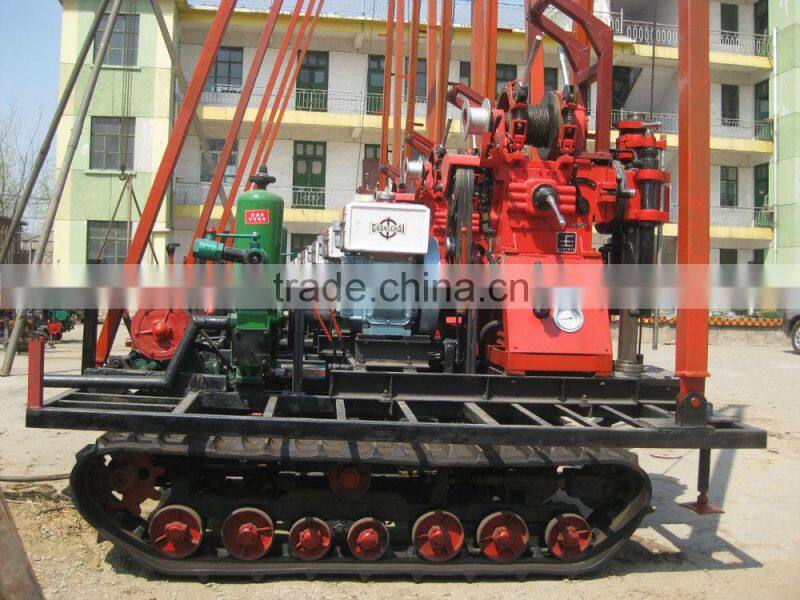

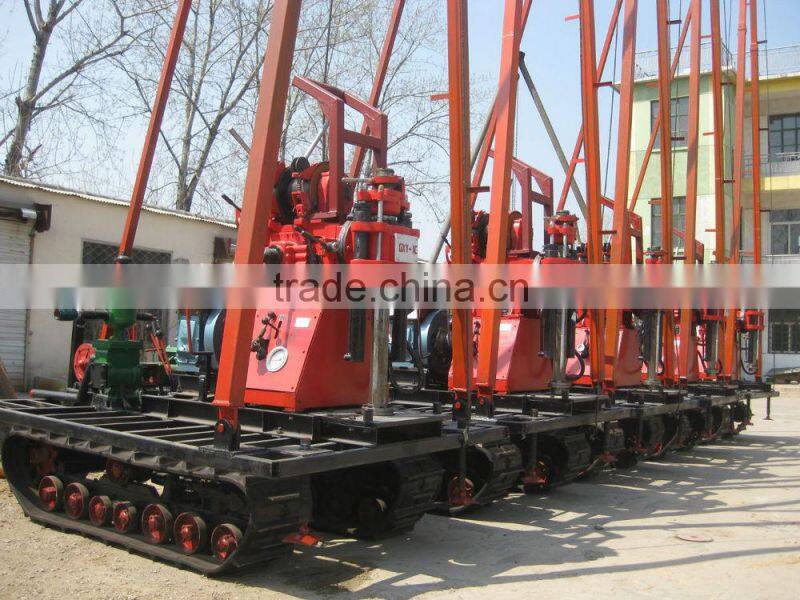

ZOONYEE 30-600m depth multi-function powerful crawler geotechnical investigation drill rig with hydraulic drilling tower

Product Description

1. APPLICATIONS:

Geological drilling for water well,railroad, highway, bridge tunnel, foundations of power station, Civil and industrial buildings, also drilling anchoring hole and blasting hole etc.

2. FEATURES

Spindle type mechanical transmission, hydraulic feed.
Hydraulic retracting lets drill body away from the drilling hole.
Hydraulic chuck, hand-powered chuck and hand-powered cylinder chuck, they are exchangeable.
Friction hoist, percussion drilling, easy to pull and push casing if equipped with vibrator.
Advanced design, reasonable arrangement, compact structure, beautiful looking.
Light weight, good detachability, easy to operate.
Equipped with special 6mA type derrick for user ordering.

3.Specifications
Unity machine parameter
Drilling depth		30--200m
End hole caliber		500-75mm
Drill rod caliber		50mm
Drilling angle		90°~75°
Drill weight (No include power)		910kg
Unity machine dimensions		2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed		64,128,287,557r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		2500kg
Single line lifting speed		17,35,75,151r/min
Tightrope caliber		12.5mm
Tightrope cubic measure		35m
Hug floodgate caliber		254mm
Hug folldgate belt width		70mm
Distance between drill and hole		400mm
Mud pump - Specifications
Type	Horizontal single urn twin-action
Displacement	170L/min
Diesle engine	S1115 model 22HP
Electric motor	Y160M—4 15kw 1440r/min
Maximum pressure	1.5Mpa
Work pressure	0.7Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
