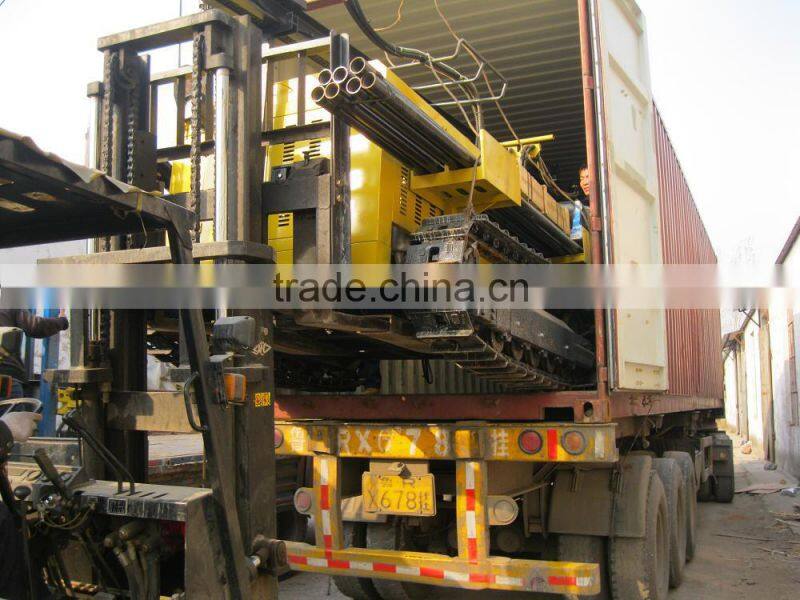

Help CenterTop Quality Widely Used Portable Water Well Drilling Rigs for Sale
Related Products
-
Drilling Depth 200m Small Scale Water Well Drill Drig for Civil Wells and Earth Temperature Central Air-conditionerUS$ 1 - 9,300MOQ: 1 Set -
Drilling Depth200m and Working Pressure 0.7Mpa Water Drilling Machine PricesUS$ 1 - 9,300MOQ: 1 Set
-
2015 Newest Products Low Cost High Effiency Water Drilling Machine for SaleUS$ 1 - 9,300MOQ: 1 Set
-
China Best Selling HZ-200YY Hydraulic Portable Drill Drig for Sale From Zoonyee ManufactureUS$ 1 - 9,300MOQ: 1 Set
-
Zoonyee Brand High Professional Small Water Well Drilling Machine for SaleUS$ 1 - 9,300MOQ: 1 Set
High Professional Used Water Drilling Rigs for Sale from China Supplier

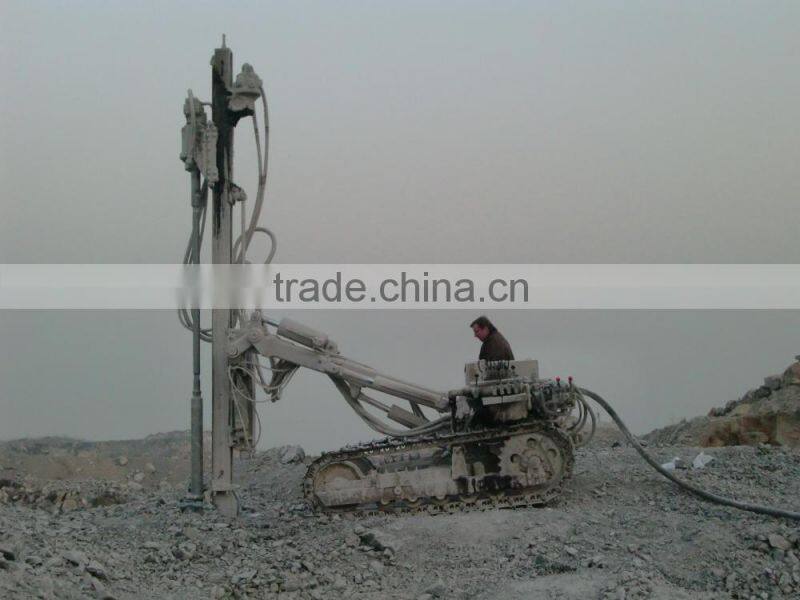

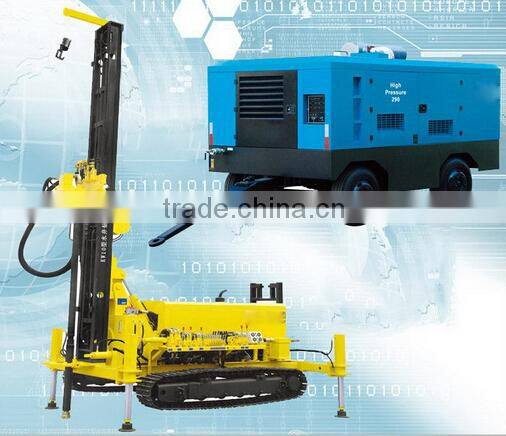

KW10 Water Well Drill Rig is a light, efficient and multifunction drilling plants. The power system is provided by the air compressor. It is well received by professionals of drilling well, irrigation well, geothermy well and other well holes, especially for water intake projects in mountain areas and lithostrome. The drill rig can drill holes in various stratum and the diameter of the hole reaches 254mm. It uses the late-model hydraulics, large torque hydraulic motor and cylinder system powered by well-known multi-cylinder engine. Its unique pump package design easy to maintenance and lower cost of upkeep. Its centralized hydraulic control board facilitates operation. The drill rig adopts crawler chassis and cross-country performance is very well.
Advantages of KW Water Well Drill
1.Double-Motor powerful rotating system
2.High Torque Large Aperture
3.Centralized operating system
4.Double oil-cylinder system
5.Safe and stable traveling system
| Specification of KW10 Multi-Function Well Drill | ||
| Structure | Parameters | |
| Model No | KW10 | |
| Dia.of hole | 115-254mm | |
| Drilling depth | 120m | |
| Working pressure | 10.5-24.6bar | |
| Air consumption | 16-30m3/min | |
| Ground clearance | 245mm | |
| Support cylinder stroke | 460mm | |
| Feed cylinder stroke | 1750mm | |
| Feed power | 30000N | |
| Lift power | 70KN | |
| Speed of rotator | 50-100rpm | |
| Rotation torque | 3200N·M | |
| Climb capacity | 25o | |
| Traveling speed | 0-2.5km/h | |
| Dimensions | 6000×2300×2500mm | |
| Weight | 6000KG | |
| Engine model | YC4D08 Engine | |
| Power | 58KW/78HP | |
| Rotation speed | 2400rpm | |
| 1.Impact Hammer | DHD380 | |
| 2. Dia. Of rod | Φ76mm,Φ89mm | |
| 2.Length of Rod | 3m | |
| 3. Dia.of Bit | Φ115-254mm | |
| Recommend compressor | LGCY-21/20 | |
| Air delivery(m³/min) | 21 | |
| working pressure(Bar) | 20 | |
| diesel engine | cummins,6LTAA8.9-C325(239KW) | |
Model |
Working Pressure Mpa |
Motor Kw |
capacity m3/min |
Dimension W*L*H mm |
Diesel engine(hp) |
Weight kg |
LGCY-8/7 |
0.7 1.0 1.3 |
70 |
8 7 6 |
3750x1950×1800 |
YuChai |
1700 |
LGCY-12/7 |
0.7 1.0 1.3 |
110 |
12 11 10 |
3850×2100×2100 |
YuChai |
2500 |
LGCY-17/7 |
0.7 1.2 1.3 |
132 |
17 14 13 |
3750×1900×2250 |
Cummins |
3500 |
LGCY-21/7 |
0.7 1.0 1.35 |
266 |
21 21 21 |
4250×2000×2350 |
Steyr WD615.46 |
4800 |
LGCY-26/20 |
2.0 |
302 |
26 |
4250×2000×2400 |
Steyr WD615.57 |
600 |
LGCY-6/7 |
0.7 |
70 |
6 |
3600×1800×1600 |
YCD4B22-95 |
1400 |
LGCY-18/17 |
1.7 |
194 |
18 |
5300×1800×2800 |
Cummins |
4000 |
Pre-sale support
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.
Services during the sale
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.
After-sales service support

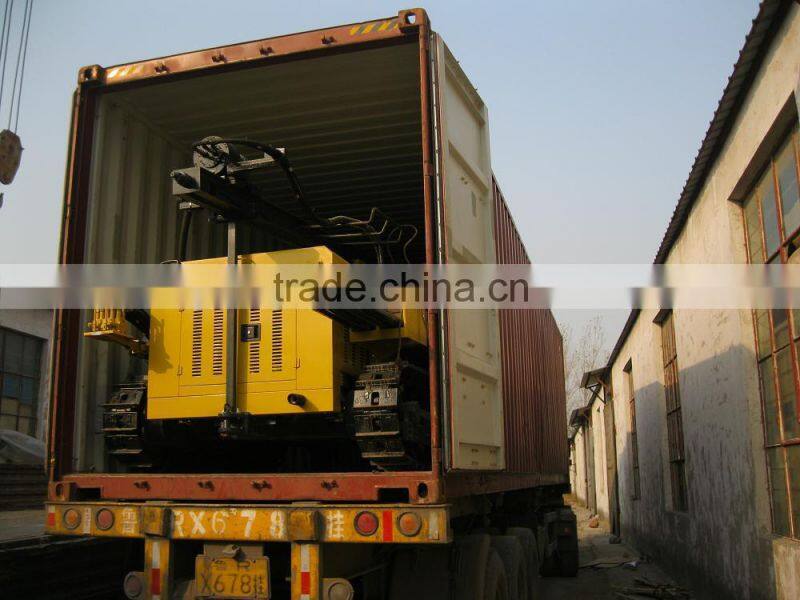

After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
About Us
Zhengzhou Zoonyee Mining Machinery Co., Ltd are specialized in the research, production and sale of mining crushing equipment,sand making equipment and constuction waste recycling equipment.
Our company always committed to providing the highgrade aggregate solution and advanced compete equipment for highway, railway, water and electricity engineering project.
Photo of our factory
Crushers: jaw crusher, cone crusher, impact crusher,hammer crusher etc.
Sand-making machine: VSI crusher, PCL crusher, PL crusher;
Accessory equipment: vibrating feeder, vibrating screen, belt conveyors,
Stone crushing plant: from 50 -500t/h;
Sand production line: from 50 -500t/h;
Mobile crushing plant: from 50-200t/h;
Mobile Construction waste recycling plant 50-200t/h:
Q1. I m not sure whether your production information on alibaba is true,
A: You can click our company website. Our website is
Q2.I m not sure whether the quality of your production is good.
A:Welcome to visit our company. I will lead you to see the process of production in our workshop.
Any questions please contact us freely.
