Copper Mine Equipment Flotation Separator/flotation Cell

FOB Price

US$ 10,000 - 99,999 / Piece

1 Piece(Min. Order)

Port Qingdao or per demand
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	10-280 t/h	Place of Origin	Henan, China
Brand Name	Zhongrong, or OEM	Model Number	Per specification
Voltage	Per specification	Power(W)	1.5-11 kw
Dimension(LWH)	Per specification	Weight	Per specification, As per specification
Certification	ISO9001, CE, ISO, CE	Warranty	12 months, 12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

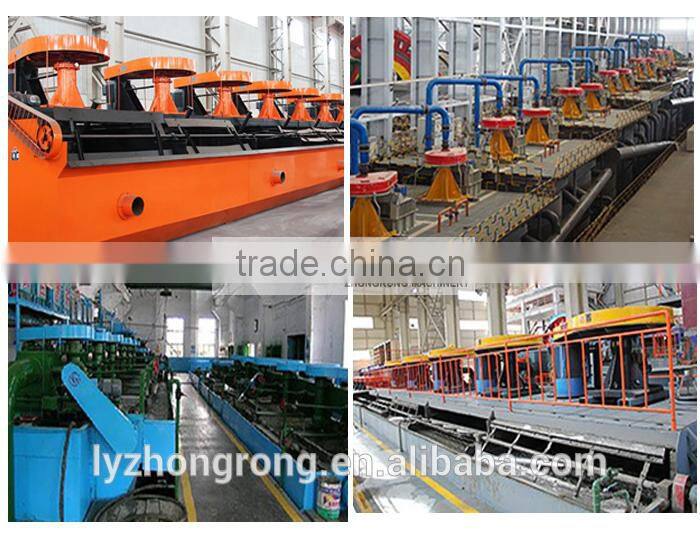

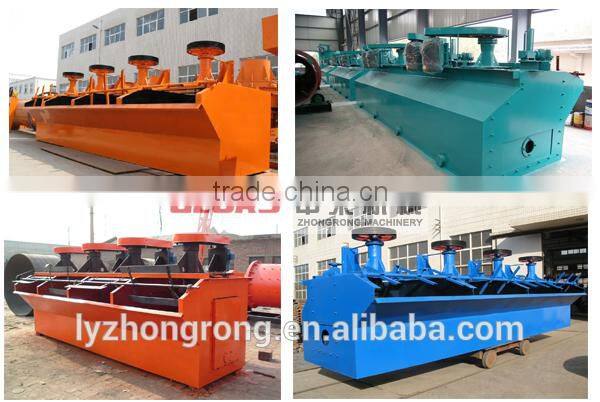

Product photos:

Product description:

^{The flotation machine is mainly composed of pulp chute, mixing device, air charging system, mineralized froth discharging device and electric motor. It is used for the selection of talcum etc. Besides, Stat, and also for roughing and selecting of the ferrous metals, precious metals and non-metallic mineral. It is also widely used in water purification. Therefore, the flotation machine is the most anticipated device in flotation, ore processing production. It is more efficient and more economy compared with the other device.}

Technical data:

Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4	SF8
Trough cubage (m³)		0.37	0.7	1.2	2.8	4	8
(mm)		300	350	450	550	650	760
Production capacity (m³/min)		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4	4-8
Impeller Rotation speed (r/min)		386	400	330	268	220	191
Motor	Model	Y90L-4	Y100L2-4	Y132M2-6	Y160L-6	Y180L-6	Y250M-8
	Model	Y90S-4	Y90S-4	Y90S-4	Y90S-4	Y90L-4	Y100L-6
	Power (kw)	1.5	3	5.5	11	15	30
	Power (kw)	1.1	1.1	1.1	1.1	1.5	1.5
Dimension (mm)		700700750	900820950	110011001100	170016001150	185020501200	22002900 1400
Single trough weight (kg)		468	990	1873	2538	2838	4129

Application range:

Ore products which the particle size is below 3mm, such as magnetite, pyrrhotite, roasted ore, ilmenite, coal, non-metallic minerals.

Advantages

1. Good performance, High efficiency

2. Easy to maintenance, low cost

3. Stable operation, no failure happens.

4. Long service time, good impact resistance

5. Advanced technology, special structure

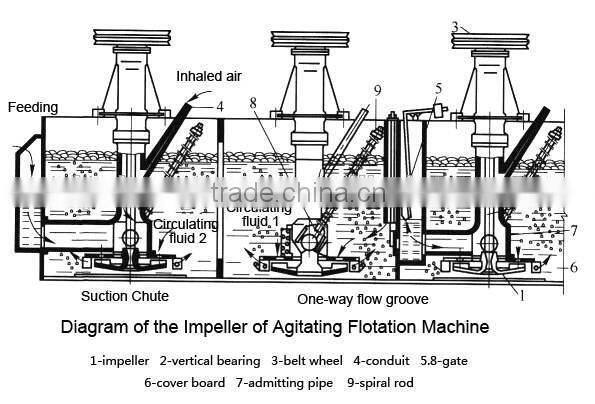

Working Principle

This type of flotation cell is formed by a U-shaped trough, hollow shaft inflation and suspension stator and especially a new type impeller which is a cone impeller whose blades lean backwards just like a centrifugal pump wheel with height ratio rotary speed.

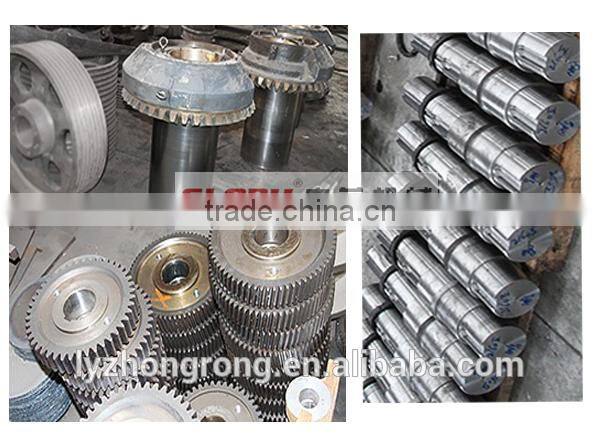

Spare parts photos:

Packaging

Mining products we supply:

Customer visit:

Welcome to contact and visit us.
