Specifications
1.300mbps 802.11n wireless ap router wireless-n wifi repeater2.up to 300Mbps transmission
3.wifi repeater

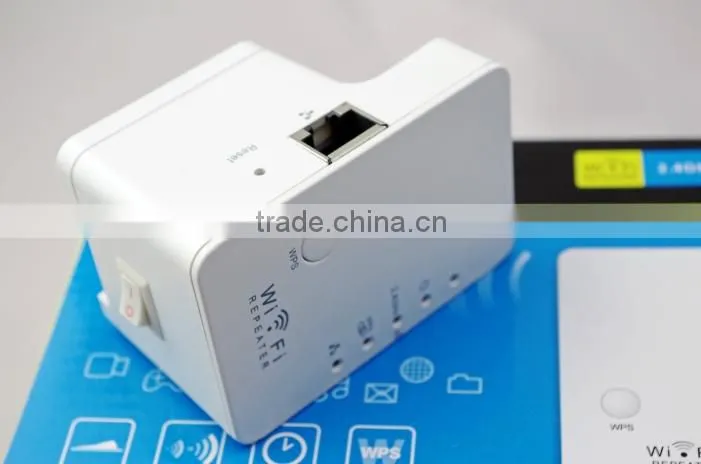

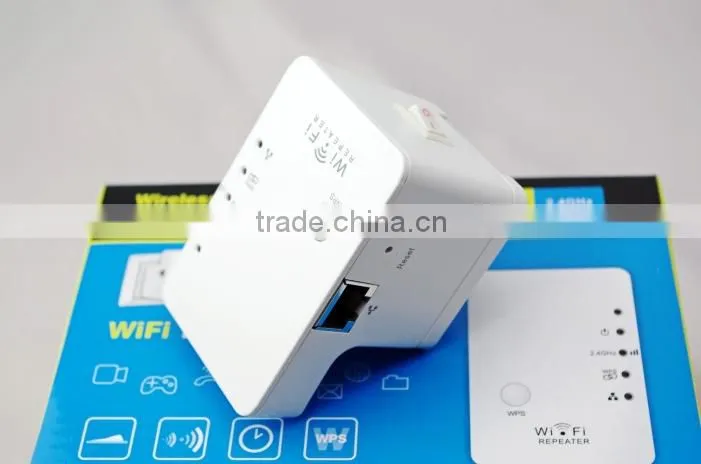

300mbps 802.11n wireless ap router wireless-n wifi repeater
Improve wireless coverage in all WLAN networks.
Support Wireless Repeater Mode and Standard AP Mode.
WLAN 802.11n for wireless high-speed access, downwards compatible with 802.11g(54Mbit/s) and 802.11b(11Mbit/s) standard.
Provides up to 300Mbps transmission rates.
Support 2.4GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP(128/64).
Software wizard for simple setup.
Antennas integrated.
WLAN access point/client according to IEEE 802.11n/g/b.
110 ~ 230-volt socket.
The WLAN client must support at least the WPA encryption standard.
WLAN access point and the WLAN client with automatic IP address assignment(DHCP).
Forwarding of IPv4-based protocols/Address Resolution Protocol.
The network name (SSID) of the WLAN access point must be set to "visible".
Wireless |
|
Standard |
IEEE802.11b, IEEE 802.11g, IEEE 802.11n |
Modulation |
802.11b: DSSS / BPSK / QPSK / CCK |
802.11g: OFDM / DSSS / BPSK / QPSK / CCK | |
802.11n: OFDM / DSSS / BPSK / QPSK / CCK | |
Speed |
802.11b: 11Mbps |
Channel |
11: (Ch.1-11) - USA |
Frequency band |
2.412~2.462GHz –USA |
Power |
802.11b: 17dBm ± 1.5 dBm |
Sensitivity |
802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm |
Antenna |
2 x 3dBi Integrated Antennas |
Distance |
Outdoors 300m, Indoor 100m (According to the actual environment change) |
Security |
64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS |
Software |
|
Standard Version |
RFC768 User Datagram Protocol(UDP) |
Mode |
AP Mode / Repeater Mode |
Wireless Security |
Wireless MAC address Screening |
Function |
IP bandwidth control (Router mode support) |
DHCP settings |
Server list (Router mode support) |
Security |
IP and MAC address binding against ARP attacks (Router mode support) |
System Tools |
Traffic statistics |
Hardware |
|
Ports |
1 x RJ45 Jack |
Button |
Reset WPS |
LED |
1 * LAN, 1 * WLAN, 1 * Power, 1 * WPS |
Chipset |
RTL8196E |
Flash |
16Mbps |
SDRAM |
128Mbps |
Power supply |
Internal DC5V / 1A |
Power plug |
EU plug |
Power consumption |
2.3W |
Rated voltage/ frequency /current |
100-240 VAC 50/60Hz, 0.1A Max., |
Environmental |
|
Operating temperature |
0 ~ 40 Celsius degree |
Storage temperature |
-10 ~ 70 Celsius degree |
Relative humidity |
10% ~ 90% (Non Condensation) |
Product information: |
|
Color |
White + Black |
Product size |
Approx. 9.5 * 8cm / 3.74 * 3.15in |
Product weight |
Approx. 108g / 3.8oz |
Package size |
Approx. 18 * 11.8 * 6.6cm / 7.09 * 4.65 * 2.6in |
Package weight |
Approx. 218g / 7.68oz |
