Wireless N Wifi Repeater

Name: Wireless N Wifi Repeater
Brand: Elifecosy
SKU: 116443217
Availability: InStock

US$ 13.79 - 16.39 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Elifecosy

Model Number:

EC-RP7620N

Shenzhen TopDoss Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Elifecosy

Model Number EC-RP7620N

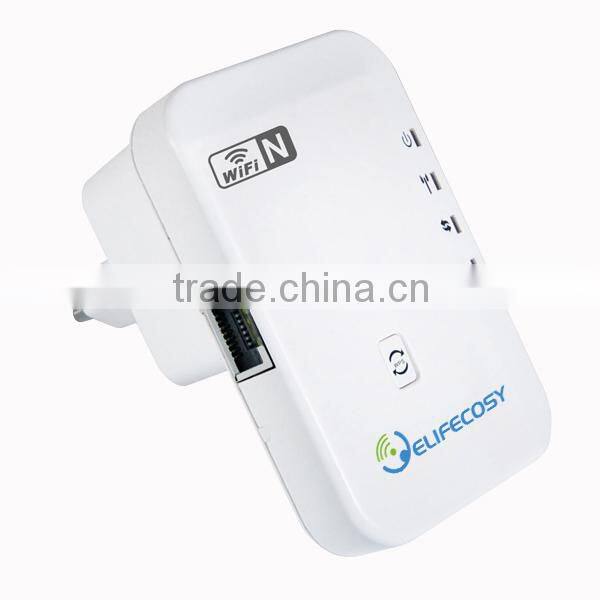

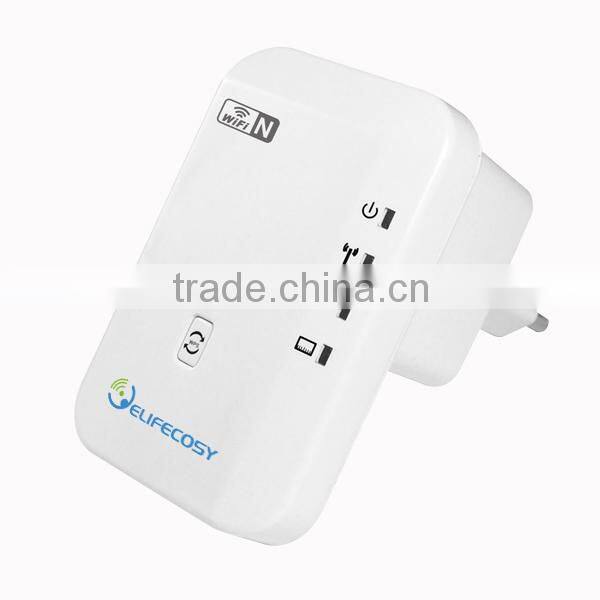

wireless N wifi repeater

wireless N wifi repeater`s features

2.4~2.4835GHz 300Mbps MT7620N Chipset

32Mbytes SD-RAM,4Mbytes Flash

3dBi PCBA Antenna,WPS Function

100~240 VAC, 50/60Hz Power Supply

EU/UK/US/CN,/AUS Power Socket

14 ~17 dBm (Typical)Wireless Transmit Power

Indoor 100M,outdoor 300M Distance

White Color,Less than 4W Power Consumption

wireless N wifi repeater`s specification

Specifications
Model	EC-RP7620N
Protocol/Standards	Wireless IEEE802.11n, IEEE802.11b/g
Protocol/Standards	Ethernet IEEE 802.3 10/100, IEEE802.3u
Memory	32Mbytes SD-RAM,4Mbytes Flash
Transmission Rate	Up to 300Mbps
Frequency Range	2.4~2.4835GHz
Antenna	3dBi PCBA Antennas
Wireless Transmit Power	14 ~17 dBm (Typical)
Power Consumption	Less than 4W
Max Current	0.12A
Power Supply	100~240 VAC, 50/60Hz
Power Socket	EU, UK, US, CN, AUS
Security	Wireless: 64/128-bit WEP, WPA, WPA2
Wireless Signal Rates	11n: Up to 300Mbps(dynamic)
	11g: Up to 54Mbps(dynamic)
	11b: Up to 11Mbps(dynamic)
WPS Function	YES
Receiver Sensitivity	270M: -68dBm@10% PER
	130M: -68dBm@10% PER
	108M: -68dBm@10% PER
	54M: -68dBm@10% PER
	11M: -85dBm@8% PER
	6M: -88dBm@10% PER
	1M: -90dBm@8% PER
Modulation Technology	11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
	11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
	11b: DQPSK, DBPSK, DSSS, CCK
Environmental
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	30% to 90% Relative Humidity (Non-Condensing)
Storage Humidity	30% to 95% Relative Humidity (Non-Condensing)
Dimensions	L:80 x W:50 x D:83.44mm
Color	White
Accessories	1 x Ethernet Cable
Accessories	1 x Setup Wizard
