Specifications
oem 150Mbps AR933 high power Long range AP wireless1. AP wireless
2.150Mbps 802.11b/g/n
3. Support 4 Vlan

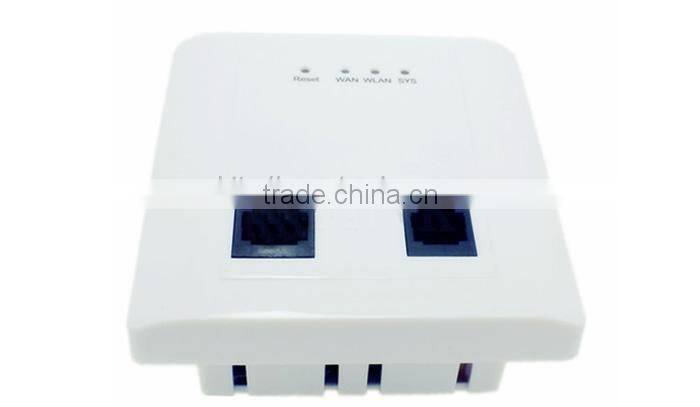

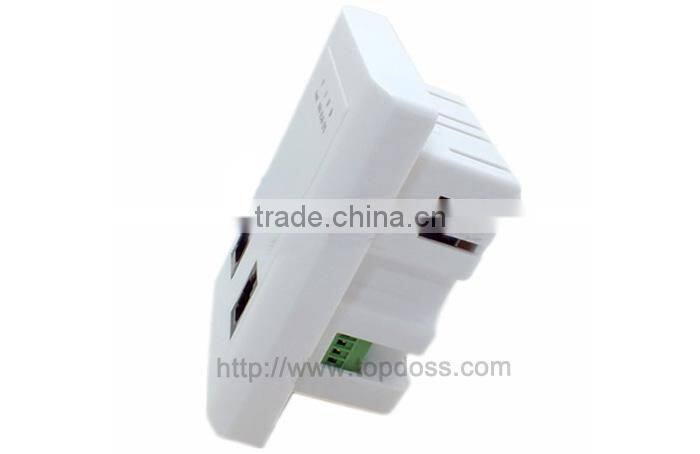

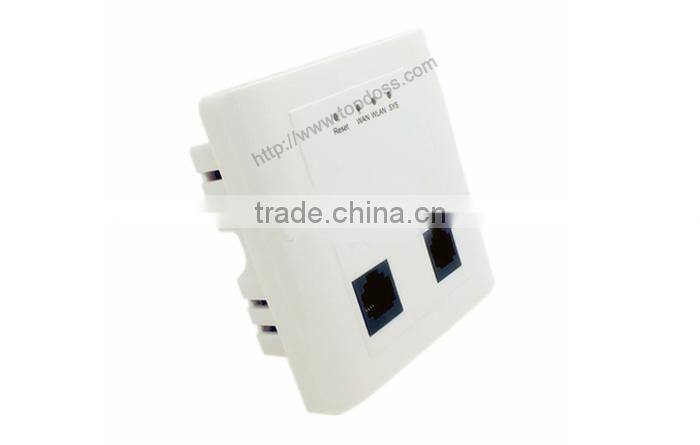

oem 150Mbps AR933 high power Long range AP wireless
Specifications | ||||
Features |
Instructions |
|||
Chip Solutions |
CPU:AR9331 RF:AR9331 |
|||
Ethernet |
IEEE802.3u MDI / MDIX 10/10 0 IEEE802.11b/g Wireless LAN Port IEEE 802.11n Wireless LAN |
|||
DDR |
64Mbyte DDR2 |
|||
Flash Memory |
16Mbyte SPI FLASH |
|||
POE Power |
IEE802.3af Standard POE Power Supply |
|||
CPU Frequency |
400MHz |
|||
Gain |
Bull-in 2dBi Antenna |
|||
Wireless Configuration |
1×1 (1Tx,1 Rx) |
|||
Ethernet Interface |
Two 10/100 Base Ethernet Ports ( with Auto MDI / MDIX) |
|||
Ethernet Physical Rate |
10/100Mbps |
|||
Reset Button |
The device to restore factory settings |
|||
LED Light |
Power Indictor Light,WAN Indictor Light,WLAN Indictor Light |
|||
Data Rate |
11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps 11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M,58.5M, 65M,81M,108M,121.5M,135M,150Mbps |
|||
Transmission Mode |
DSSS |
|||
Modulation |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|||
Frequency Range |
China : 2412 GHz ~ 2472GHz (Chanel1-Chanel13) |
|||
Power Consumption |
<5W |
|||
|
RF Power @25°C (±2dB) |
802.11b :26±2DB 802.11g(54M): 23±2DB 802.11n HT20(65M): 22±2DB 802.11n HT40(135M): 21±2DB |
|||
Sensitivity |
IEEE 802.11b 1Mbps<-95dBm 11Mbps<-89dBm |
IEEE 802.11g 6Mbps<-92dBm 54Mbps<-73dBm |
IEEE 802.11n HT 20 MCS 0<-86dBm HT 20 MCS 7<-68dBm HT 40 MCS 0<-83dBm HT 40 MCS 7<-65dBm |
|
Physical Specifications | ||||
Features |
Instructions |
|||
Dimension |
86mmx86mmx48mm Standard Cassette Design |
|||
Weight |
<500g |
|||
Environmental Specifications | ||||
Features |
Instructions |
|||
Operating Temperature |
-10~+45°C |
|||
Operating Humidity(No-condensing) |
10%~90% RH |
|||
Storage Temperature |
-40~+85°C |
|||
Storage Humidity(No-condensing) |
10%~90% RH |
|||
Environmental |
RoHs Standard |
|||
