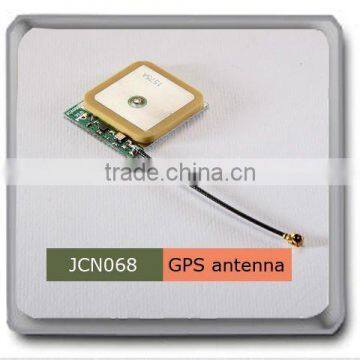

Help Center(Manufactory) High Quality GPS Auto/Vehicle/Navigation GPS Internal Antenna
Related Products
-
(Manufactory) High Quality Car Active Build-in Gps AntennaUS$ 1.75 - 2.75MOQ: 1 Piece -
(Manufactory) High Quality GPS Patch AntennaUS$ 1.5 - 2.5MOQ: 1 Piece
-
(Manufactory)high Quality GPS Auto/Vehicle/Navigation Internal GPS AntennaUS$ 1.5 - 3MOQ: 1 Piece
-
(Manufactory)high Quality GPS Auto/Vehicle/Navigation GPS Patch AntennaUS$ 1.5 - 2.5MOQ: 1 Piece
-
(Manufactory) High Performance GPS Internal Active AntennaUS$ 1.5 - 2.5MOQ: 1 Piece
Automative antenna application
• Military
• Car navigation
• AVL/Fleet Management
• Vehicle tracking
• Weather balloon
• Security surveillance
• External antenna for handheld
• Avionics GPS antenna
• External antenna for battery operated handheld receivers
• Router and so on
PARTNERS
Electrical Characteristics
1.1 Dielectric Antenna
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
Center Frequency(MHz) |
1575.42 MHz |
±3 MHz |
2 |
Band Width(MHz) |
±5 MHz |
± 1MHz |
3 |
V.S.W.R(in BW ) |
1.5:1 |
— |
4 |
Gain(Zenith) |
3 dB |
±0.5 dB |
5 |
Polarization |
RHCP |
— |
6 |
Impedance |
50 Ω |
1.2 LNA/Filter
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
LNA Gain |
28±2 dB |
±2.5 dB |
2 |
Noise Figure |
1.5 dB |
— |
3 |
DC Voltage |
2.7~5 V |
|
4 |
DC Current |
8~14 |
|
1.3 Mechanical
No. |
Item |
Specification |
1 |
Cable |
RF1.13 or others |
2 |
Connector |
IPEX or others |
3 |
Mounting |
Internal |
Working environment
Main process
Cable striping Connector Pumping Soldering Testing
Advantage
1. Main products: GPS/GLONASS/COMPASS antenna,4G/3G/2G GSM/GPRS antenna,WIFI antenna as well as combination antennas, Various cable assemblies and connectors are also available.
2. Certification:CE,TUV,FCC,TS16949,ISO9001:2008,Reach certificated,comply to ROHS.
3. Capacity: 30,000 units daily, 25000 square meter factory area,over 200 workers.
4. QC:whole sets of Agilent test equipment to assure quality.
5. Business partners: Amphenol(China,India,Malaysia),ARC wireless solution in USA, Teltonika in Lithuania, Telit in Israel, NEC in Japan and so on.
PAQ
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have automative GPS antenna 100% assembles well in stock?
A: No, all automative GPS Antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your factory?
A: Sure, welcome any time.
