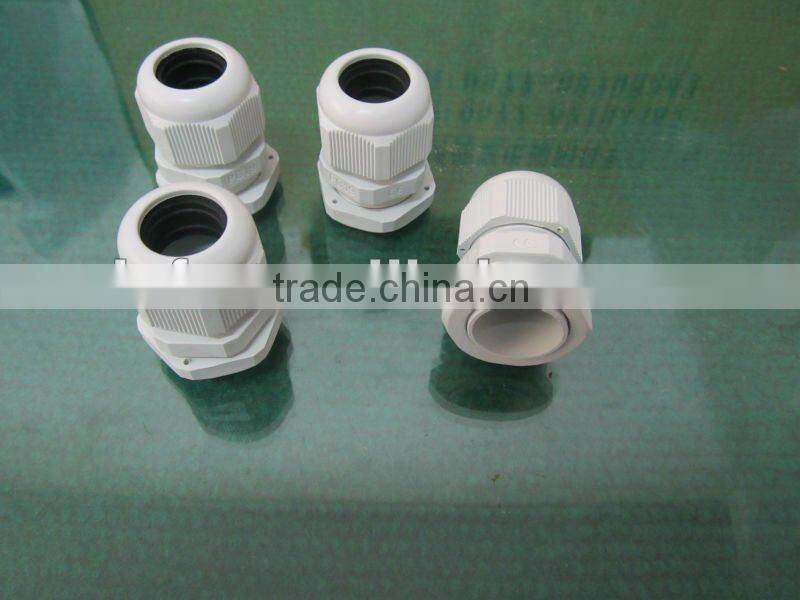

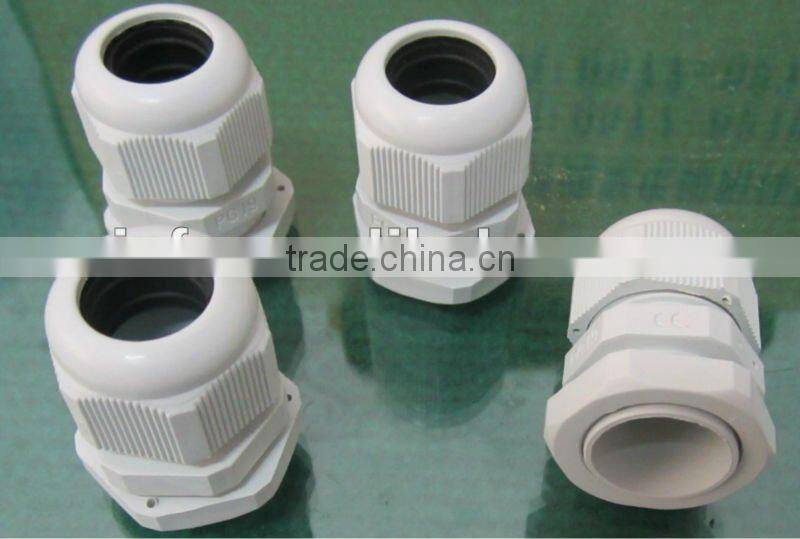

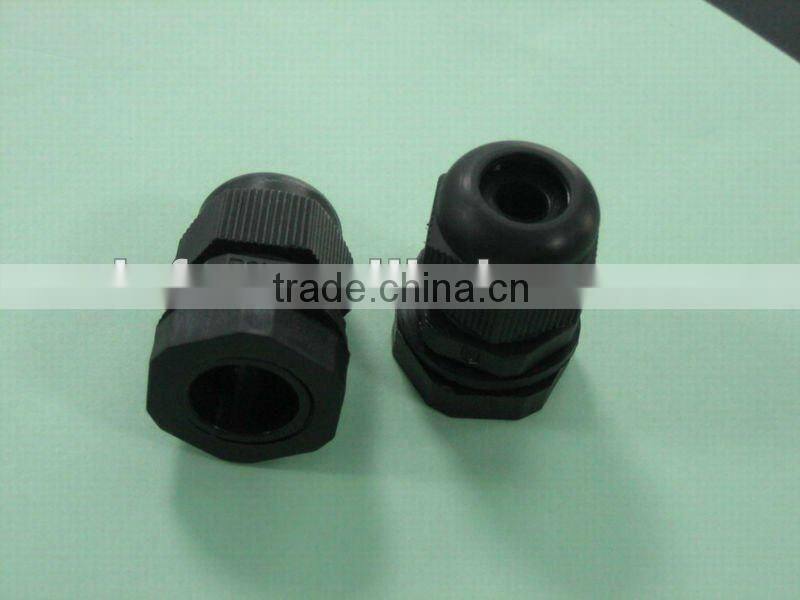

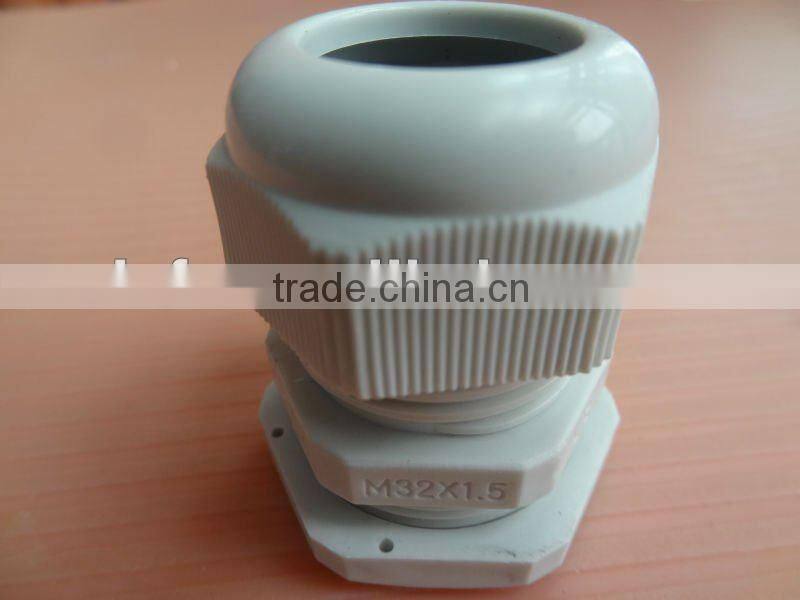

Help CenterIP68 Plastic Waterproof Cable Connector PG16
Related Products
1. Base Data
1) Type: Nylon Cable Glands
2) Material: Nut, Locknut and Body are made from UL-certified nylon 66, 94V-2. Seal and Gasket are made from NBR.
3) Standard colors: Grey, black, and other colors available on request.
4) Protection degree: IP68 (used with Washer)
5) Operation temperature: - 40 centigrade to+ 100 centigrade, maximum instantaneous temperature up to 120 centigrade
6) Installation: With special design and good tensile strength, cables can be directly inserted into the hole of the same size thread and then fix it with the Locknut.
7) Application: Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the seal and clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.
Indoor and outdoor application
8) Flammability: UL94V-2
9) Certification : ROHS , PAHS ,UV Resistant, High Temperature Resistant

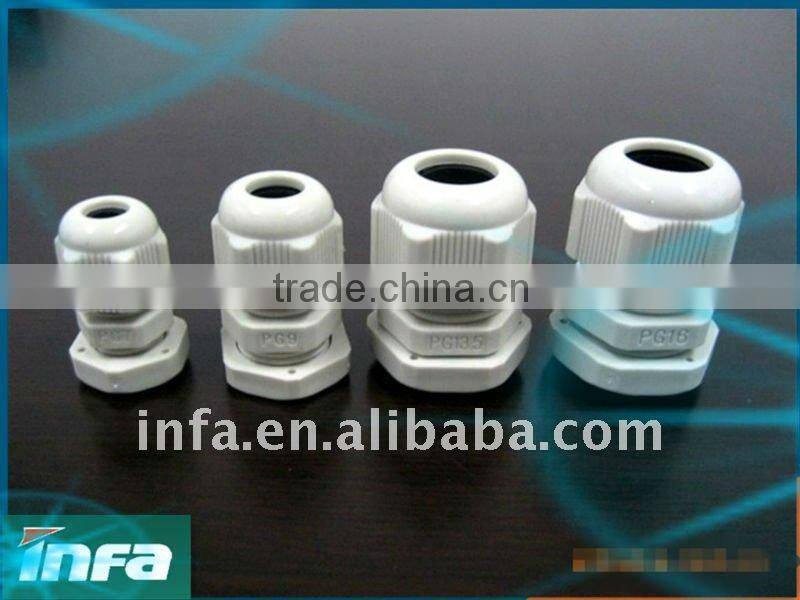

2. Produce Dimensions
|
Type |
ITEM.NO. |
D1 (mm) |
D2 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
B1 (mm) |
Cable range (mm) |
| M12×1.5 | PG-07 | 12 | 8.1 | 9 | 5 | 15 | 14 | 6.4 | 3.5--6 |
| M16×1.5 | PG-09 | 16 | 11 | 9 | 5 | 15 | 16 | 8.6 | 4--8 |
| M18×1.5 | PG-11 | 17.9 | 13 | 9 | 5 | 18 | 18 | 10.7 | 5--10 |
| M20×1.5 | PG-13.5 | 20.2 | 15 | 9 | 5 | 20 | 19 | 13.3 | 6--12 |
| M22×1.5 | PG-16 | 22 | 17 | 11 | 5 | 20 | 19 | 14.3 | 10--14 |
| M24×1.5 | PG-19 | 24 | 19 | 11 | 5 | 22 | 21 | 15.5 | 12--15 |
| M27×1.5 | PG-21 | 26.9 | 21.8 | 11 | 6 | 24 | 22 | 16.7 | 13--18 |
| M30×1.5 | PG-24 | 29.8 | 24 | 13 | 7 | 24 | 24 | 19.2 | 15--22 |
| M30×1.5 | PG-25 | 29.8 | 24 | 13 | 7 | 24 | 24 | 19.2 | 15--22 |
| M32×1.5 | PG-27 | 29.8 | 24 | 13 | 7 | 24 | 24 | 19.2 | 15--22 |
| M36×1.5 | PG-29 | 36 | 28 | 13 | 7 | 25 | 24 | 24.8 | 18--25 |
| M48×1.5 | PG-36 | 45.7 | 39 | 15 | 8 | 32 | 27 | 30.7 | 22--32 |
| M53×1.5 | PG-42 | 54 | 46 | 15 | 8 | 33 | 29 | 35.6 | 30--38 |
| M58×1.5 | PG-48 | 59 | 51 | 16 | 8 | 36 | 30 | 41.4 | 34--44 |
| M70×1.5 | PG-63 | 71 | 63.5 | 28 | 9 | 45 | 44 | 55 | 42--54 |
...
