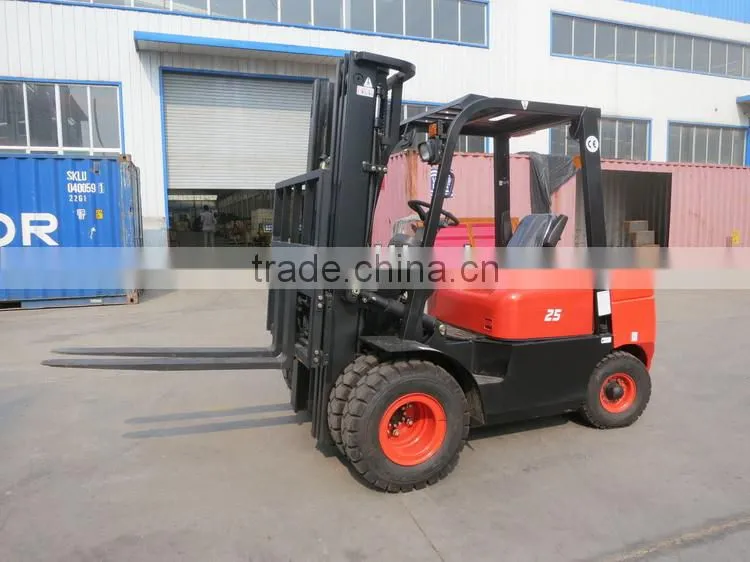

Help Center2.5 TON Forklift Truck With CE
Related Products
Forklift Truck Specification:
1) Load capacity (kg): 2, 500
2) Load center (mm): 500
3) Max. Lifting speeds (full load) (mm/s): 400
4) Max. Driving speeds (km/h): 17/19
5) Drawbar pull (N): 11, 466
6) Gradeability (%): 15/20
7) Lifting height (mm): 3, 000
8) Free lift (mm): 60
9) Tilting angles (forward / backward): 6 / 12
10) Min. Turning radius (mm): 2, 350
11) Angle stacking aisle (mm): 2, 050
12) Min. Under - clearance (mm): 110
13) Overall length (mm): 3, 600
14) Overall width (mm): 1, 160
15) Overall height (mast retracted) (mm): 2, 095
16) Overall height (mast e x tended) (mm): 4, 060
17) Overall height (to overhead guard) (mm): 2, 095
18) Wheel base (mm): 1, 740
19) Front tread (mm): 970
20) Rear tread (mm): 970
21) Front tyre: 7.00-12
22) Rear tyre: 6.5 - 10
23) Total weight (kg): 3450
24) Fork width (mm): 122
25) Fork thickness (mm): 40
26) Backrest height (mm): 1, 195
27) Fork length (mm): 1, 070
28) Engine model: A490BPG
29) Rate power (kW): 38
30) Rotate speed at rate power (rpm): 2, 650
31) Max. Torque (N. M): 148
32) Rotate speed at max. Torque (rpm): 1800~1900
33) Type of changing speed: CPC with clutch, CPCD with torque converter
34) Electronic Shift
35) Packing Details: 2 PCS/20CTN, 5PCS/40CTN
