Home > Products > 4X4 FORKLIFT 5TON > 5ton truck forklift, Full hydraulic forklift, CE and 4WD forklift truck

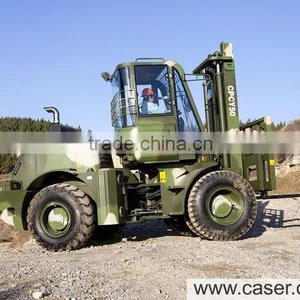

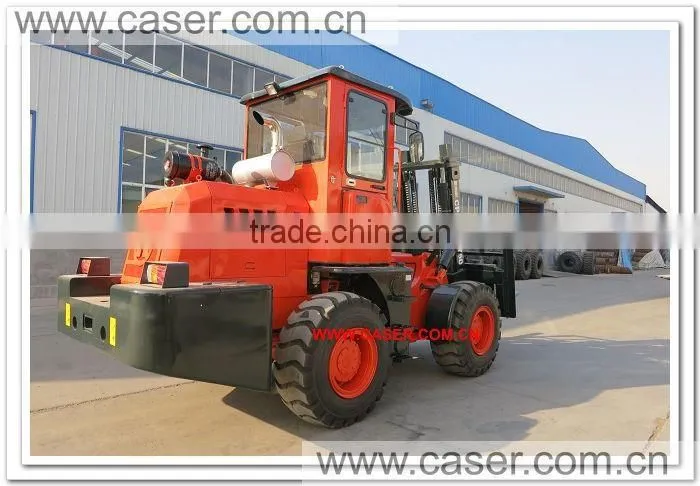

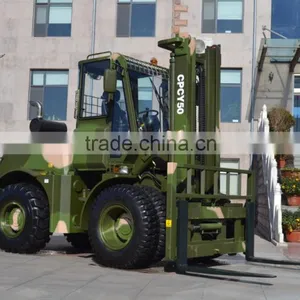

5ton truck forklift, Full hydraulic forklift, CE and 4WD forklift truck
- 300 Set / Sets per Month
- qiingdao
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | cpcy50 forklift |
Model Number: | cpcy50 forklift | Type: | Powered Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 5000kg | Max. Lifting Height: | 4305 | Min. Lifting Height: | 285 |
Fork Length: | 1050mm | Fork Width: | 130mm | Overall Dimensions: | 5700*2785*3125mm |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

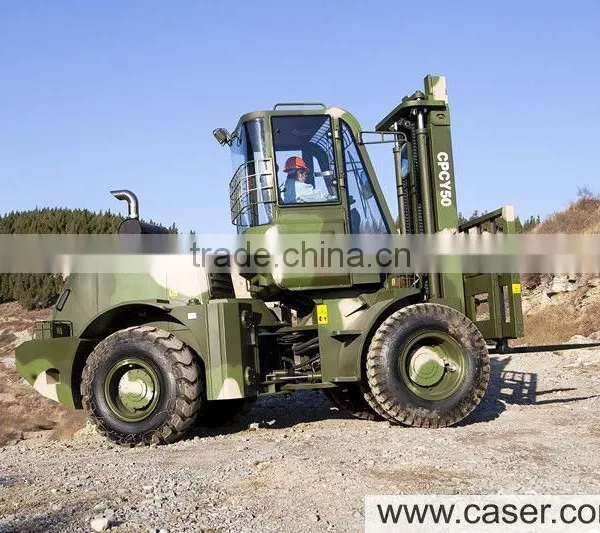

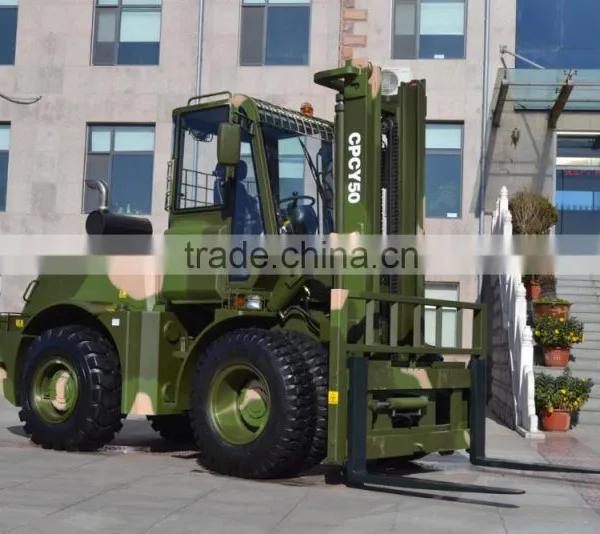

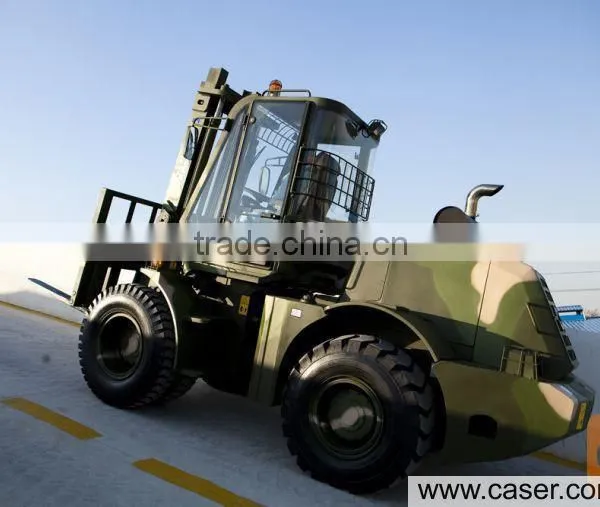

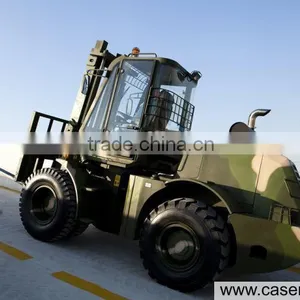

CPCY 50 FORKLIFT
No | Item | Unit | Standard model | Optional model | |
1 | rated load | Kg | 5000 | 5000 | |
2 | Length | No fork | mm | 4420 | 4420 |
with fork | mm | 5700 | 5700 | ||
3 | width | mm | 2185 | 2185 | |
4 | height | height of the mast | mm | 3100 | 3100 |
Height of the cab | mm | 3125 | 3125 | ||
full height when max lifting | mm | 4305 | 5805 | ||
5 | Wheelbase | mm | 2185 | 2185 | |
6 | Front overhang distance | mm | 880 | 880 | |
7 | front wheel tread | mm | 1575 | 1575 | |
8 | Rear wheel tread | mm | 1545 | 1545 | |
9 | ground clearance | mm | 285 | 285 | |
10 | Max lifting height | mm | 3000 | 4500 | |
11 | Free lifting height | mm | ----- | ----- | |
12 | Fully free lifting height | mm | ----- | ----- | |
13 |
forward / rear tilting angle of mast | (.) | 6/12 | 6/12 | |
14 | standard Dead weight (no-load) | kg | 9500 |
| |
15 | full-load Max lifting speed | mm/s | 300 | 300 | |
16 | Min turning radius | mm | 5920 | 5920 | |
17 | Max speed | Km/h | 20.0 | 20.0 | |
18 | Max climbing degree (full load) | % |
|
| |
19 | Max Drawbar pull(full load ) | kN | 30.0 | 30.0 | |
20 | Load center distance | mm | 500 | 500 | |
21 | engine model | ------ | XICHAI Engine | Cummins 4BTA3.9-C100 |
