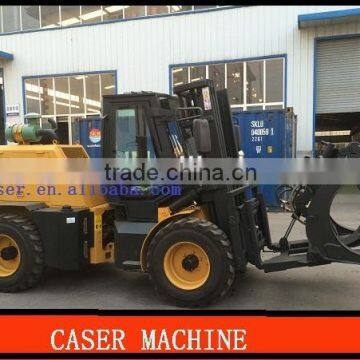

3500KG 4WD All-terrain Forklift/cross Country Forklift_____CPCY35, CPCY28

Name: 3500KG 4WD All-terrain Forklift/cross Country Forklift_____CPCY35, CPCY28
Brand: CASER
SKU: 116423379
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

CASER

Qingzhou Caser Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name CASER

Model Number CASER 3500kg Forklift

Certification CE

Type Other, Forklift

Specifications

CE
Rated capacity 3500kg

Qingzhou Caser TradingCo.,LTD

*Rough Terrain Forklifts
*4X4WD, 3500kg,
*A498BT1 engine
* Full-Free lift Mast, side shift

3500KG (3.5TON) Rough Terrain Forklift, with CE

-IT ADOPTD XINCHAI A498BT1 EURO III EMESSION STANDARD WHICH CAN FIT ALL EUROPEAN CONUTRIES AND OTHER COUNTRIED.

-IT IS FITTED WITH TRIPLEX MASTS WHICH HAS FULL FREE LIFT TRIPLEX MASTS ON AND EASY TO PILE GOODS IN CONTAINERS.

-IT CAN OPERATE IN 20GP,40GP AND 40HQ FOR LOADING AND UNLOADING GOODS.

-IT HAS A ARTICULATED FRAME JOINT WHICH CAN BE EASY WORK IN TURNING.

Model		CPCY35 Forklift(with CE)
Engine	Model	XINCHAI A498BT1 EuroIII emissions standard)
	Rated output(kw)	36.8KW
	Type	In line,vertical,water cooled,four-stroke
	Number of cylinders	4
	Cylinder bore	98
	Cylinder sroke	105
	Rated speed(r/min)	2200
	Method of starting	Electric
	Total displacement (L)	3.168
Rated load(kg)		3500
Load center distance(mm)		565
Lift height(mm)		4000
The freedom lifts the altitude(mm)		150
Max lifts the speed(full load)(mm/s)		372
Gate inclination angle (F/R)(°)		6/12
Moving velocity (idling)(km/h)		19
Max climbing power(%)		20
Overal dimensions(LWH)(mm)
Dead weight(kg)		3600
Min ground clearance(mm)		260
Wheel distance(mm)		1320
Axle-base(mm)		2040
Forks the tooth size(LWH)(mm)		107013045
Max traction(kgf)		2587
Max steering angle(°)		±35°
The after brige swing angle(°)		±12°
Min turning radius(mm)		4760
Drive Mean		Four Wheel drive
Detailed Info Equipped with European III emissions engine, Air-conditioning(warm and cold), Triple valve pilot control system, 30cm wider tubeless tires(12-16.5 or 14-17.5 tires), Side shifter, Quick change devices, Adjustable steering wheel, adjustable suspension seat, A wide range of accessories available
