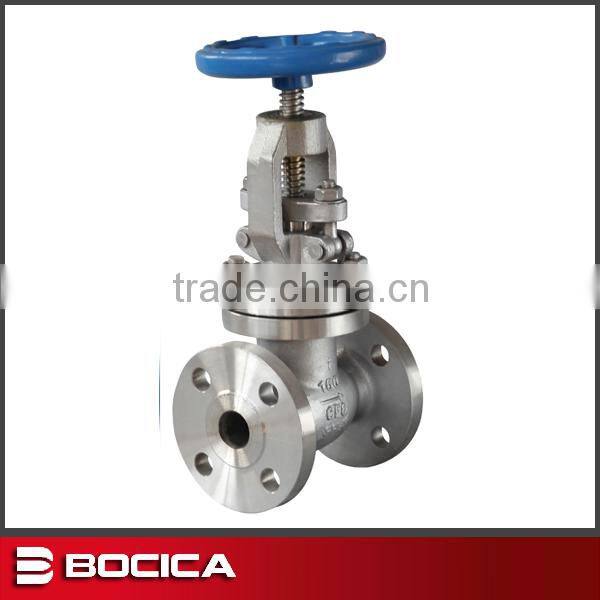

Help CenterFlanged Bolted Bonnet Cf8m Globe Valve
Related Products
-
China Professional Manual Cf8m Globe Valve, NPTUS$ 20 - 50MOQ: 20 Pieces -
Marine Non-rising Stem Cast Iron Globe Valve pn 16US$ 20 - 50MOQ: 100 Pieces
-
Marine Iron Casting Flanged End Globe ValveUS$ 20 - 50MOQ: 100 Pieces
-
High Quality API Standard Flanged Globe ValveUS$ 20 - 50MOQ: 100 Pieces
-
Manual Operate Flange End Angle Globe ValveUS$ 20 - 50MOQ: 100 Pieces
Main introduction for our flanged bolted bonnet cf8m globe valve
Specification
Design Description:
API 150-4500 Designs
Outside screw and Yoke
Bolted bonnet
Flexible wedge, fully guided
Renewable seat rings
Rising stem and non-rising hand wheel
Available with gear operator
Available with actuator
Material:
WCB, Carbon Stainless, or we can provide other material as per your request.
Ends:
Flanged ends Butt welding ends
Ratings (ANSI): 150LBS 300LBS
Parts material
|
NO. |
Parts name |
Material |
|
Stainless Steel |
Cast Steel |
||
1 |
Body |
A351 CF8 |
A216 WCB |
2 |
Disc |
A182-F304 |
2Cr13 |
3 |
Stem |
A182-F304 |
A182-6a |
4 |
Disc cover |
A182-F304 |
2Cr13 |
5 |
Spiral wound gasket |
PTFE |
Flexible Graphite |
6 |
The seal seat |
F304 |
2Cr13 |
7 |
Valve Cover |
A351-CF8 |
A216-WCB |
8 |
Bolt |
A193-B8 |
A193-2H |
9 |
Nut |
A194-8 |
A194-2H |
10 |
Packing |
PTFE |
Flexible Graphite |
11 |
Press kit packing |
Cf8 |
2Cr13 |
12 |
Packing plate |
Cf8 |
A216-WCB |
13 |
Pin |
410 |
35 |
14 |
Bolt |
A193-B7 |
A193-B7 |
15 |
Stem nut |
ZCuA110Fe3 |
ZCuA110Fe3 |
16 |
Screw |
410 |
A105 |
17 |
Hand wheel |
KTH300-8 |
KTH300-8 |
18 |
Nameplate |
L2 |
L2 |
19 |
Nut |
B8 |
A194-2H |
20 |
Washer |
410 |
Q235A |

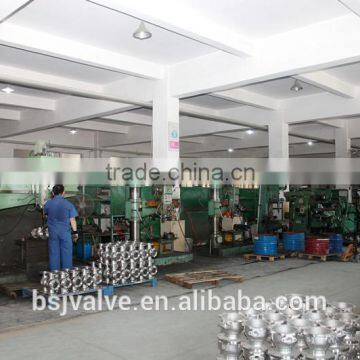

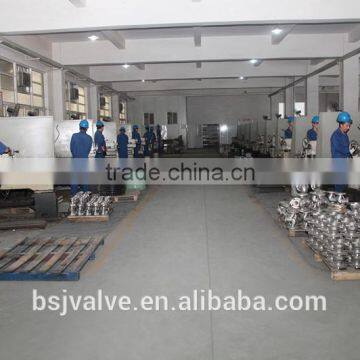

Our processing for industrial valve Cast Steel Globe Valve:
Recommend cf8 globe valve products:
We accept trail orders and OEM/OEM order for all our globe valves, gate valves, ball valves, and other valves.
------------Thanks very much for your reviewing!---------------
