Home > Toys > Remote Control Toys > RC Car > PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM

PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM

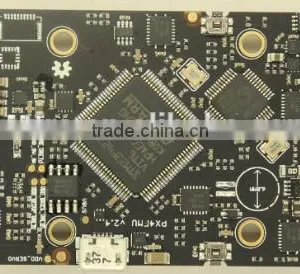

PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM thumbnail-1

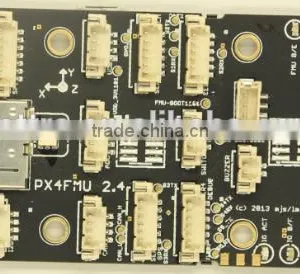

PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM thumbnail-2
PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM thumbnail-3
PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM photo-1
PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM photo-2
PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM photo-3
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Airplane
Power:
Battery
Radio Control Style:
RC Hobby
Contact Supplier Request Quote Chat Now
Shenzhen Bater Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Airplane
Power Battery
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name NO brand
Model Number Pixhawk 2.4.3

PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM

Product Description

Specification:

Pixhawk 2.4.3

 -Weight:38g
-Size:81.5mmX50mmX15.5mm
-PCB:6 layers turmeric
-CPU:32-bit STM32F427 Cortex M4,with hardware floating-point processing unit.
         Dominant frequency: 168MHZ,256K RAM,2M Flash.
         32-bit STM32F103 backup coprocessor.
-Part:5 UART,1 of them compatible with high voltage,2 of them with hardware flow control.
         2 CAN
         Spektrum DSM/DSM2/DSM-X satellite receiver compatibleinput.
         Futaba SBUS compatibleinput and output
         PPM signal input
         RSSI(PWM or voltage)input
         I2C
         SPI
         3.3ADC and 6.6VADC input
         External MICRO USB port
Features:



Open source flight controller



32-bit ARM CortexM4 advanced high-performance processor, you can run NuttX RTOS real-time operation system.



14 PWM/steering engine outputs (8 of them have security and manual control functions,and others compatible with high power assist them.)



Rich peripherals (UART, I2C, SPI, CAN).



Redundant design



Backup System Integrated mixing functions, provide automatic and manual mixing mode.



Redundant power inputs and automatic failover.



External security button makes it easy to start the motor.



Multicolor LED lights.



High power,multi-tone buzzer.



Micro SD,prolonged high rate to record flight data.

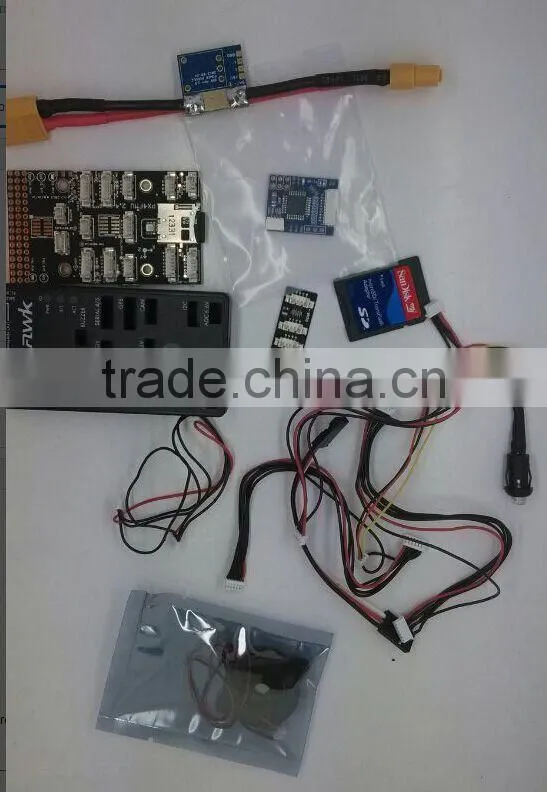

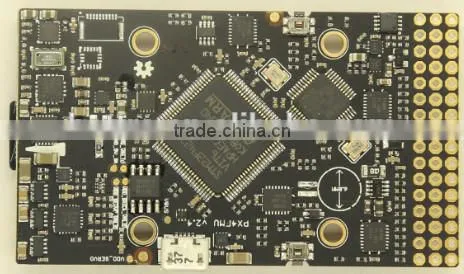

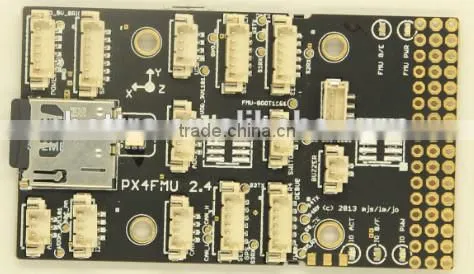

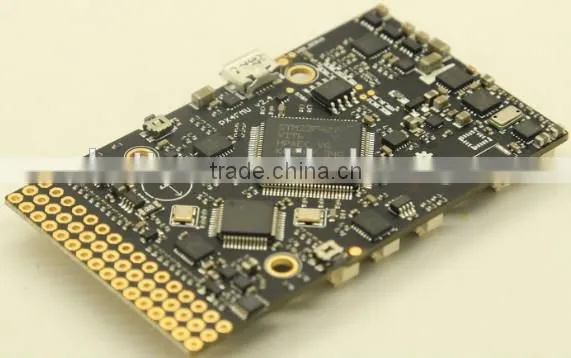

Picture:

 PX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARMPX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARMPX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARMPX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARMPX4 Pix 2.4.3 Pixhawk Flight Control Board 32Bit ARM

Packaging & Shipping

Shipping:









Our Services

Flight Controller Board Factory!



PDB&Flight Controller Board(OpenSource) Custom-Made Service is available anytime!





Company Information



Shenzhen Bater Technolgy Co., Ltd. is an experienced exporter of RC products.

We specialize in providing RC Flight Control Board,ESC Speed Controller,Servo,Multicopter Receivers and RC Multicopter Accessories.

We have extensive experience in foreign trade and our products have been exported to over 30 countries and areas, such as USA,South America ,Europe and Asia.
To supply good quality products, efficient delivery and reliable after service is our mission.
To build win-win cooperation is our business objective.
Your satisfaction is our best reward and We will do our best to meet your requirements.
We hope to establish long-term business relationship with RC modelers all over the world.
Welcome to contact us for details.
