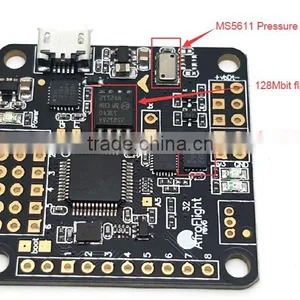

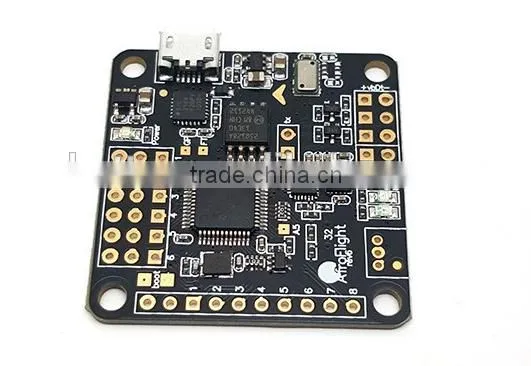

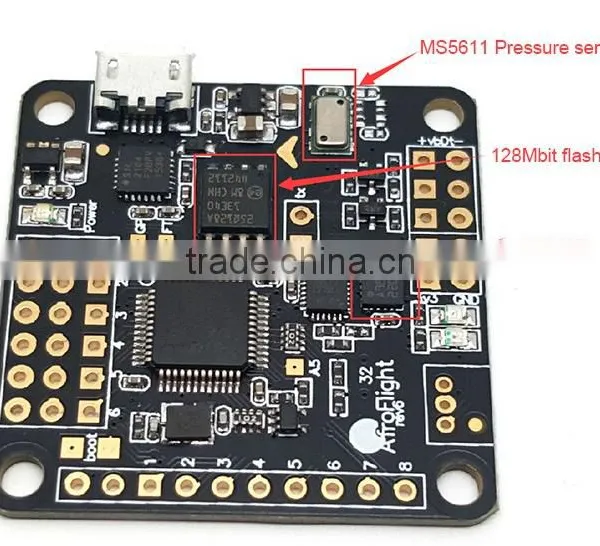

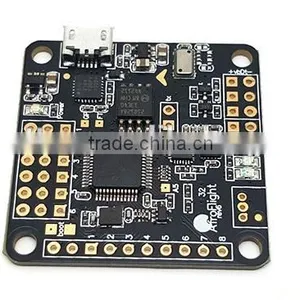

Acro Naze32 Rev6 Flight Controller Board for Quadcopter
NOTICE: Cleanflight does not (yet) officially support rev6. Support is expected in version 1.11. For further updates please see the corresponding issue on Github /cleanflight/cleanflight/issues/1321.
Nightly builds from 2184 onwards should have experimental rev6 support. Please use with caution /builds/cleanflight_cleanflight/
Specifications:
- Revision 6
- STM32F103CBT6 32-bit ARM Cortex M3 processor (72MHz, 3.3V)
- Invensense MPU6500 MEMS accelerometer + gyro
- BMP280 barometer
- Built-in Micro-USB for programming/firmware update
- 36x36mm size
- 30.5mm mounting holes
- ~5 gram weight w/o headers
- 16V input capable voltage regulators
Features:
- USB on right side
- PPM/PWM input as through-hole
- 3.3V, I2C on standard-size headers
- Fully pinout compatible with rev5 accessories (OSDoge etc)
- SBUS Inverter
- Spectrum satellite
- 16mbit flash
Tips:
- Connect the board via USB to test before soldering any pins to the board
- The 5V from USB will be distributed to the entire 5V rail. This means that you can power your receiever over USB. However this also means that your ESCs and motors may recieve power.
- ESC calibration should be performed in BLHelisuite or by radio commands rather than in Baseflight/Cleanflight

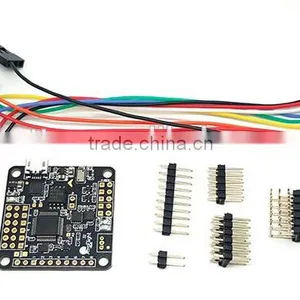

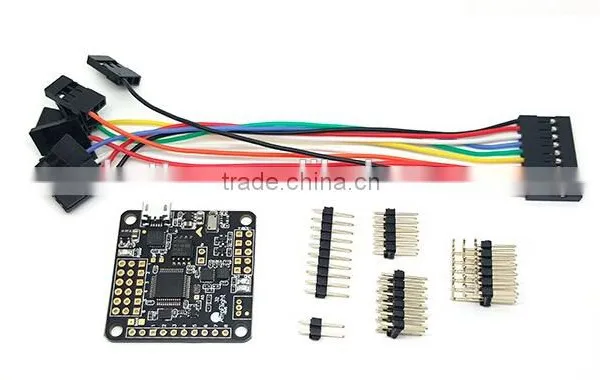

Package includes:
- 1 x Acro Naze 32 rev6 flight controller board
- Right angle pin headers
Acro Naze32 Rev6 Flight Controller Board for Quadcopter
Acro Naze32 Rev6 Flight Controller Board for Quadcopter
Flight Controller Board Factory!
PDB&Flight Controller Board(OpenSource) Custom-Made Service is available anytime!
Acro Naze32 Rev6 Flight Controller Board for Quadcopter
