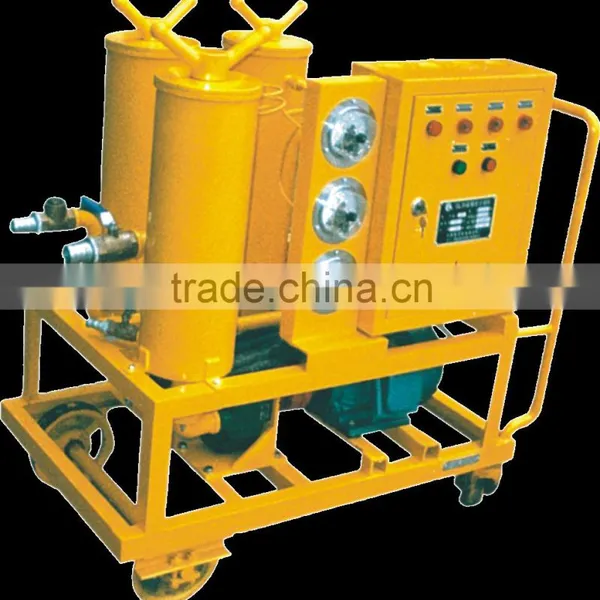

Three Stage Vacuum Oil Purifier/Oil Filter for Insulating Oil
Function:
GL series three stage oil purifier is mainly used in the filtration for all kinds of oils. It is suitable for filter mechanical impurity and other powder grain. It is portable and stable, widely used and long liftime, high filteration precision and stable. So the three stage oil purifier is widely used in the filed of electricity, railway, metallurgy, steel rolling, aviation, industrail and mining etc, to filter transformer oil, hydraulic oil, turbine oil,lubricant oil and so on.
Technique Index:
| Name | Unit | 32 | 50 | 80 | 100 | 150 | 200 | 300 |
| Flow rate | L/min | 32 | 50 | 80 | 100 | 150 | 200 | 300 |
| Cleanness | NAS1638 | ≤6grade | ||||||
| Total power | KW | 0.55 | 0.75 | 1.1 | 1.1 | 2.2 | 3 | 4 |
| Working pressure | Mpa | ≤0.5 | ||||||
| Power supply | 50Hz,380V(as request by customer) | |||||||
| Head of delivery | mm | ≥15 | ||||||
| Gross weight | KG | 130 | 150 | 170 | 180 | 250 | 300 | 380 |
| Overall dimension mm | Length | 1000 | 1100 | 1250 | 1300 | 1400 | 1500 | 1600 |
| Width | 450 | 500 | 600 | 700 | 800 | 900 | 950 | |
| Hght | 1000 | 1100 | 1250 | 1300 | 1400 | 1500 | 1600 | |

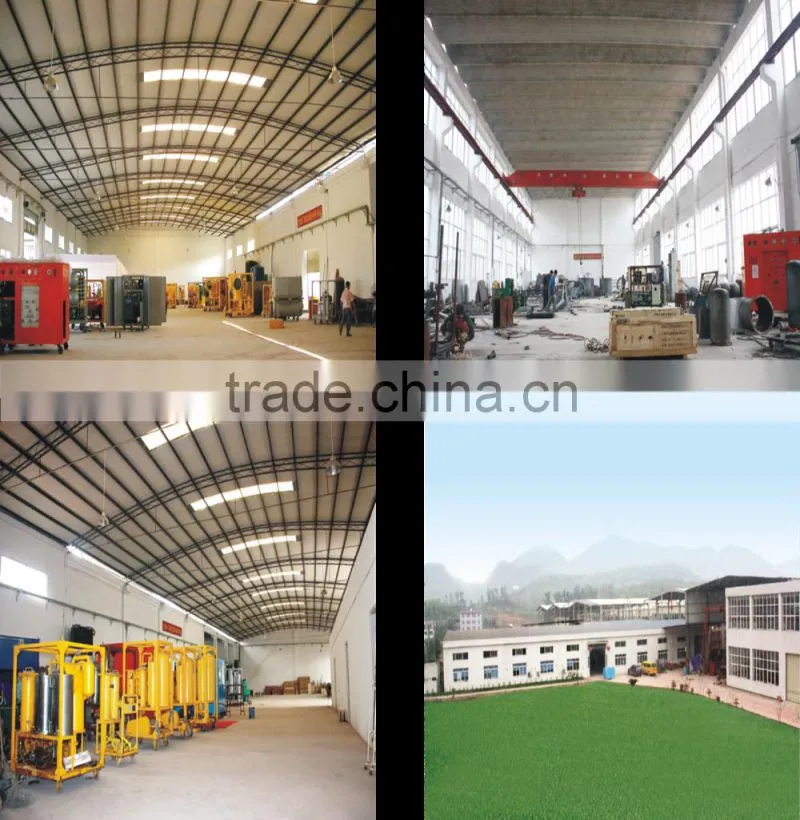

Fengyu Company:
Founded in 1985, Chongqing Fengyu Electric Equipment Company Limited is a global leader in the production of biomass gasification equipment, gas generator set, oil filtration and purification equipment.We produce 200 different types of oil purifier, air dryer and SF6 retrieving devices. Our highly reputable products are widely used in the fields of power plant, machinery, transportation, petrochemical and military.
