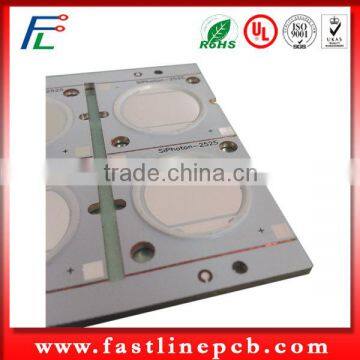

High quality low cost metal core PCB manufacturer
- 20000 Square Meter / Square Meters per Month
- Shenzhen Guangdong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Fastline | Model Number: | Fl58622 |
Number of Layers: | 4-Layer | Base Material: | Fr4 | Copper Thickness: | 1oz |
Board Thickness: | 1.5mm | Min. Hole Size: | 0.1mm | Min. Line Width: | 0.1mm |
Min. Line Spacing: | 0.1mm | Surface Finishing: | HASL lead free |
Packaging Details
Inner packing : Vacuum packing,Plastic bag
Outer packing : Standard carton packing
Product Description
Specifications
1.Fast Supply metal core pcb2.China low cost pcb manufacturer
3.stable quality
4.100% Test
5.UL ROHS SGS ISO
Fastline High Quality and Low cost metal core PCB :
Features-Our Products Advantage
1. We have many years experience in metal core PCB and pcb field.
2. Big scale of producing makes sure that your purchase cost is lower.
3. Advanced production line guarantees stable quality and long life span.
4. Design and produce almost any PCB as your requirement.
5. 100% test for all products
Fastline Product Exhibition
Inner packing : Vacuum packing,Plastic bag
Outer packing : Standard carton packing
Shipping type : UPS , DHL ,FedEx , EMS, China Post Air Mail etc. You can choose the shipping cost as you want .
Can we know your factory manufacture capability?
Sure , please check the sheet below :
TECHNICAL DETAILS OF Fastline MC PCB | |
MATERIALS | Aluminum |
MAXIMUM LAYER COUNT | 4 Layers |
MAXIMUM PANEL SIZE | 17” x 23” (432 x 584 mm2) |
MIN. BOARD THICKNESS | 1.0mm Al, 4 mils (0.1 mm) FR4 |
COPPER CLAD (inner) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz |
COPPER CLAD (outer) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz |
SURFACE FINISHES | ENTEK 106A, Immersion Gold, HAL, immersion silver |
SOLDER MASK | LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA |
MINIMUM TRACE (width) | 12.0 mils (0.30 mm) |
MINIMUM TRACE (spacing) | 12.0 mils (0.30 mm) |
MINIMUM PAD-TO-PAD TOL. | ± 3 mils (± 0.76 mm) |
HOLE SIZE TOLERANCE (NPTH) | ± 2 mils (± 0.05 mm) |
HOLE SIZE TOLERANCE (PTH) | ± 3 mils (± 0.076 mm) |
MINIMUM HOLE SIZE | 20 mils (0.50 mm) |
OUTLINE DIMENSIONAL TOL. | < ± 10 mils (0.25 mm) |
IONIC CLEANLINESS | < 5 mg/in2 of NaCl (0.775 mg/cm2) |
IMPEDANCE CONTROL | ± 10% (Differential) |
WARPAGE | < 1% |
Can You Show Me some Picture of the factory?
What's your products application ?
Why Choose you ?
1) We have professional research team.
2) No MOQ,samall order are aslo welcome,From Prototype to Mass production.
3) All products are 100% tested working before sent to you.
4) One stop PCB solution (PCB , PCB Assembly and SMT stencil)
5) We have professional sales team, so please do not hesitate to contact us if you have any question!
Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB and work out the PCB files, then produce for you.
Q4: What is the lead time?
A4:Sample needs 4-5 days, mass production needs 7- 10 days, according to the order volume.Also we can provide quick time service 1-2days.
Q5: What payment terms do you have?
A5: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Q6: How about the shipping method?
A6:We have stable cooperationship with DHL, Fedex, EMS, UPS, TNT and other air flight way or sea freight company.Usually we will quote you the most reasonable shipping method according to your country, good types, weight and requested delivery time.
We shall appreciate if you could write us details of your order quantity, country, sea port/air port before you send us inquiry. In this way we can offer you the best and mostaccurate price.
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
Please add Skype : fastlinepcb002
Company Profile
Fastline is a Leading PCB manufacturer in China.serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
Contact Us
- Shenzhen Fastline Electronic Material Co., Limited
- Contact nameJenny XU
- Phone86-755-33939100
- AddressFuYong Shenzhen,Guangdong
