Specifications
rgb module with lens advertising lightbox display 10w led module SL-BL005-1001. 10W
2. DC 24 V
3. 800-900LM
4. CE UL
rgb module with lens advertising lightbox display led module flat 10w cree led module
1. Specifications:
Model |
LED | Power | Voltage | Lumen | CCT | Angle | Size |
| SL-BL005-100 |
Cree or Osram |
10W | DC24 ±0.5V | 800-900LM | 6000-7000K | 20*60/15*60 |
360*23*16mm |
2. Features:
SL-BL005-100 Cree led modules is very competitive upscale led strips widely used in frame light box,
single or double sides advertising box, commercial establishments and private places.
Excellent lighting effect and energy saving capacity are the top advantages that
replace the traditional light.
It is easy installation and energy saving,uniform light effect and no dark area. Cree chip LED strip light bar is popular in domestic and overseas market.

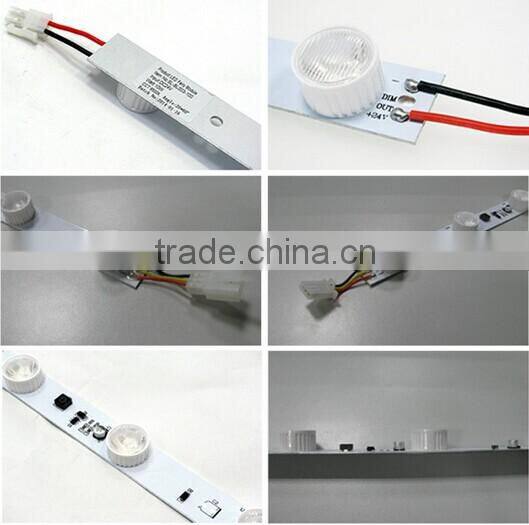

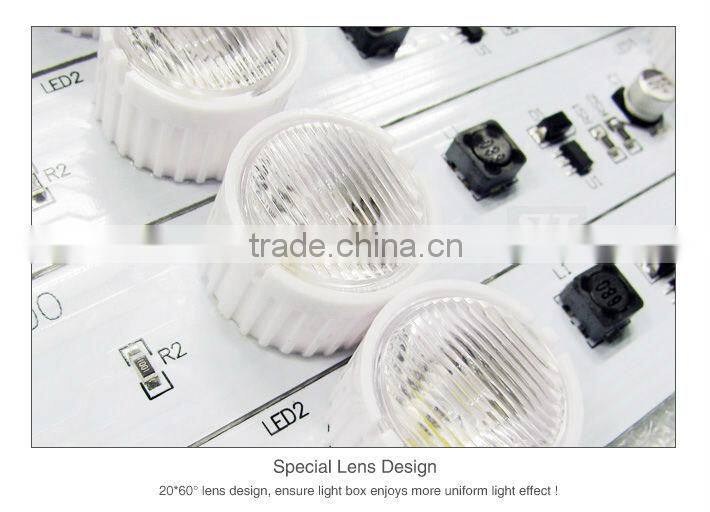

3. Product details:

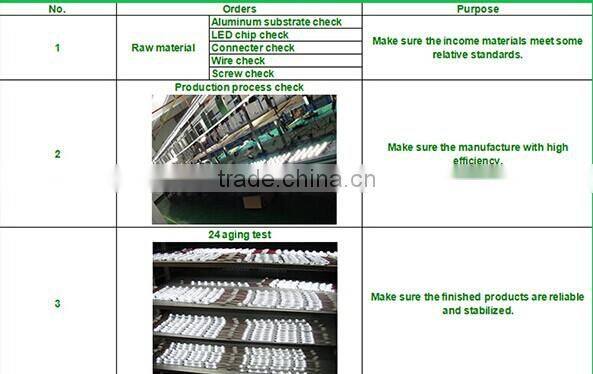

4. Quality control:
1. Before producing, we would strictly check the material, color, wick,etc.
2. Aging for every light about 12-24hours
3. Our salesman would trace every phase of production from the beginning.
4. We have a QC team, every piece product sould be inspected before packing.

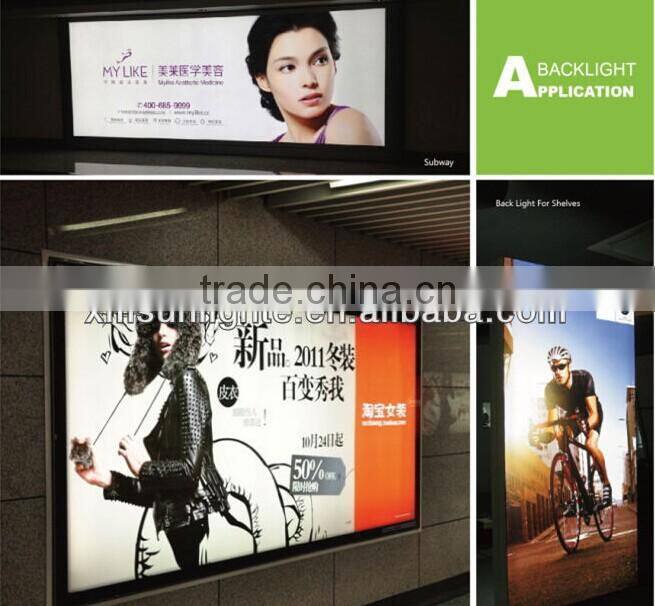

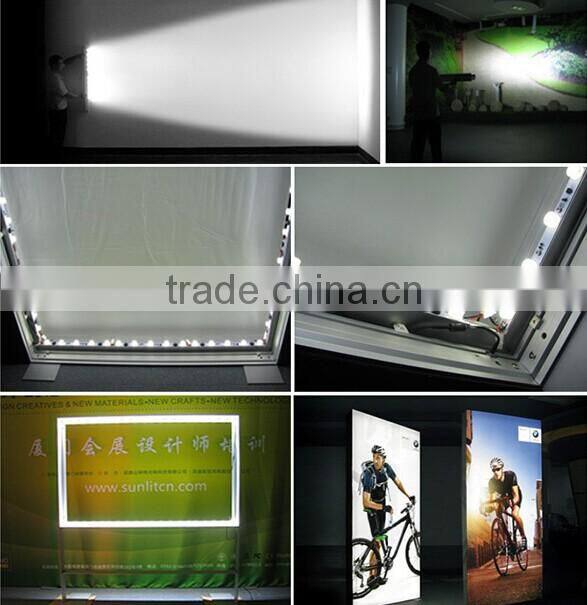

5. Applications:

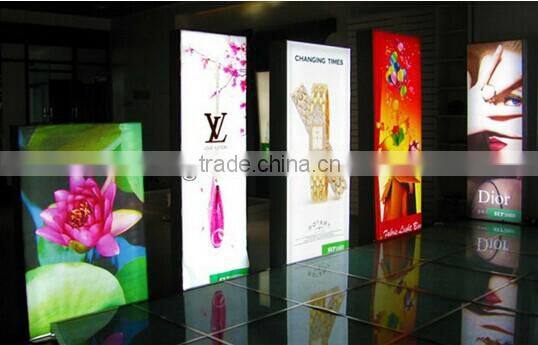

LED Module is widely used in single or double sides light box, advertisement places in airport, bus stop and station. It is easy installed and green. No need to place LGP in light box when using it. No dark area.
6. Instalation:
Un-dimmable Dimmable

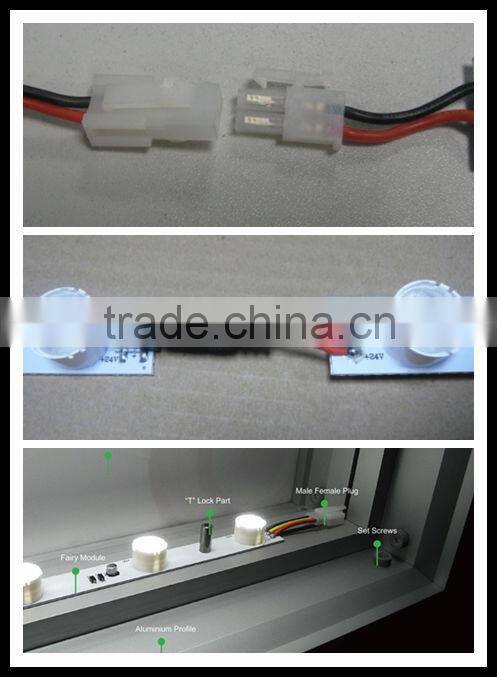

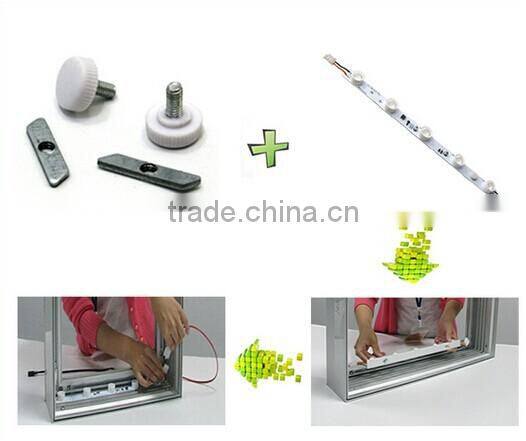

LED light Installation construction:
1. The cree led module should be installed on the sides of the light box, and
on aluminum profile for heat dissipation , otherwise, it will shorten its life span
2. If the width of the light box is within 1.2m, you can just install the cree led module on 2 sides, if wider than 1.2m, you should install the cree led modul on four sizes of the light box.
3. The maximum size of the light box is 3m*3m, if the light box is much bigger, there will be a dark area in the middle of the light box.
4. The cree led module should be used in the light box whose depth should be at least 7cm for single side light box, or double sides light box, the depth should be at least 12cm.

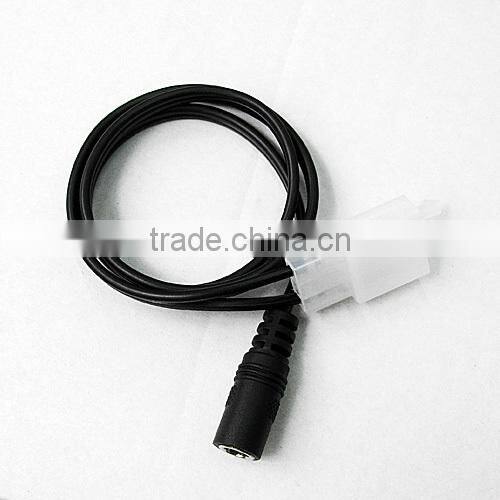

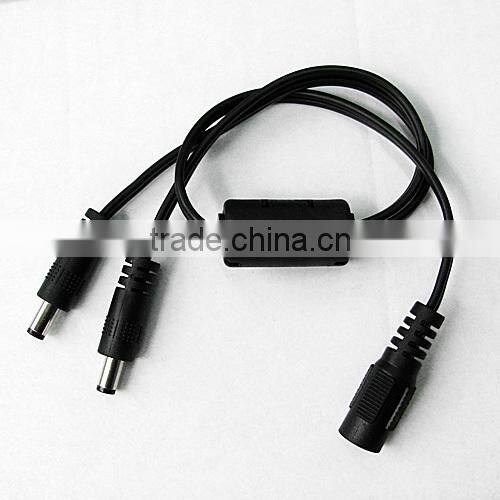

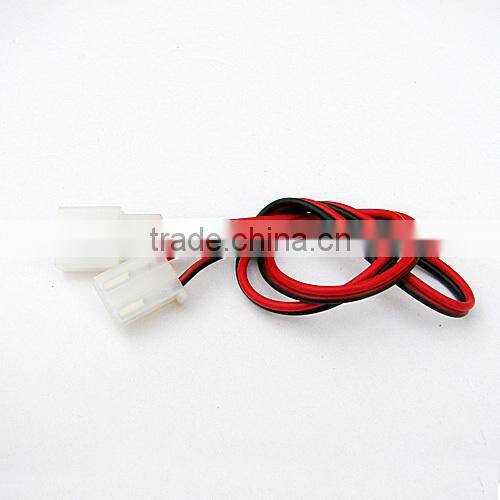

5. With Male and female plug terminal, easy installation,simple and beautiful
6. Non compression on the LED module and it’s component.
7. During installation pls protect the circuit on the PCB board,or the lamp bean doesn't work. To prevent too high temperature PLS do remember install the led module on the aluminum profile, or it will lead to serious luminous decay.
8.During installation PLS turn off the power, and should comply with corresponding component security standard. Only electricians or professionals can install it. To prevent short circuit. PLS remember turn off the power before installation.

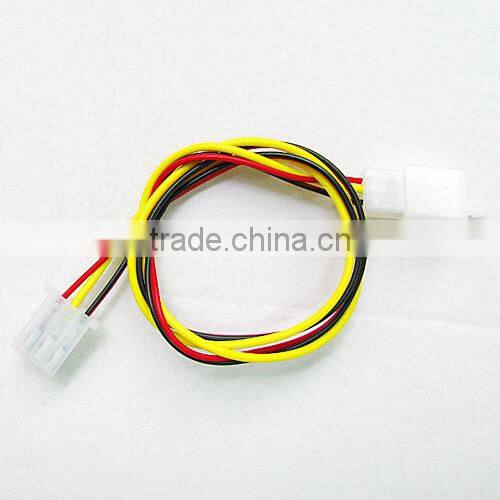

9.The middle and yellow color wire is DIM wire, Don’t need connect the DIM wire if your LED modules have no dimmable requirement.
10.When install a large qty, The PCB board should be in the same direction, guarantee connect the PCB board +24V with +24V, DIM with DIM, and negative- with negative-. Adjust the PCB board position and lock with screw on the aluminum profile.
11.The input voltage of the LED module is DC24V. PLS don’t connect the LED module with AC220V directly. The PCB board size is 470*23*16mm, the power is 12w, PLS note that connect with input DC24V+ with PCB board+, and input DC24V- with PCB board -, reverse connection is dangerous and not allowed.
12.When install a large area, pls pay attention the maximum power of the power supply and uniform distribution of each circuit, maximum 5 pcs/circuit, and you had better reserve 20% power supply. EX.150W 24V power supply, maximum can install 12pcs, and you had better install 10pcs(12W).
7. Shipping and Packing:
8. CAUTION:
1.Dry location only.
2.Do not place any object on the light fixture.
3.Do not touch the place of led light source,protective measure is needed.
4.Indoor use only.
5.Static-free protection must be done for the light fixture.
6.Prevent short circuit by ensuring that there is no overload.
7.Always disconnect the power supply before adjusting or moving the light.
9. Why clients choose us?
1. Good quality
2. Resonable price
3. Safety packaging
4. Short lead time
5. One-Stop service
10. About us:

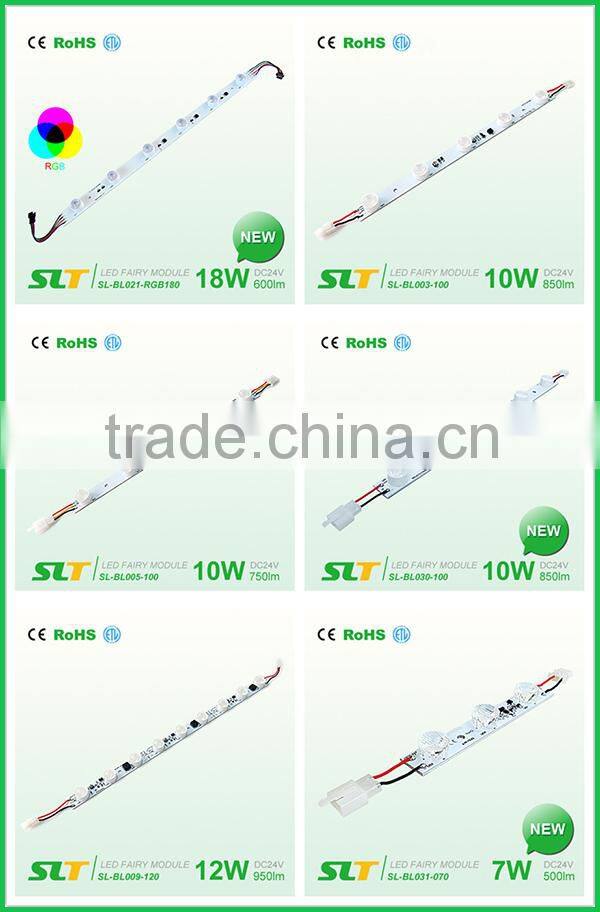

We are professional advertising led light manufacturer, including led backlight, led light bar , led backlight ladder for light box, advertisment. Our led light bar have different led for your choice, like CREE, OSRAM, EPISTAR, etc. And we adopt easy male and female connector, it is comvenient to install. Our cree led module saves time and saves cost for you. Cree led module is the best solution for the backlight of light box.
Our factory established in 2004, which is located in beautiful Xiamen City.
We have about 10 years experience in export and products are sold to America, Europe, Australia and Middel East, etc. We are a professional and reliable suppliers.
Superiority:
We are the professional manufacturer of adertising lights, such as, trade show display light,exhibition arm light, pop up light, LED module and LED Backlight. We have been in this line for about 10 years. Based on our experience, with our reasonable price, high quality and considerate service. Our products enjoy the high reputation in our domestic and oversea market.
♥ We possess around 30 technical achievements, 23 of them have been patented.
11. FAQ:
1. What the depth of the light box should be if we want to install the LED module in the light box?
For single side light box the depth should be at least 80mm(the distance from the center of the lens to the fabric should be at least 70mm), for the double sides light box, the depth should be more than 120mm(the distance from thecenter of the lens to the fabric should be at least 60mm).
2. Are the LED modules difficult to assemble?
Not at all. You can install the LED module in the light box with limited skills in a matter of minutes.
3. Do I need an electrician to install the LED modules and power suppliers?
If you have, that is better, but if there is no elctrician, that is also no problem.. By redesigning all parts with the plug-and-play principle, anyone can install the LED modules and power supplies.
4. How many LED module should be installed in a 1 square meter light box?
4pcs 10W 5pcs LED LED module is enough, if you need very bright light effect, you can install 8pcs 10W 5pcs LED LED module in the light box.
5. What is the weight of the LED modules?
The 9pcs LED 12W LED module is only 250g.
6. What kind of LED is used in the LED module?
Normally CREE and Epistar, or Samsung, Osram . Or can be customized.
7. What is the power consumption of a 1 square meter light box if it is installed 5pcs 10W LED module?
One power LED module is 10W, so if you install 4pcs in the 1square meter light box, the power consumption is 40W. If you install 8pcs in the 1 square meter light box, the power consumption is 80W.
8. How many amperes does it need?
One 10W 5pcs power LED module needs 0.42A, one 7W 3pcs 5pcs power LED module needs 0.292A, one 12W 9pcs power LED module needs 0.5A. But the amperes of the power supply should be 20% higher than the amperes of the LED modules.
9. Can the LED module be used without the aluminum profile?
No. Installed on Aluminum profile will lead a better heat sink. The lifespan of LED modules will be longer.
10. How many LED modules can I connect most in series?
The 5pcs 10W LED module can connected 5pcs most in series, the 3pcs 7W LED module can connected 7pcs most in series, the 9pcs 12W LED module also can connected 5pcs most in series.
11. Client talks about lumens, Lux and Candela: what do we use?
A candela is an international light measuring unit, lumen is the radiation of this Candela(candle). If 1 Lumen lights the surface of 1square meter, that is one Lux. But we only use Lux.
12. What is the maximum size if I want to use the LED module in the light box?
The width should not be wider than 6m, the length is not limited.
13. Are there visible dark spots in the middle?
No. The lighting, even in extremely large light box is surprisingly uniform. When we measure output with a Lux meter, there is very little variation.
14. Can you dim the LED module?
Our standard power LED module is not dimmable, but we do have one available with different electronics that is dimmable, which can be controlled by a remote controller or just a manual swith.
