1.Feature of LED panel backlighting for aluminum light box
1.Super bright illuminant(imported SMD2835),isolated driver(PF>0.90),good heat dissipation,low luminance decrease,all to achieve high bright,no dark area,first class light efficacy.
2.Unique honeycomb structure design,connentient stallation and stock,can be used in various range of advertising in order to achieve super effect of publicity.
3.Instant start,no flickering,no humming,wide angle of deflection with uniform light distribution,dimmable model can be customized.
4.Saving energy up to 80%,decress the cost of maintenance,so you don’t need to replace lamps frequantly any longer.
5.CE/ETL/RoHS/UL approved,make sure the good quality and safety.
2.Application of LED panel backlighting for aluminum light box
Indoor sign cabinets
Large advertising light boxes
Internally lighted billboards
Large signage display areas
Single & double signboard
Large poster light boxes
Bus station light boxes
3.Specification of LED panel backlighting for aluminum light box
| Model | SL-BM010-960 | SL-BM011-960 |
| Style | Single Side Lighting | Double Sides Lighting |
| LED | 2835 | 2835 |
| Working Current | 8A | 8A |
| Working Voltage | DC12±0.5V | DC12±0.5V |
| Watt/Pc | 2.4W | 4.8W |
| Watt/M² | 96W | 192W |
| Pcs/M² | 40 | 40 |
| Light Efficacy | 87.5LM/W | 87.5LM/W |
| Luminous/Pc | 210LM/PC | 420LM/PC |
| CCT(K) | 10000-14000 | 10000-14000 |
| Beam Angle | 120° | 120° |
| LED Quantity/Pc | 12 | 24 |
| Size/Pc | 500*10*2.5mm | 500*10*2.5mm |
| Size/Roll | 500*2000MM | 500*1000MM |
| CRI(Ra>) | 80 | 80 |

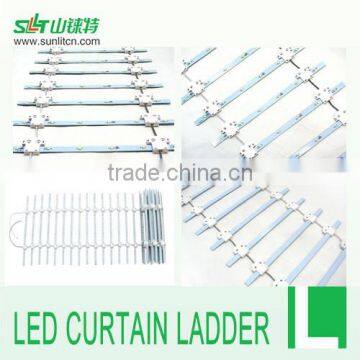

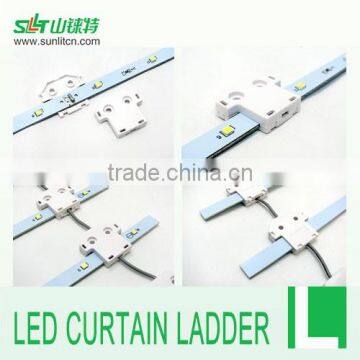

| Photo | |
|

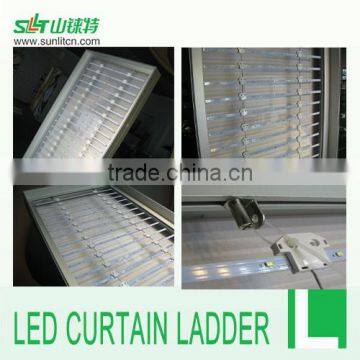

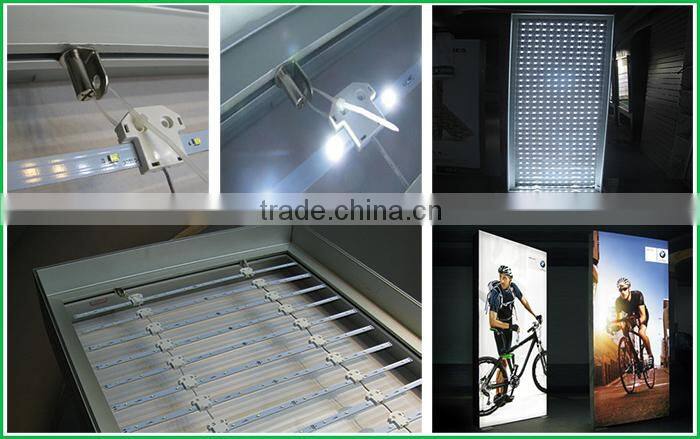

4.Installation of LED panel backlighting for aluminum light box
1.Non-mechanical compression on the LED ladder light board and its components,
2.To keep lamp beams working regularly, pls protect the LED ladder light strip board during installation,
3.Meet the requirements and safety standards of electronic components before installing LED light board (in the case of live work), to prevent short circuits pls don’t live operation,
4.Directly input 12V power.
5.Caution
1.Please read the specification first to make sure the using condition is fit.
2.Please shut off the switch before connect the product, then turn on.
3.Indoor use only.

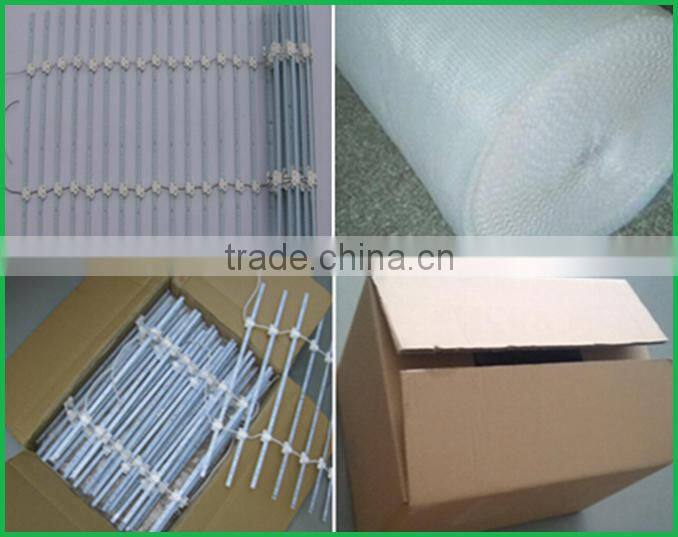

6.Packaging
Adopting bubble pack encase it,then put it in the box,be rest assured that export standard package suitable for voyage. Also can be customized by your requirment.
7.Delivery
1.Fast delivery:as well as other equipment for production and testing to ensure fast delivery for our customer.
2.We ship goods by UPS/DHL/FEDEX/TNT express,by air cargo,or by sea,depending on your actual requirements.
8.Quality Control
Every steps must be streit checked, all quality controls by our professional technicians.
9.Our Markets
10.Our Factory
11.Contact us
Thanks for your interest in our products.
As a professional manufacturer of LED lighting, we sincerely looking forward to establish win-win business relationship with you., please feel free to call or email us,details as follow:
12.Any questions please feel free to enquiry me directly,I will give you accurate answer immediately.
