SL-BM010-960 Epistar Chip SMD 2835 white LED module(10000-14000K,210LM/strip)

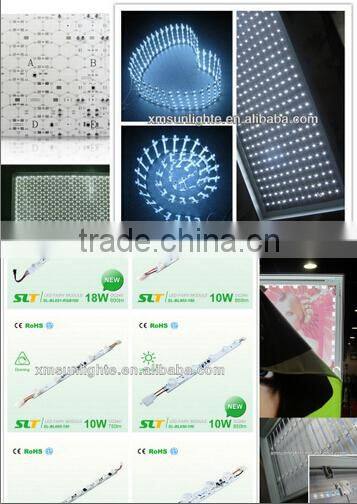

1. Other led back light options:
1. LED fairy module (Custom sizes and shape)
2. LED sheet/panel light (Slim, light weight, Sizes and shape cuttable service)
3. Lattice LED lighting( available double sided led, low cost)
4. Super bright LED back lighting(dimmer, color changing,cuttable)
Most of the led products are patented design, with unique outlook and reliable quality. totally with 23
patents, including invention, utility and appearance design.

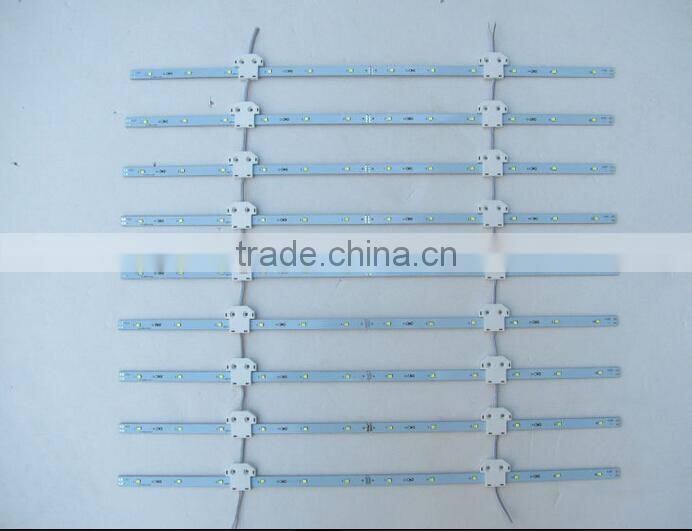

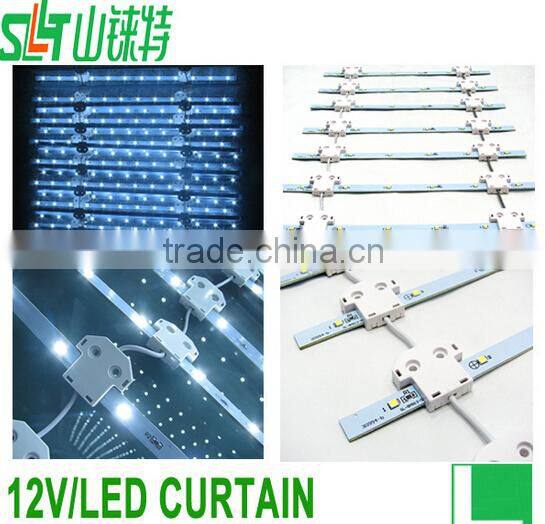

2. Details of Ladder backlight SL-BM010-960 (single side)
3. Specification:
Name |
Ladder backlight |
Model Number |
SL-BM010-960 (single side) |
Application Scope |
Direct type advertising backlight source |
LED Quantity |
12led/strip (40pcs/roll) |
LED Type |
Epistar--SMD 2835 |
Working voltage |
DC12V ± 0.5V |
Power consumption (W) |
2.4W/PC 96W per square |
Luminous Flux |
210LM/PC |
LED pitch |
LED spacing 4cm |
Strip to Strip distance |
LED strip spacing 5cm |
Linking strip in series/Roll |
40pcs/roll |
Beam angle (°): |
120° |
Color Temperature |
10000-14000K,can be customised |
Dimension |
led strip size:500*10*2.5mm, roll size:500*2000mm |
Body Material |
Single-side led, Glass Fiber Board |
Life Span |
>50,000hours |
Packing |
3pcs / bubble bag/CTN |
Protect type |
Non-water-proof |
Accessories |
Free connectors |
4. Advantages of SL-BM010-960 (single side)
l Light weight,easy to installation
l Low maintenance
l Uniform lighting,Unique honeycomb structure design,No dark spot be seen
l Green Lighting and thin lightbox
l good heat dissipation
l Affordable cost
l Cuttable
l CRI>80
l High efficiency
l Wide range colors are available
l Waterproof , dimmer optional
l Warranty 3years
l CE RoHs UL

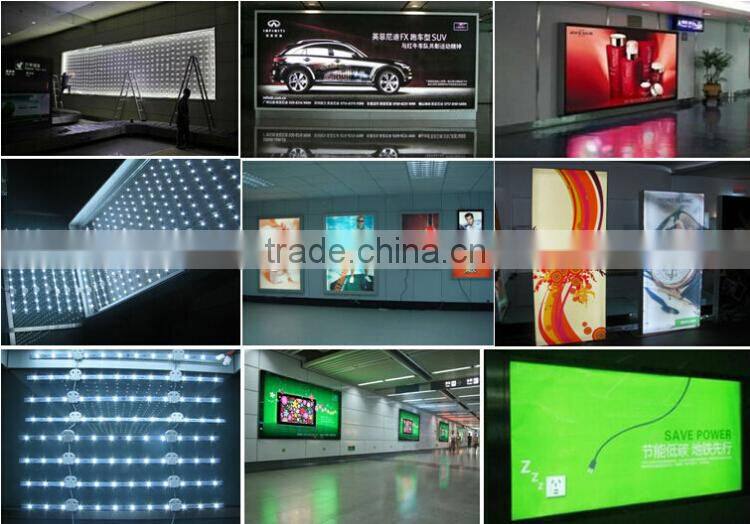

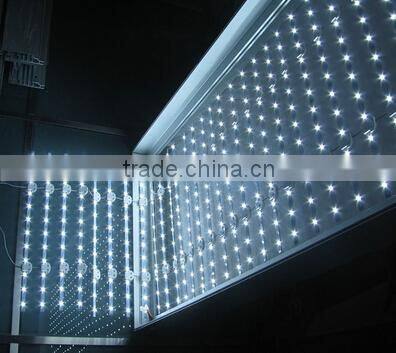

5. Application show cases of SL-BM010-960 (single side)
l light illumination is perfect for interior light box thickness 6-12CM,
l Hypermarket,
l department store,
l shops,
l subway,
l exhibition,
l movie theter,
l underground commercial street,
l underground passage

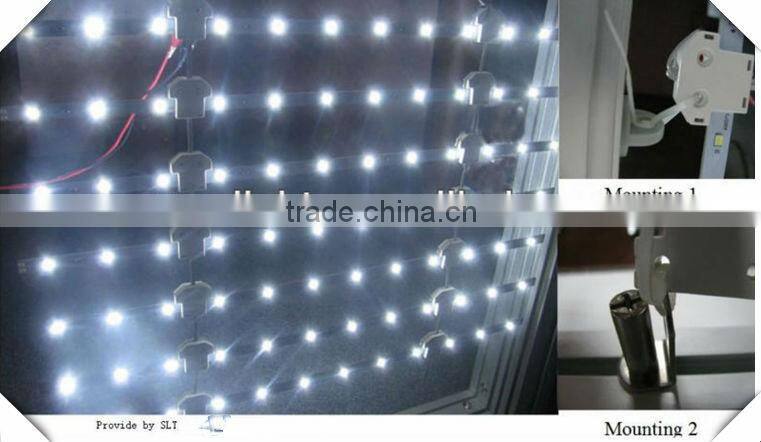

6. Installation of SL-BM010-960 (single side)
1.Non-mechanical compression on the folding work light board and its components.
2.To prevent lamp beams don’t work, pls Protect the folding work light board during installation,
3.Meet the requirements and safety standards of electronic components before
installing folding work light board (in the case of live work), to prevent short circuits pls don’t
live operation,
4. Directly input 12V power
CAUTION:
*.Please read the specification first to make sure the using condition is fit.
*.Please shut off the switch before connect the product, then turn on.
*.Indoor use only.

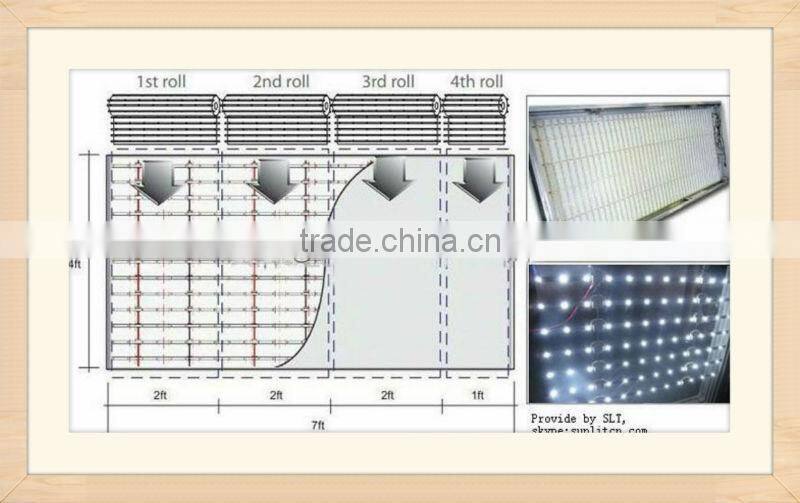

7. Drawing and wire connection:
8. Quality control:
1. Before producing, we would strictly check the material, color, wick,etc.
2. Aging for every light about 12-24 hours
3. Our salesman would trace every phase of production from the beginning.
4. We have a QC team, every piece product sould be inspected before packing.
9.Why clients choose us?
1. Good quality
2. Cheap price
3. Safety packaging
4. Short lead time
5. One-Stop service
10. Our services:
1.Small and sample orders acccepted
2.OEM accepted
3.Warranty 3years, replace the damage item during the guarantee period base on customer installed and powered the models properly
4.Response your inquiry within 12hours
5.Good after-sales service
6.Fast delivery after the order confirmed
7.Payment Term: TT,Western Union, Paypal all ok
11. Company info:
Our factory established in 2004, which is located in beautiful Xiamen City.
We are the professional manufacturer of adertising lights, such as, trade show display light,
exhibition arm light, pop up light, LED module and LED Backlight. We have been in this line
for about 10 years. Our products have exported to America, Europe, Australia and Middel East, etc. We are a professional and reliable suppliers.
Based on our experience, with our reasonable price, high quality and considerate service. Our
products enjoy the high reputation in our domestic and oversea market.
12. Contact:
Vivien Liang Mobile Phone: 0086-13606081736 Skype: vivienliang2008
