Specifications

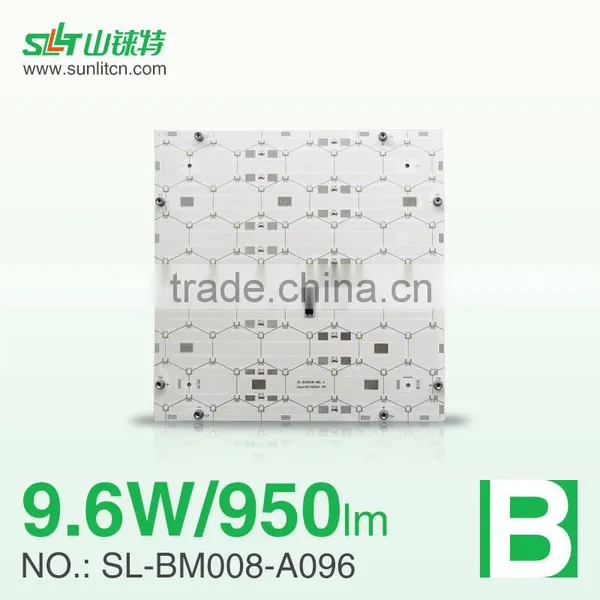

Square LED Module, led backlight panel,1. Watts: 9.6W
2. Voltage: 24V
3. Lumen: 950lm
4. OEM, ODM service
CE, Square LED Module Backlight, LED Backlight Panel, 9.6W

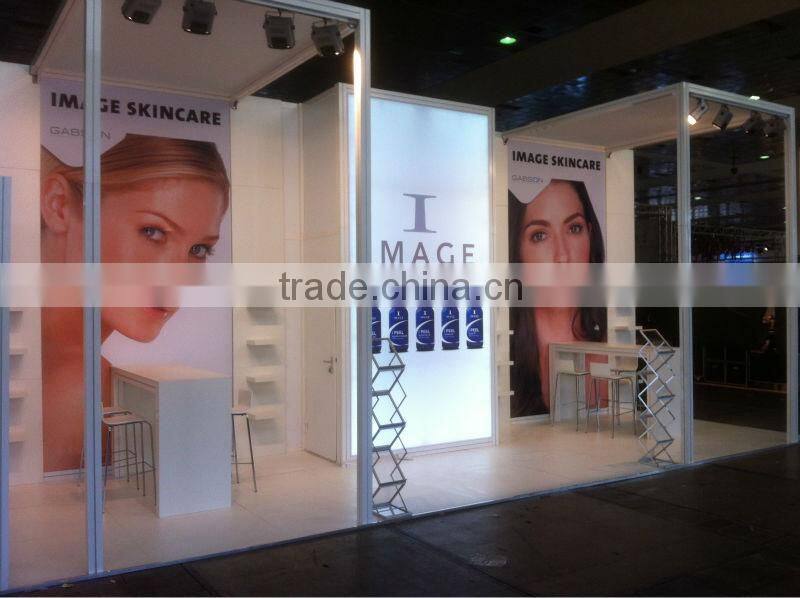

LED Backlight is a popular advertising media and commercial lighting. It is widely applied to one side light box in shopping malls, hotels, clubs and other commercial establishments, as well as airports, railway stations and other public places,
and even home places.
ADVANTAGES
* Dimming backlight panels can be customized to adapt to different occasions: bright, warm, soft ... controlled by you as you like, to improve the customer experience, and more energy-efficient.

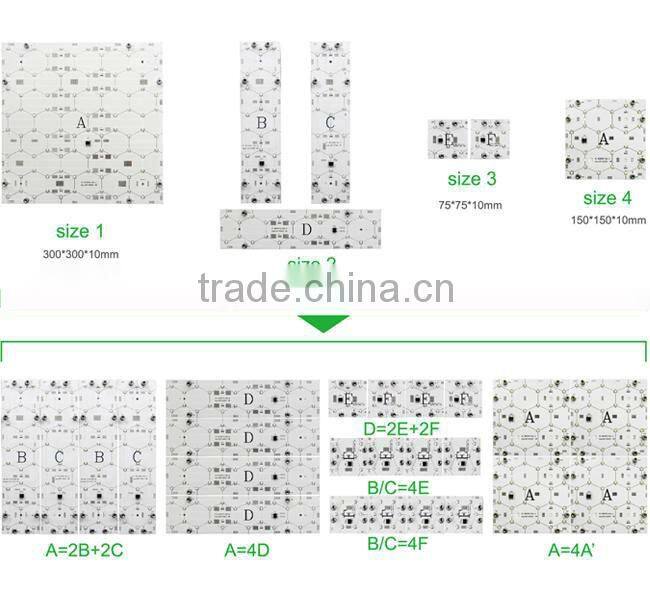

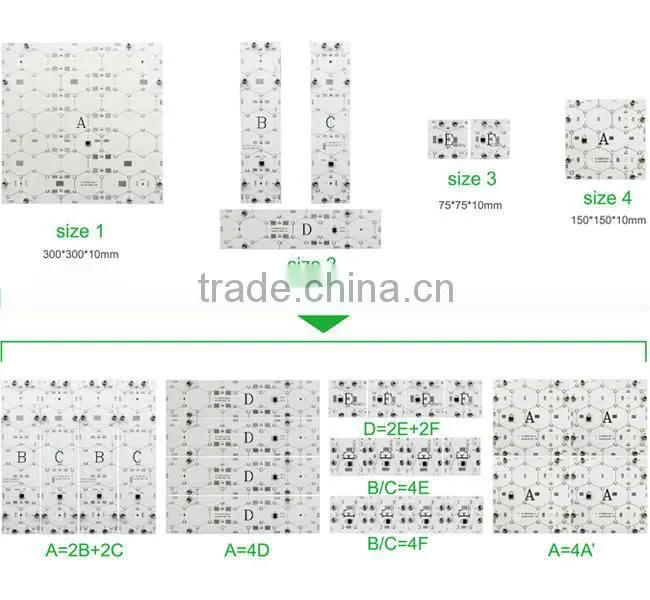

* Backlight panels of different models can be combined freely, to show the size and shape, and is no longer limited.The backlit module is also available for any bigger size of light box.
* Backlight panels used imported LED chip, which have up to 35000H long lifespan, so you don’t need to replace lamps frequantly any longer. This can greatly save your light source acquisition costs and the cost of electricity.
1.Non-mechanical compression on the LED light board and its components,
2. To prevent lamp beams don’t work, pls Protect the PCB light board during installation,
3.Meet the requirements and safety standards of electronic components before installing LED light board (in the case of live work), to prevent short circuits pls don’t live operation,
4. Directly input DC/AC24V power supply when there is no dimming remote. If it is installed with dimming remote, connect input terminal of the remote control with output DC24V of the power supply , then connect output terminal of the remote control with PCB board, as shown above single dimming connection, and then dimming and control can works.

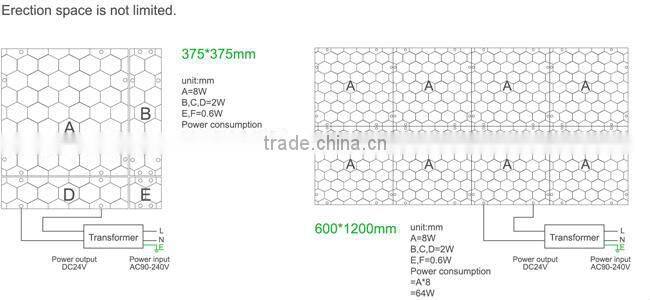

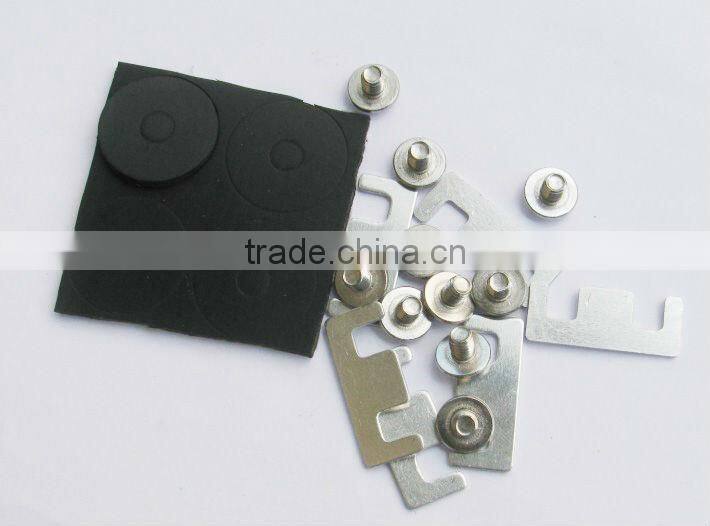

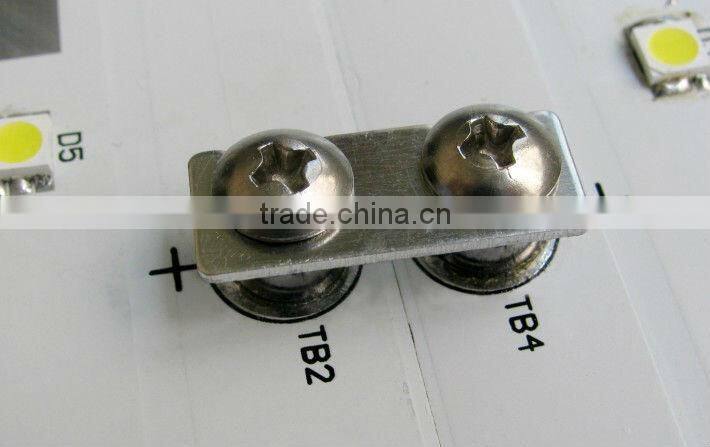

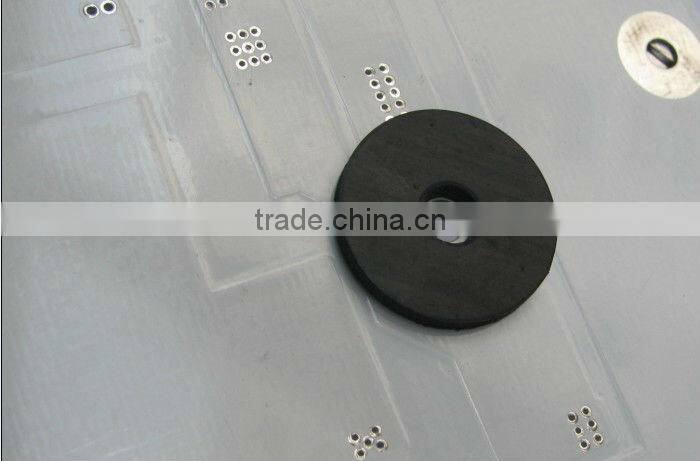

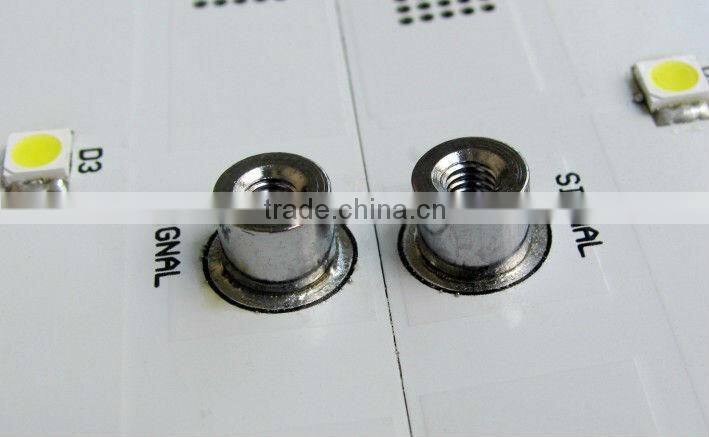

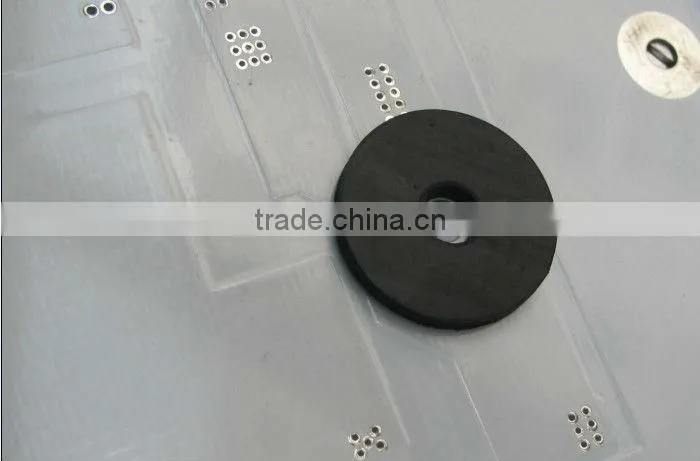

5. When install a large area, the PCB board should be put in the same direction, guarantee the PCB board positive+ to positive+, and negative- to negative-. Then connect the PCB board with E-type gaskets and lock with screws, Maximum 10 pcs per circuit, more than 10 pcs pls divide them in another one circuit.
6. Input voltage of every PCB board is DC24V, and can’t input AC220V directly. The power of 30x30cm board is 8W, PLS noted that connect input DC24V + of power supply with PCB board+, and connect input DC24V- of power supply with PCB board - , reversed connection is very dangerous and not allowed..
7. When install a large area, pls pay attention the maximum power of the power supply and uniform distribution of each circuit. EX.150W 24V power supply can supply maximum18pcs 30X30CM light board (8W).
More detail about installation pls feel free to contact with us.
CAUTION:
*.Please read the specification carefully,before installation pls ensure the application environment meets with the requirement.
*.Please shut off the switch before installation, and ensure the output voltage of power supply is DC24V
*.Indoor use only.
Why clients choose us?
1. Good quality
2. Resonable price
3. Safety packaging
4. Short lead time
5. One-Stop service
Model |
SL-BM008-A096 |
Name |
LED Backlight |
| LED | 2835 |
| Power | 9.6W |
| Voltage | DC24 ±0.5V |
| Lumen | 950LM |
| CCT | 6000-7000K |
| Angle | 120° |
| Size | 300*300*10mm |
Quality control:
1. Before producing, we would strictly check the material, color, wick,etc.
2. Aging for every light about 12-24 hours
3. Our salesman would trace every phase of production from the beginning.
4. We have a QC team, every piece product sould be inspected before packing.
About us:
Our factory established in 2004, which is located in beautiful Xiamen City.
We are professional manufacturer of advertising lights, such as, trade show display light, exhibition arm light, pop up light, LED light bar and LED Backlight. We have been in this line for about 10 years Our products have been exported to USA, Canada, European, Australia and Middel East, South Affrica, etc.
We possess around 30 technical achievements, 23 of them have been patented.
Based on our experience,our reasonable price, high quality and considerate service. Our products enjoy high reputation in our domestic and oversea market.
♥ if you want to know more about our products, pls feel
free to contact us.
