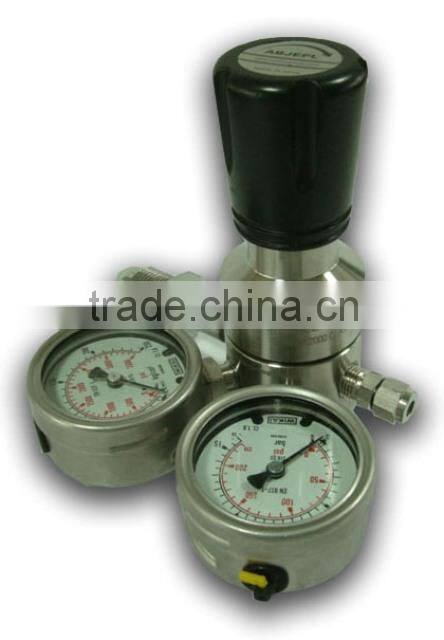

Single Stage High Pressure Regulator - HPR 360 Series / High Pressure Oxygen Regulator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Maharashtra, India
Brand Name:
ABJ
Model Number:
SFT-1284
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Cylinder Regulator - HPR 279 Series (SFT-1285)NegotiableMOQ: 1 -
Single Stage High Pressure Regulator - HPR 270 Series (SFT-1286)NegotiableMOQ: 1
-
Single Stage High Pressure Regulator - HPR 369 Series (SSS-1287)NegotiableMOQ: 1
-
DC TIG Welding Machine / TIG Welding EquipmentNegotiableMOQ: 1
-
High Pressure RegulatorsNegotiableMOQ: 1
Place of Origin
Maharashtra, India
Brand Name
ABJ
Model Number
SFT-1284
HPR 360 Series is cost effective product equivalent to Concoa 422 series, Tescom 44-2200 series, Go Regulator PR-1 series, Swagelok KPR series.
The HPR-360 series is a stainless steel single stage pressure regulator recommended for use with high purity corrosive gases up to 210 bar (inlet pressure) where gas delivery systems require high leak integrity and low dead volume which is particularly important for corrosive and toxic gases. Internal surface finish of body is better than 1.6µm which allows easier cleaning and lesser particle contamination. Stainless steel bonnet prevent atmospheric corrosion and maintain appearance.
FEATURES & SPECIFICATIONS
- Stainless Steel Diaphragm
- Standard 10 µm stainless steel filter at inlet of main valve assembly
- 1.6 µm internal surface finish as standard
- Cleaned for Oxygen service.
- Bubble tight shut-off
- Inlet pressure: 210 bar (3000 psi)
- Outlet range: 0 to 35 bar (500 psi)
- Flow Coefficient: Cv 0.06
- Design Pressure: 1.5 time working pr.
- All connections: ¼" NPT (F)
- Seat: PTFE / PCTFE
- Max. Operating Temperature:
PTFE - 66 C
PCTFE - 80 C
- Intel end connection: ¼" NPT (F)
- Outlet end connection: ¼" NPT (F)
