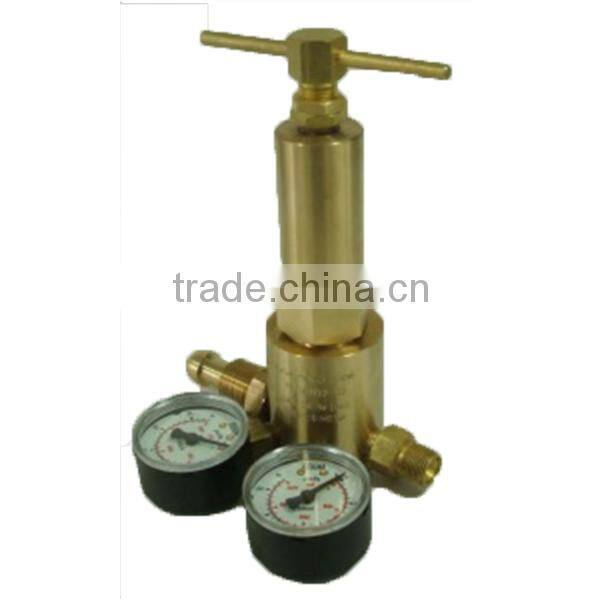

High Pressure Cylinder Regulator - HPR 279 Series (SFT-1285)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Maharashtra, India
Brand Name:
ABJ
Model Number:
SFT-1285
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Stage High Pressure Regulator - HPR 270 Series (SFT-1286)NegotiableMOQ: 1 -
Single Stage High Pressure Regulator - HPR 369 Series (SSS-1287)NegotiableMOQ: 1
-
DC TIG Welding Machine / TIG Welding EquipmentNegotiableMOQ: 1
-
High Pressure RegulatorsNegotiableMOQ: 1
-
Gas Pressure RegulatorsNegotiableMOQ: 1
Place of Origin
Maharashtra, India
Brand Name
ABJ
Model Number
SFT-1285
Specifications
Showcasing cum distribution partner for ABJ Engineering Private Limited (Gas Control Specialist).The HPR-279 series is a brass single stage high pressure regulator suited for cylinder usage with high purity and non-corrosive gases. It is designed to accept inlet pressure up to 3000 psig & deliver outlet pressure from 0-100 psig up to 0-1300 psig. Internal surface finish of body id better than 1.6µm with chrome plating as option which allows easier cleaning and lesser particle contamination. Uniquely designed piston sensing element offers excellent regulation characteristics.
FEATURES & SPECIFICATION
- Stainless Steel Piston
- Standard 10 µm sintered bronze filter at inlet of main valve assembly
- 1.6 µm internal surface finish as standard
- Cleaned for Oxygen service
- Bubble tight shut-off
- Inlet Pressure: 210 bar (3000 psi)
- Outlet range: 0 to 90 bar (1300 psi)
- Supply pressure effect less than 0.05%
- Flow Coefficient: Cv 0.06
- Design Pressure: 1.5 times working pr.
- All Connections: ¼ NPT (F)
- Seat: PTFE / PCTFE
- Max. Operating Temperature:
PTFE - 66 C
PCTFE - 80 C
- Inlet end connection: ¼" NPT (F)
- Outlet end connection: ¼" NPT (F)
