100w desktop co2 laser cutting machine
Features:

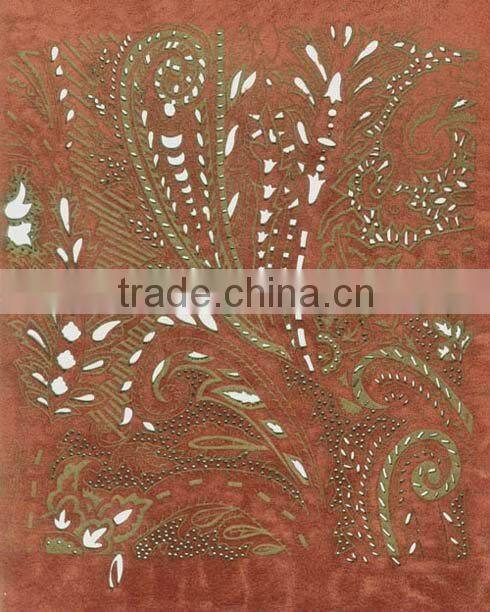

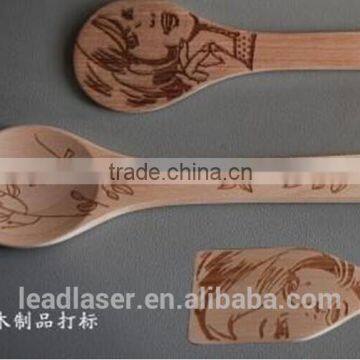

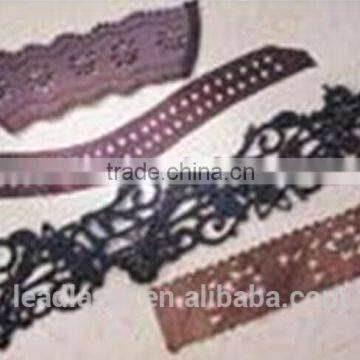

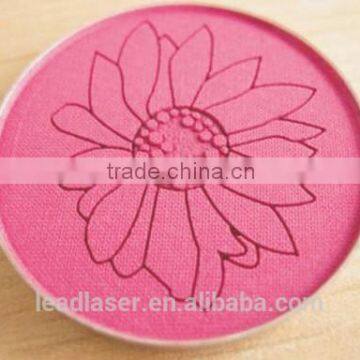

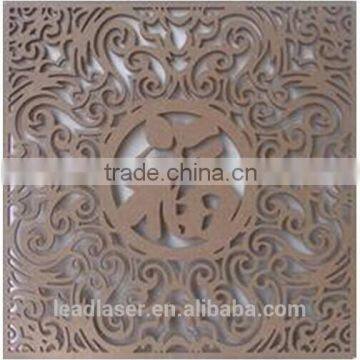

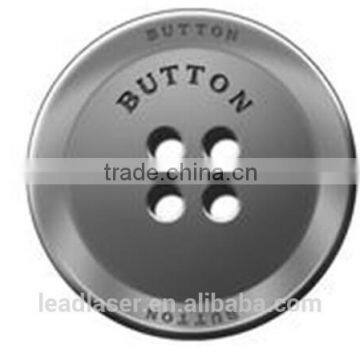

The machine is widely used in garment, leather, suitcase and handbag, etc. It is suitable for marking, engraving, hollowing out, and cutting out nonmetallic materials or products. It can mark, engrave, hollow out and cut of various, signs, graphs images, barcodes, serials number, etc.
The extensive equipment performance, competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.
Detailed description:
The machine adopts imported speedy galvanometer scanning system. High quality of light beam, long use time, and stable equipment performance exempts maintenance. It is speedy (≤7000mm/s), and precise(less 0.01mm). Marking has non-touched process, permanent marking effect, humanized operation, and stable running. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realized automatic edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, DXF, BMP, JPG, TIF, AI and so on. It may use TIF fonts directly,and meets the demand of mass on-line and off-line industrialized production in axletree industry.
Parameter:
| Max. laser power: | 100W |
| Laser wavelength: | 10.64μm |
| Repeat frequency: | ≤2kHz |
| Standard marking scope: | 130mm×130mm |
| Marking depth: | ≤8mm (Visual material and decide ) |
| Marking speed: | ≤7000mm/s |
| Min line width: | 0.1mm |
| Mini character: | 0.4mm |
| Repeat precision | ±0.01mm |
| Input power: | 4KW |
| Electrical source: | 220V /single-phase / 50Hz / 20A |
| Light path system size | 1700mm×190mm×300mm |
| Dimensions: | 565mm×565mm×770mm |
| Cooling system: | 700mm×400mm×700mm |
