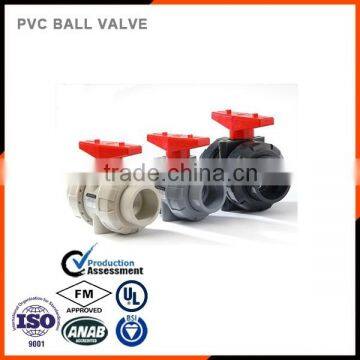

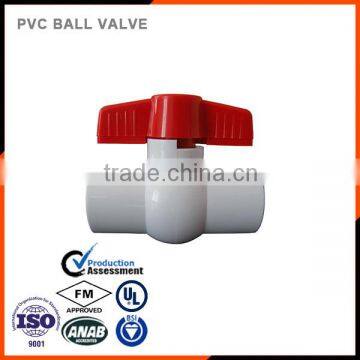

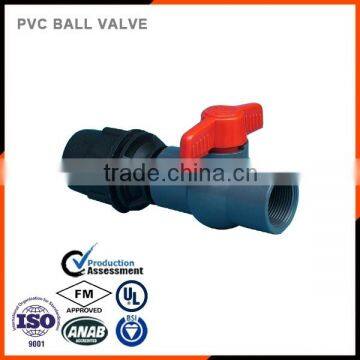

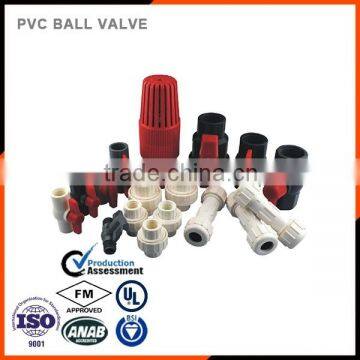

Help Center3/4" Light Grey Plastic Pvc Ball Valve
Related Products

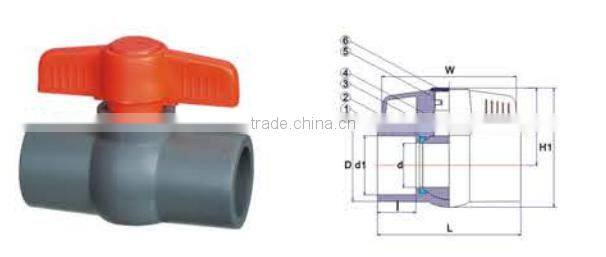

Dimensions:
| Nom Size | NPT Thd../in | BSPT Thd../in | JIS d1 | BS d1 | ANSI d1 | DIN d1 | d | D | L | I | W | H1 | H2 |
| 15mm(1/2") | 14 | 14 | 22 | 22 | 21.34 | 20 | 14.5 | 32 | 80 | 22 | 68.5 | 64.3 | 44.9 |
| 20mm(3/4") | 14 | 14 | 26 | 26 | 26.67 | 25 | 20 | 36.8 | 92 | 25 | 80.5 | 76 | 52 |
| 25mm(1") | 11.5 | 11 | 32 | 34 | 33.4 | 32 | 24 | 45 | 106 | 28 | 100 | 94 | 65 |
| 32mm(11/4") | 11.5 | 11 | 38 | 42 | 42.16 | 40 | 30 | 53.5 | 113 | 28 | 108 | 103 | 70 |
| 40mm(11/2") | 11.5 | 11 | 48 | 48 | 48.26 | 50 | 34 | 62 | 129 | 33 | 108 | 112 | 73.5 |
| 50mm(2") | 11.5 | 11 | 60 | 60 | 60.33 | 63 | 44 | 75.5 | 148 | 39.5 | 138 | 126 | 81 |
| 65mm(21/2") | 8 | 11 | 76 | 76 | 73 | 75 | 56 | 92.5 | 178 | 39.5 | 192.5 | 166 | 109 |
| 80mm(3") | 8 | 11 | 89 | 89 | 88.9 | 90 | 71 | 107 | 209 | 48 | 192.5 | 181 | 116 |
| 100mm(4") | 8 | 11 | 114 | 114 | 114.3 | 110 | 86 | 134.5 | 294 | 78 | 262 | 236 | 152 |
| 6" | - | - | - | - | 168.8 | 160 | 130 | 185.4 | 407 | 103 | 301.9 | 300 | 181 |
Specification:
Color White/Grey/Black/Blue many colors are available
Material PVC Body; ABS Handle; PP Ball; TPE Sealing (Santoprene)
Size 1/2, 3/4",1", 1-1/4",1-1/2", 2", 2-1/2'', 3'', 4'',6”, 8”
Standards: GB, ASTM,BS, DIN, JIS
Technolody: Injection Moulding
Connection: Socket or Thread
Packing: Transparent plastic bags first, and then load strong cartons
Main Parts Material:
body |
PVC,CPVC,PP |
Seat Seal |
TPE,PTFE |
O-Ring |
EPDM,FPM(NBR) |
Ball |
PVC,CPVC,PP |
Handle |
ABS |
Cap |
ABS |
Characteristics:
• Healthy and non-toxic, free of stain and scale
• Light weight,easy to handle and transport
• High temperature resistance (maximum water temperature is up to 90oC and high pressure resistance is over 8MPa)
• Hot welding connection adopted, making pipes and fittings into whole, leakage effectively prevented
• Excellent heat insulation property from minimum thermal conductivity (only one hundredth of that of metal pipes)
• Smooth inner wall, reducing pressure loss and increasing flow speed
• Low noise, reduced by 40% compared to galvanized steel pipes
• Soft colors and excellent design, suitable for installation either exposed or hidden
• Wonderful ability in chemical corrosion resistance
• Easy and fast installation, making cost minimized
Application:
Water project in construction.
Water treatment for swimming pool.
Water project in pisciculture.
Irrigation for agriculture.
Petroleum chemical industry.
Solar water system.

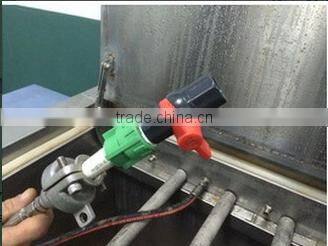

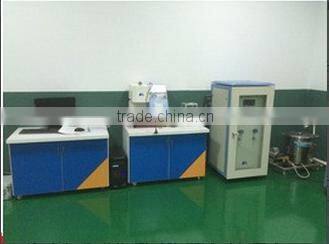

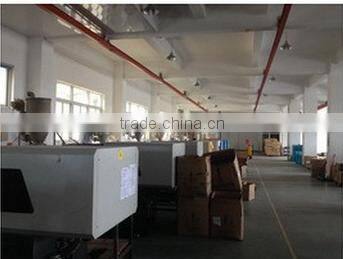

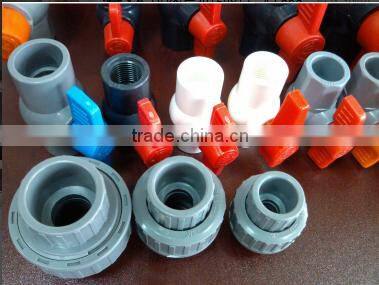

Production Shows :
