Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 5V/7.5V/12V/15V24V//48V/120W Switch Mode Power Supply

5V/7.5V/12V/15V24V//48V/120W Switch Mode Power Supply

Name: 5V/7.5V/12V/15V24V//48V/120W Switch Mode Power Supply
Brand: SCOTT
SKU: 116323091

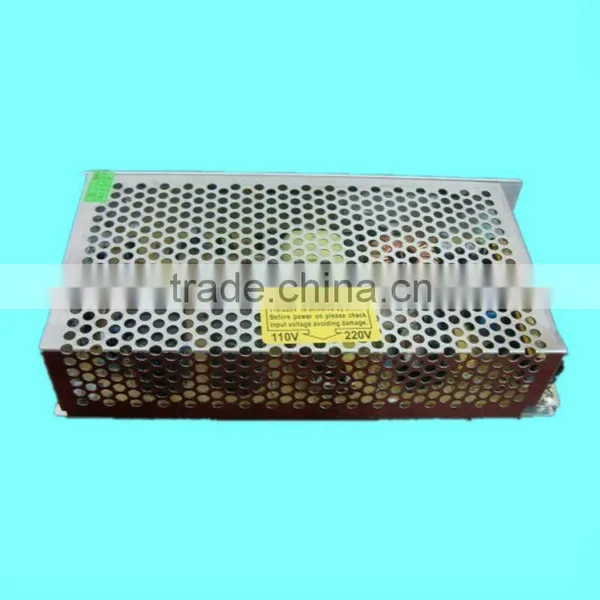

5V/7.5V/12V/15V24V//48V/120W Switch Mode Power Supply thumbnail-1

5V/7.5V/12V/15V24V//48V/120W Switch Mode Power Supply photo-1

US$ 7.5 - 8 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SCOTT

Model Number:

SC-120W-M

Contact Supplier Request Quote Chat Now

Shenzhen Scott Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SCOTT

Model Number SC-120W-M

Output Power Other, 120W

Output Type Single

Input Voltage Other, AC85-265V

Output Voltage 5V12V15V24V

Output Current 0-25A

Specifications

5V/7.5V/12V/15V24V//48V/120W switch mode power supply CE,ROHS approved
UL APPROVED FOR HIGHER PRICE

5V/7.5V/12V/15V24V//48V/120W switch mode power supply

CE, ROHS, UL CERTIFICATE

size: 199*98*38mm or 159*98*38mm

Model Specification	S-120-5	S-120-7.5	S-120-12	S-120-15	S-120-24	S-120-27	S-120-48
DC output voltage	5V	7.5V	12V	15V	24V	27V	48V
Output voltage error(Note2)	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	20A	15A	10A	8A	5A	4.4A	2.5A
Output current rage	0-25A	0-16A	0-10A	0-8A	0-5A	0-4.4A	0-2.5A
Wave and noise(Note 3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	120mVp-p	120mVp-p	120mVp-p
Inlet stability(Note 4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stablity (Note 5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	100W	112.5W	120W	120W	120W	118.8W	120W
Efficiency	78%	80.5%	80.5%	81%	83.5%	82%	83.5%
Adjustable range for DC voltage	4.5~5.5V	6~8.3V	10.6~13.2V	13.2~16.5V	21~28V	24.5~29.5V	43.2~52.8V
AC input voltage range	88-132VAC/170-264VACSelected by switch47-63Hz;240-370VDC
Input current	2.6A/115V 1.3A/230A
AC INnrush current	Cold-start current32A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload proctection	105%-150%Type:Foldback:current limiting reset:auto recovery
Over-voltage protection	115%-135
High-temperature protection
Temperature coefficient	±0.03%/°C(0-50°C)
Setup rise hold up time	100ms,50ms,20ms
Vibration	10-500Hz,2G 10min,/1cycle,Period for60min,Each axes
Withstand voltage	Input and output internal;1.5KVAC,Input and enclosure;1.5KVAC,Output and enclosure;0.5KVAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure;500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C(Refer to output derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C.10%~95%RH
Overall dimension	199×98×38mm
Weight	0.72Kgs
Safety standards	UL1950 TUV EN60950)Verification
EMC standards	CISPR22(EN55022),IEC10000-4-2,3,4,5 IEC1000-3-2Verification
Note 1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity. 2.Error.include the setting error,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%.
