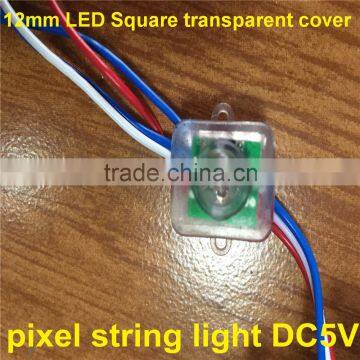

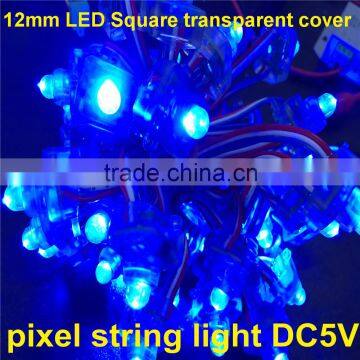

12mm LED square transparent cover WS2811 50pcs string IP68 DC5V full color rgb pixel led .
1. Individually control: 1PCS LED & 1IC
2. IC chip: can be ws2811, ucs1903, sm16716 IC,WS2801.
3. Waterproof: Yes IP67, with full silicon glue waterproof protection.
4. Installation: Easy to install, you'd better drill the hole with 12mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V
or you can destroy the entire pixel.
7. Connetors: 3PIN or 4PIN JST female and male connectors.
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
8. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
9. Brand: SCOTT LED
Product Features:
1.This round led pixel 50pics in a string.
2.10cm 20AWG wire length between each led,
3.Two version waterproof:PVCmaterial injection&full epoxy glue.
4.12mm diameter(0.45'')
5.There is an arrow on theuderside of the led's body thich indicates the direction of the strand.
6.DC5v power requirement only-nopolarity protection.
7.4Pin JST SM connector(non-waterproof)soldered in each end of string.
8.The extra 2 single wire for powering in input side.
9.We also have other chip version:WS2811,LPD6803,SM16716.TM1803.
10.Customised ledgth available.
Application:
Channel letters open&closed cover.
Reverse halo lighting .
Border lighting.
Point-of-Purchasing signage
Art&sculpture and cove lighting.
Replacement for conventional lighting system.
Maximun output white.
| Products Name | LPD 6803/WS2811/WS2801 LED Pixel Light |
| Model NO. | SC-WS2811-5-S-IP68 |
| Power Consumption | 0.3W |
| Work Voltage | DC5V |
| Work Current | 60mA |
| Beam Angle | 120°-140° |
| LED Encapsulation | Straw Hat LED |
| LED Quantity | 1pcs |
| LED Type | Low power LED |
| Color | DIGITAI |
| FPC Color | White |
| Dimension | Diameter 12mm |
| Waterproof Grade | IP68 |
| Work Temperature | -30-60deg |
| Light Decay | Less Than 1% After 1,000H |
| Life-span | 50,000H |
| Certificate | CE&ROHS |
| Packing | 50pcs per line |
| Warranty | 2-3years |
