Home > Products > LED Pixel Strings > 12mm WS2801 pixel rgb module led light,DC5V input,waterproof IP68;50pcs a string,Square Shape
12mm WS2801 pixel rgb module led light,DC5V input,waterproof IP68;50pcs a string,Square Shape
- 50000 Set / Sets per Month
- Shenzhen
- Credit Card PayPal
Product Details
Model Number: | SC-WS2801-50-5 | Emitting Color: | Other, Digital dream color | Power: | Other |
Color Temperature: | rgb | Operating Temperature(℃): | -20, 60 | Storage Temperature(℃): | -20, 80 |
Place of Origin: | Guangdong, China | Brand Name: | SCOTT | Certification: | CE |
Product Description

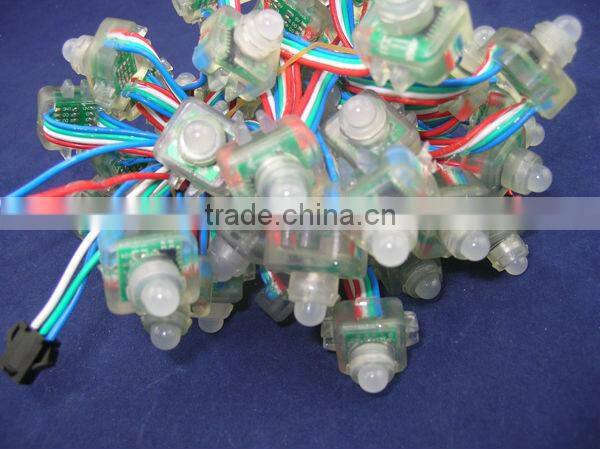

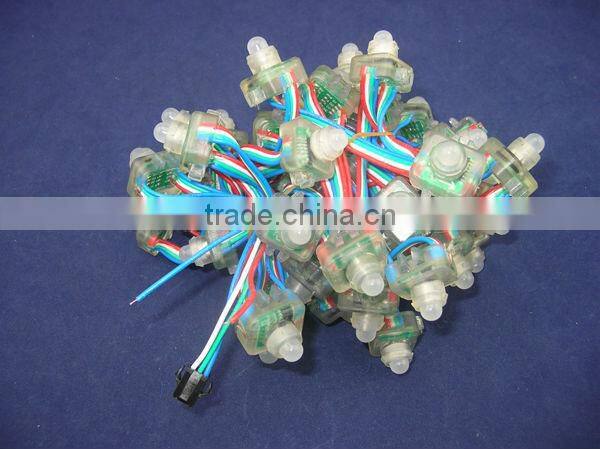

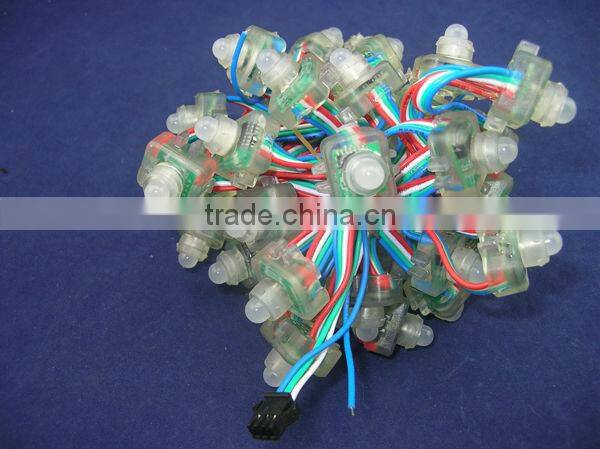

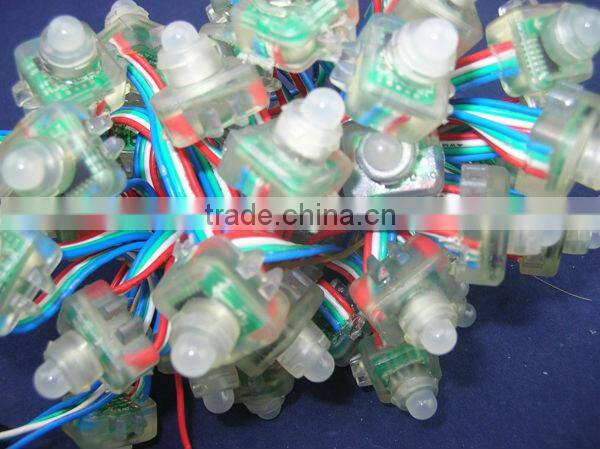

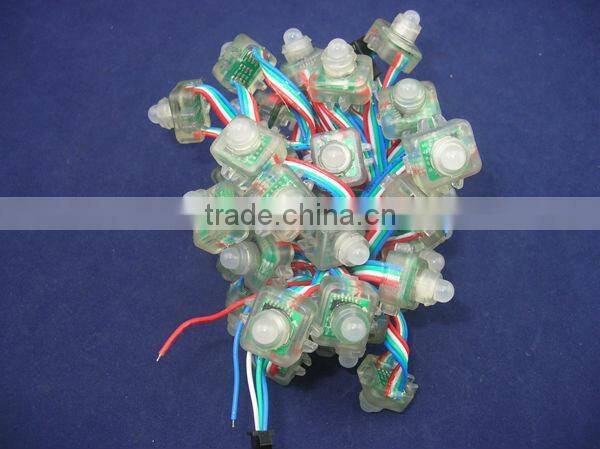

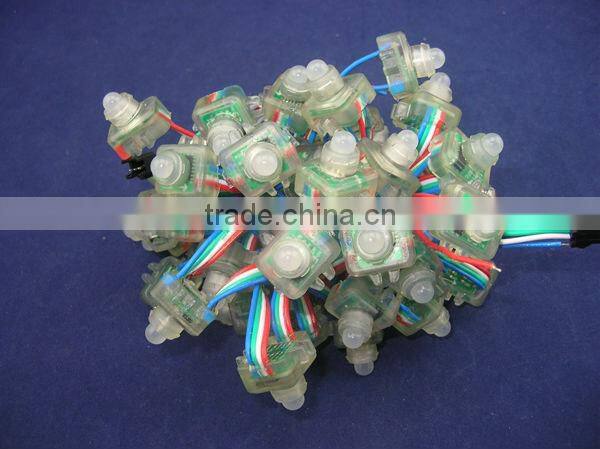

12mm WS2801 pixel rgb module led light,DC5V input,waterproof IP68;50pcs a string,Square Shape
RGB Digital Pixel Light Square
These are the Digital Pixels that can be controlled with computers and other DMX/Digital Controllers or stand alone SPI Controllers. The advantage of digital pixels are that you can control each module by itself so you can make chasing effects and other patterns. These color changing LED modules are very easy to use and install.
You can order them by the piece or connected togeather. They run on 5V DC. They are potted with a waterproof epoxy and have a semi clear lens, they can be exposed to weather. ~ they are very easy to work with!
Details / Options
~~These RGB modules can change any color with the use of a SD Card Controller Or With DMX to 2801 Converter. you will need a SD Card Controller designed to control the WS2801 chip or use DMX and a DMX to WS2801/WS2803 Converter.
Additional Information
Suggested Uses | Color Changing Signs |
Led Color | RGB |
Length Of Strip | modules are every +/- 4.5" on center |
Type of LED | 1x RGB Led / Module |
Viewing Angle (Degrees) | 110°-180° deg |
Mounting Options | Double Sided Tape, Ceiling Mount, Wall Mount |
Waterproof Rating | IP-68 |
Voltage | Dc5v |
Wattage | .3 watts per module (60mA) |
Power Usage Watts / Foot: Rated (Actual) | x Watts/Foot |
Number Of Chanels | 3 DMX Channels/Pixel |
Connections Input/Output | Red = DC5v (+) |
Max Connected Strip Length From Each Power Connection | you should supply aditional power every 40-80 modules |
Controllable By | DMX to WS2801 Decoder or Digital Controller |
Lumens | 9 lm/pixel |
Product Size (L)x(W)x(H) | drill bit size .47" (12mm). max matt thickness .18" (5mm) total hight .91" base .84" (21.5 mm) x .79" (20 mm) |
Strip Width | base width 0.84" (21.5 mm) |
Strip Thickness | base length 0.79" (20 mm) |
Comes With | if you order individual modules they will have 2" wire on both sides of the module |
