PP Yarn Winding Filter Cartridge Machine From Hongteng

PP Yarn Winding Filter Cartridge Machine From Hongteng photo-1

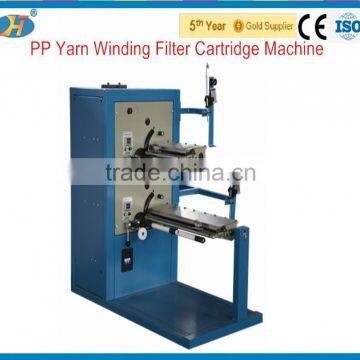

PP Yarn Winding Filter Cartridge Machine From Hongteng photo-2

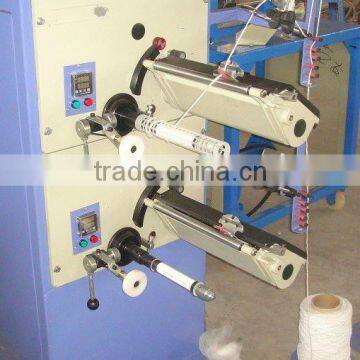

PP Yarn Winding Filter Cartridge Machine From Hongteng photo-3
US$ 500 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HT, HT
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name HT, HT
After-sales Service Provided Engineers available to service machinery overseas
Detailed Images

Parameters:

Winding speed 60-320m/nin
Power 0.18kw/spindle(10"),0.25kw/spindle(20"),0.37kw/spindle(30")
Voltage AC380V,50hz      other voltage can be customized
Motor

Three-phase asynchronousnotor motor.Speed:2800r/min.(filter length<30")

Three-phase torque motor.Speed:1400r/min.(filter length ≥30:)

Core"s matrrial

PP,Stainless steel or customized

Cam's material

polyformaldehyde

Production capacity

60pcs/hour(10")

Single spindle tablet size

(w*h)390*308mm

Reciprocapting stroke

generally divided into 5",10",20",30",40".Others can be customized

Filter Cartridge

Inner diameter

28mm or 30mm.    others can be customized
Outer diameter 29mm-200mm
 precision 1um-100um
Length 10"-100" or customized

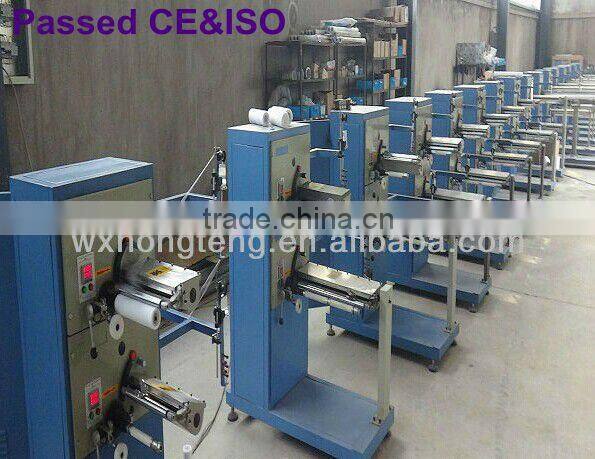

PP Yarn Winding Filter Cartridge Machine from Hongteng



Accessories

Accessories for free

Small spring 20pcs
Guide grooves



10pcs

Guide block 3pcs
Large spring 10pcs
Button 2pcs
Belt 2pcs
Micro gears 2pcs

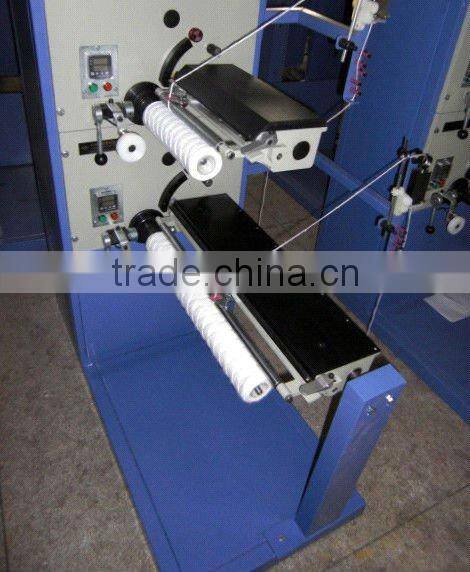

PP Yarn Winding Filter Cartridge Machine from Hongteng



Our Services
  • OEM and ODM are available
  • oversea engineers can help you.
  • We have well-trained and expericed staffs to cooperate with you.
  • Strict test before packing
  • Protection of your ideas of design and all your private informations.
  • Your any inquiry abouts our products and company can be replied in 24 hrs.
  • Warranty Terms:

    2 years warranty, life-long maintenance.

    We provide the screw rod inside extruder, extruder's barrel, and extrder's gear box for 3 years free

    ABB Inverter and extruder's electric motor 2 years free if yours is broken without human factor.

  • Technical Support:
    • Mr. Yu- with 20 years’ experience in machine design and especially good in plastic extruding industry
    • Mr. Hao- with 15 years’ experience in filter making factory and can make all the filters you want
    • Mr. Ni- with 30 year's experience in designing PP string wound filter cartridge making machines
Warranty

2 years warranty,

We provide the new main parts (inverter , screw rod ,extruder barrel , extruders’ motor ,gear box) for free if yours is broken without human factor during 2 years. After warranty, We will supply spare parts by cost price.
