3E&3M Professional Wuxi Manufacturer of PP Cartridge making Machine
- 5 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Application: | Granules | Plastic Processed: | PP |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | HT | Model Number: | SJ45 | Voltage: | C380V/220V,50Hz |
Power(W): | 38KW | Dimension(L*W*H): | 8000MM*8000MM*2500MM | Weight: | 3.8tons |
Certification: | CE&ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Advanced automatic control system2.Different OD at the same base of ID
3.Smooth and Flat
4.Actual power:37kw
5.ODM,ODM
PP Filter Cartridge Making machine in Ro System
Our factory built at 1989, and manufacture complete production line for pp string wound filter machine ,cto carbon block filter machine and PP Filter Cartridge making machine many years.
we have experienced technicians for manufacturing, installation and training.
Our Machines have passed CE and ISO 9001:2008.
3E&3M PP melt blown filter machine's Description:
The order of this production line
No. | Name | Quantity | Note |
1 | screw compressor(without a break) | 1 set | 22KW |
2 | Air tank | 1 set | 0.3 M3 |
3 | Heating machine | 1 set | 16KW |
4 | SJ-45 single screw extruder | 3 sets | 15.5KW*2=31KW |
5 | Mold | 3 sets | 1KW*2=2KW |
6 | Take in machine | 1 set | 3KW |
7 | Cutting machine | 1 set | No electrical |
8 | Controller | 2 sets | No electrical |
9 | Cleaning box for the mold | 1 set | 2KW |
The parameter of the production line(best energy-saving):
Raw material: Polypropylene
Speed of machine:0-1400 r/min
Filter precision:1-100 microns
Machine weight: 3.8 tons
Production capacity:3200-4000/day
Internal diameter:Default 28mm(other size which do you want,we could satisfy)
Outside diameter:58-120mm
Length:10",20",30"40"and other length as whatever you want.
Interface of filter cartridge:flat.
20 feet container could contain 1set of pp melt blown filter cartridge production line
Regarding the pp melt blown filter cartridge production line
Operation conditions:
1). Max operating temperature: 70°C
2) Materials: 100% polypropylene
3)Interface of filter cartridge: flat
4) Max differential pressure: Positive 0.4Mpa
Filter precision (μ m) | 1 | 3 | 5 | 10 | 20 | 30 | 50 |
Initial precision (μ m) | 10-15 | 15-25 | 25-35 | 30-40 | 35-50 | 40-60 | 60-90 |
Max particle (μ m) | 15 | 25 | 35 | 40 | 50 | 60 | 90 |
Flow (L/min) | 10 | 14 | 17 | 20 | 24 | 28 | 32 |
Feature:
1) High precision ,high flow rate, high pressure resistance and high corrosion resistance.
2) Consistent particle retention and superior contaminants holding capacity with longer filtration life.
3) No fiber releasing and media migration
4) No surfactants or adhesives are present to interrupt product quality or Cause foaming.
5) Board chemical compatibility for variety of applications
6) Internal diameter: 28/ 32 mm or design for you
7) External diameter: 58-114 mm or design for you
8) Length: 10", 20", 30", 40"
9)Applicable PH value:1-1310
10)Precision of filtering(micron):1,3,5,10,20,30,40,50...
There are tow important features for our machine as followed:
First: it saves more electricity than others pp machines.
you know ,our rated power is 67KW and actual power is 35kw when machine is working,but the power of many machines from other factory is very high ,which can reach 100KW,as per the situation in the field, our machine is the best choice for you.
Second: its output is very large
3200 pcs/day~4000pcs/day at least .
Third: We use ABB inverter and Omron temperature controller.
Filter cartridge is widely used in water treatment ,as follows:
1 Electronic, Power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc
2 Chemical & Petrochemical Industries: Solvent, Paint, Magnetism Paint, Detergent, Liquid wax etc
3 Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid
4 Food Industry: Food, Drink, Drinking Water, Alcohol etc.
Our certificates:
CE
ISO 9001:2008

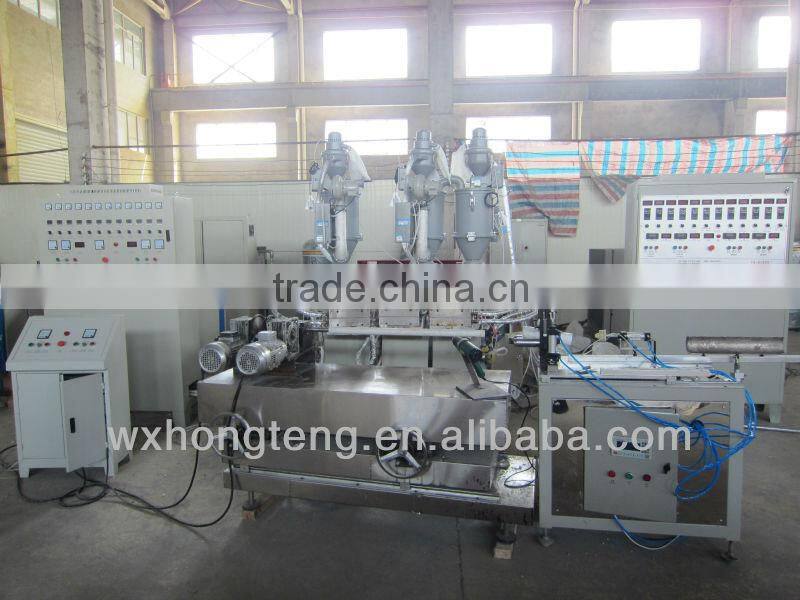

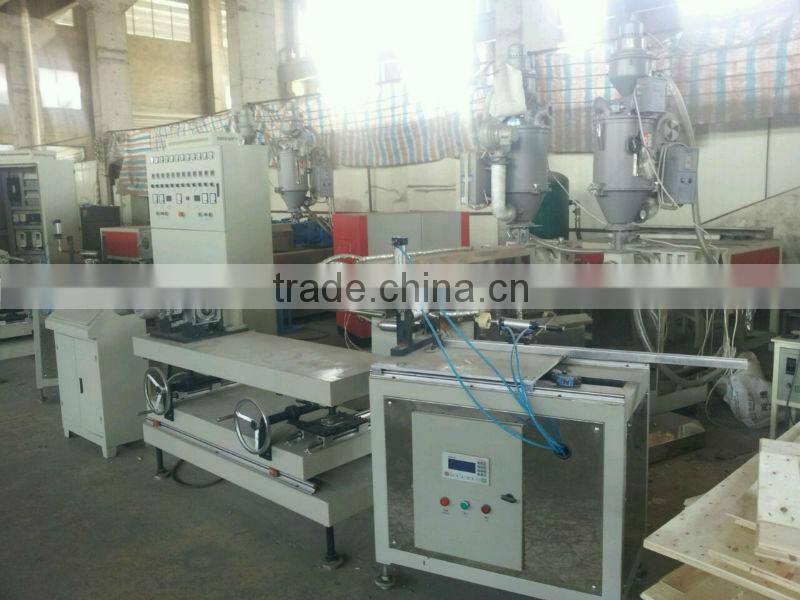

3E &3M system's photos:
2E &2M system's photos:
6.Application Field
- Electronic, Power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc
- Chemical & Petrochemical Industries: Solvent, Paint, Magnetism Paint, Detergent, Liquid wax etc
- Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid
- Food Industry: Food, Drink, Drinking Water, Alcohol etc)

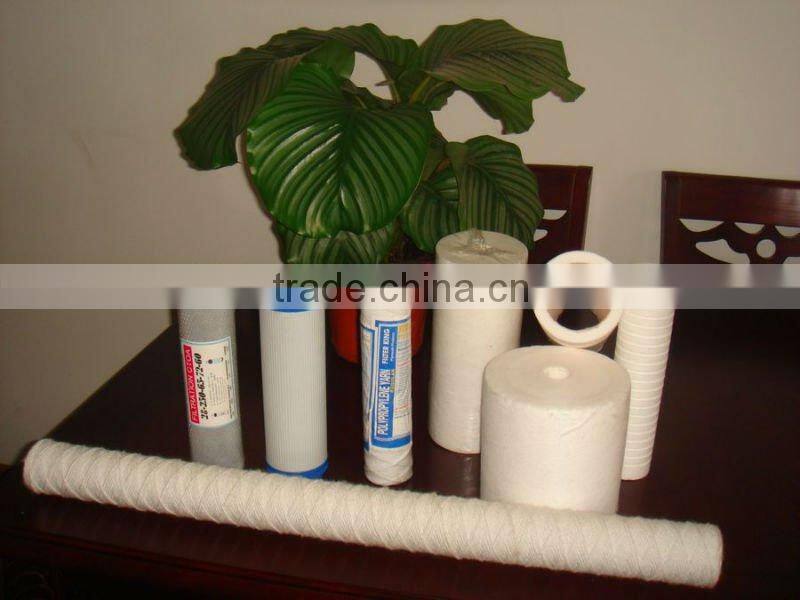

Surface filter cartridge
Smooth

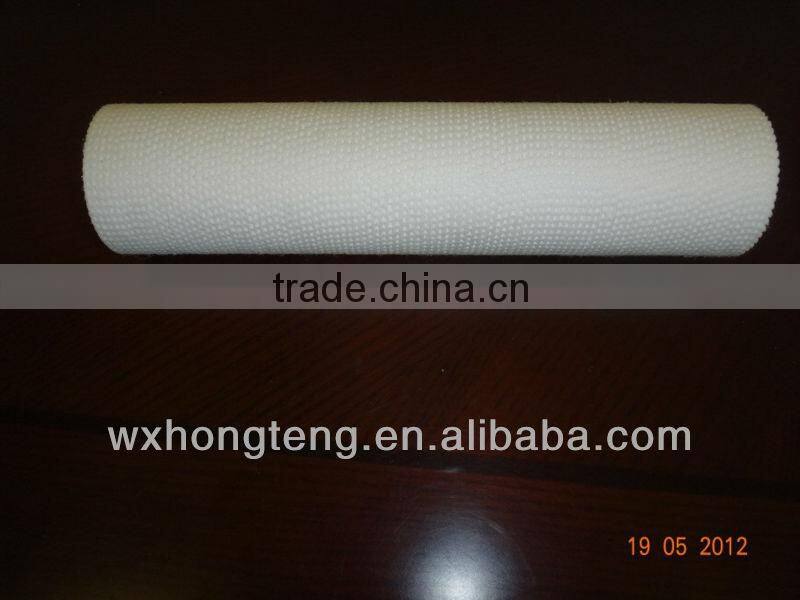

Dotted cartridge

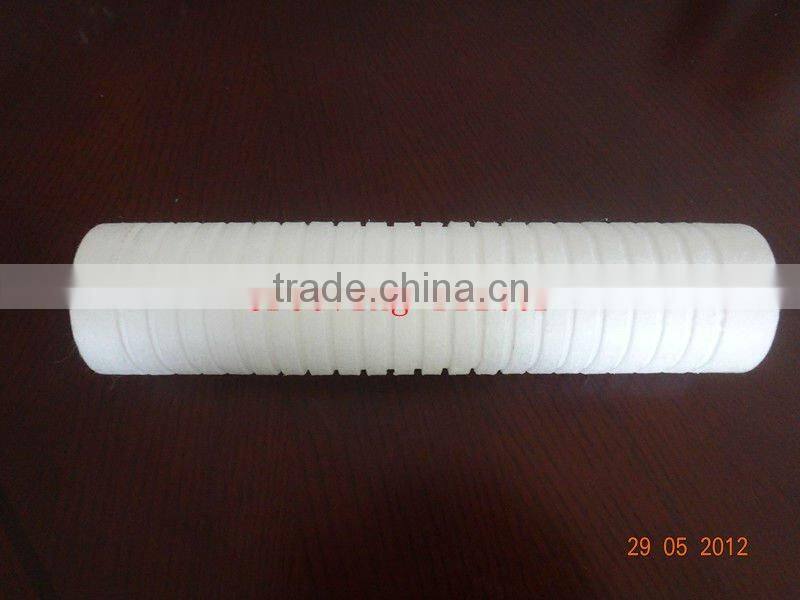

Grooving cartridge
Embossing cartridge

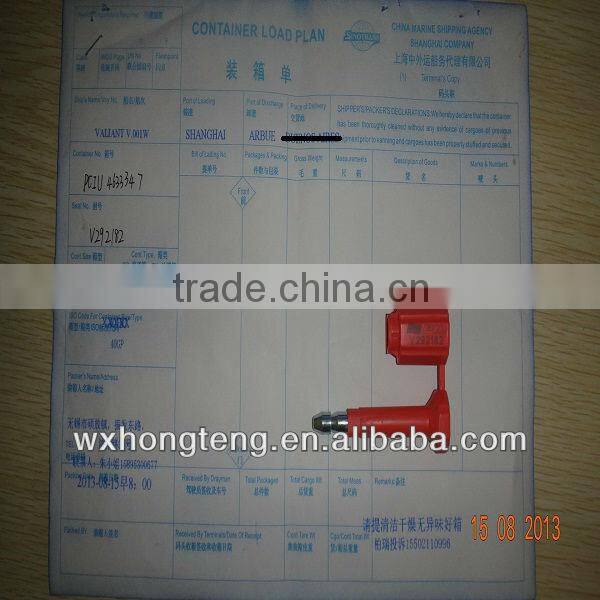

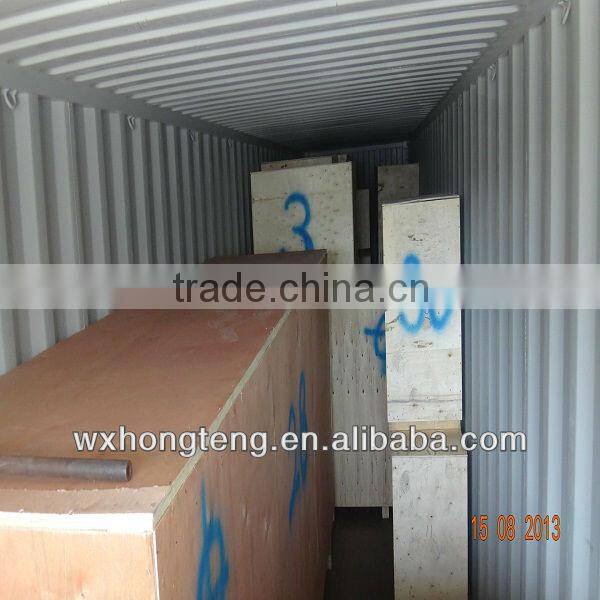

40GP container was loading our factory at August,2013.
Our Other Products:
No.2: Carbon Filter Cartridge Machine

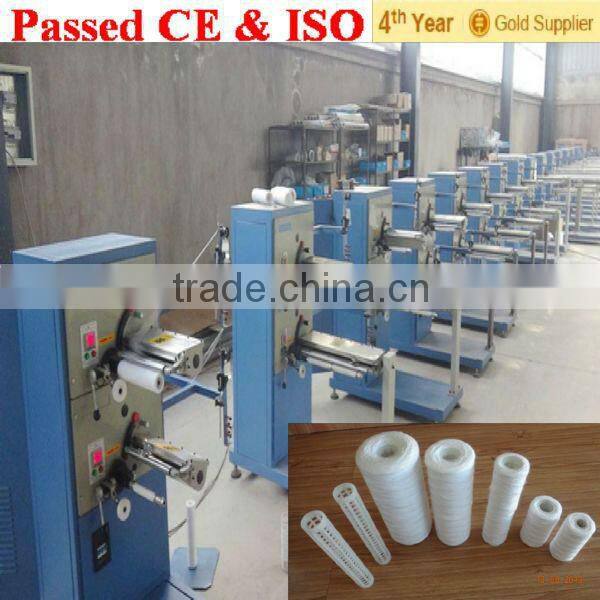

No.3, PP Winding Filter Cartridge Machine

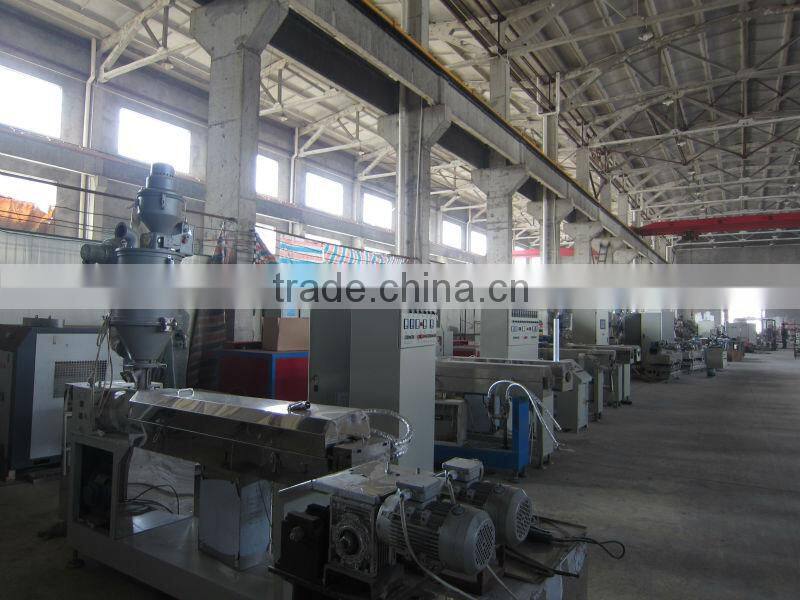

Workshop
Pls contact us if you are interested in our machines.
