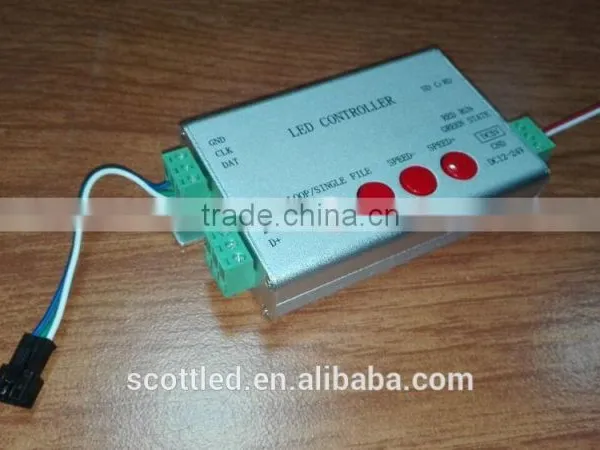

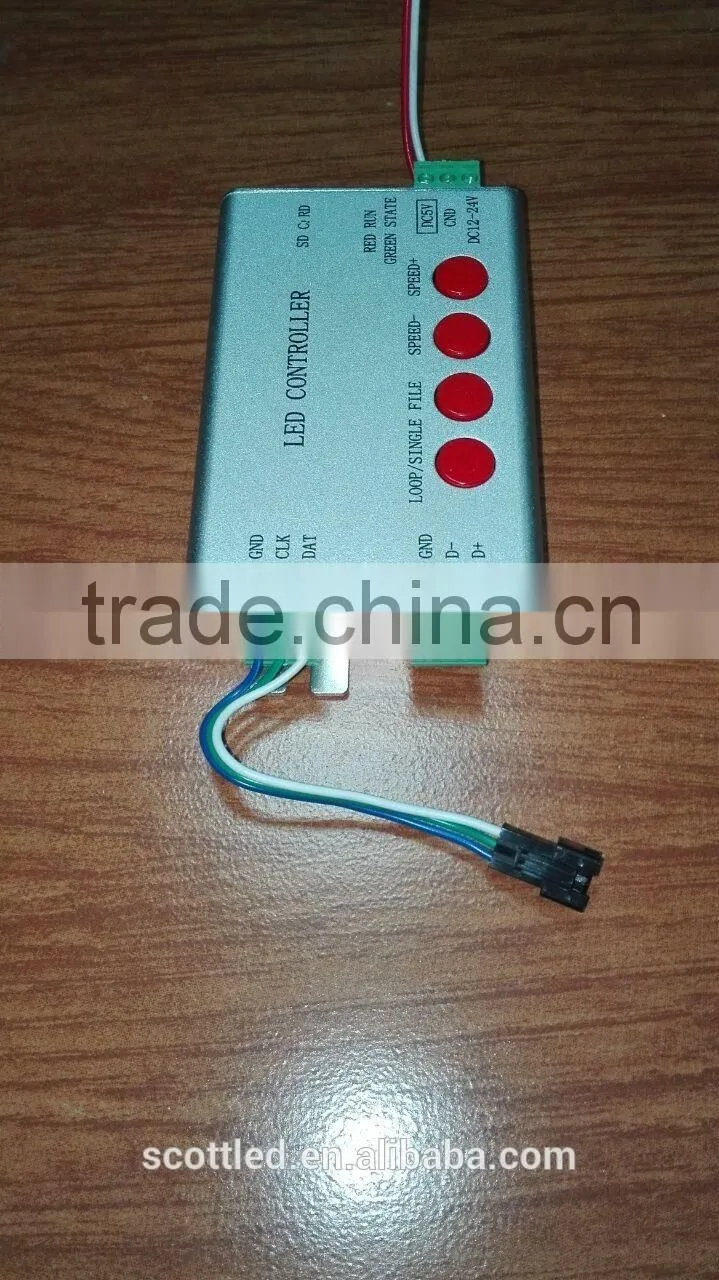

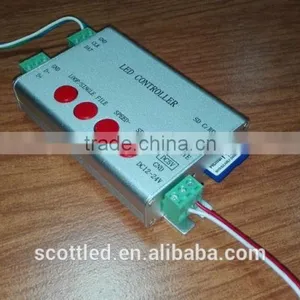

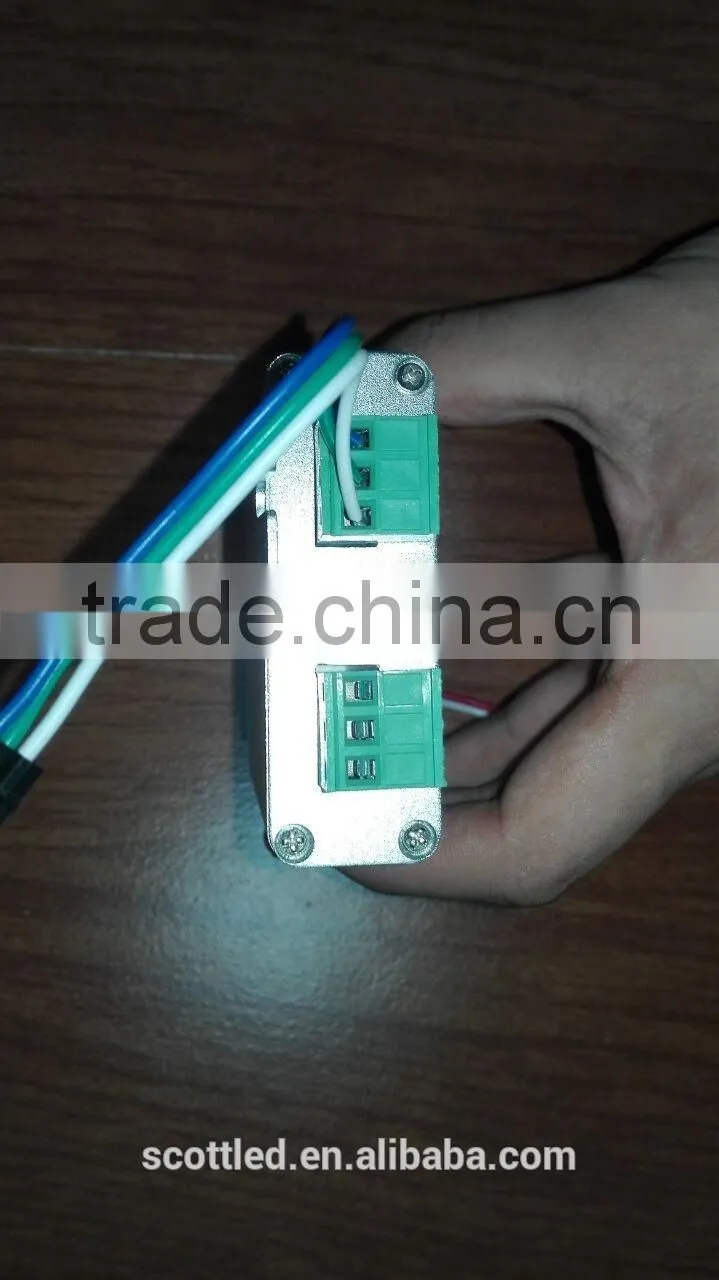

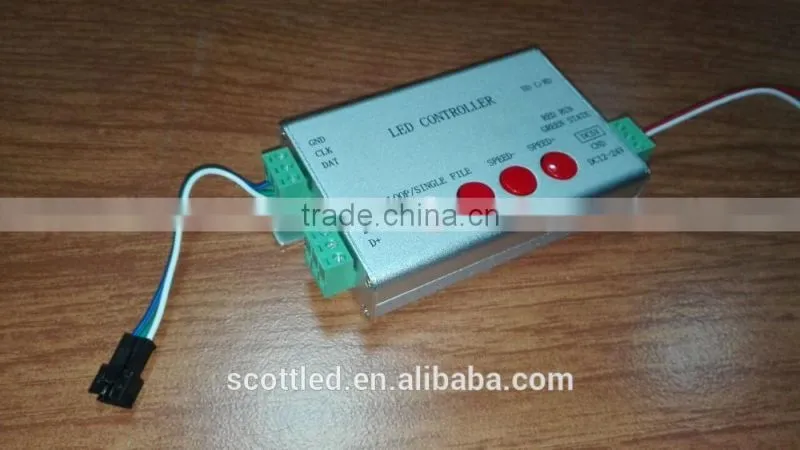

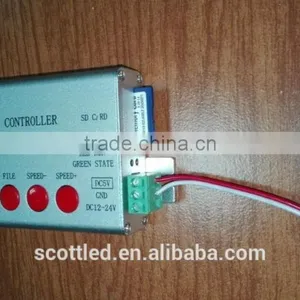

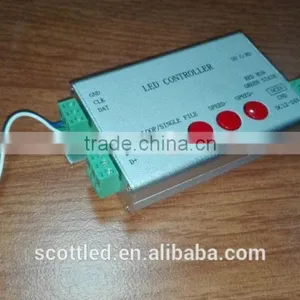

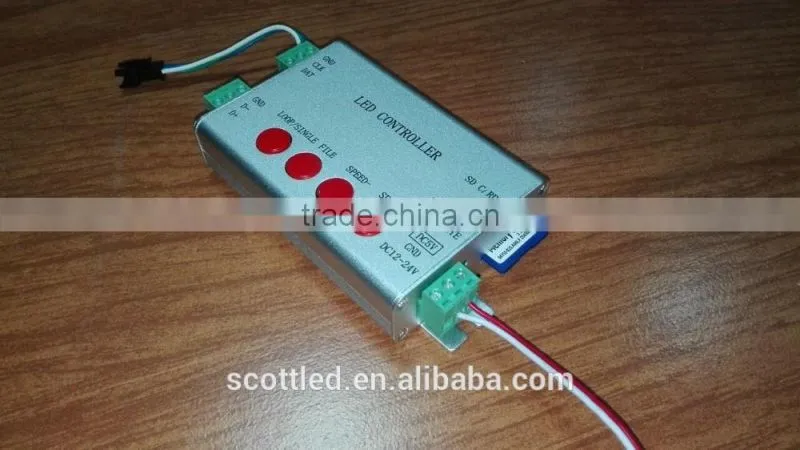

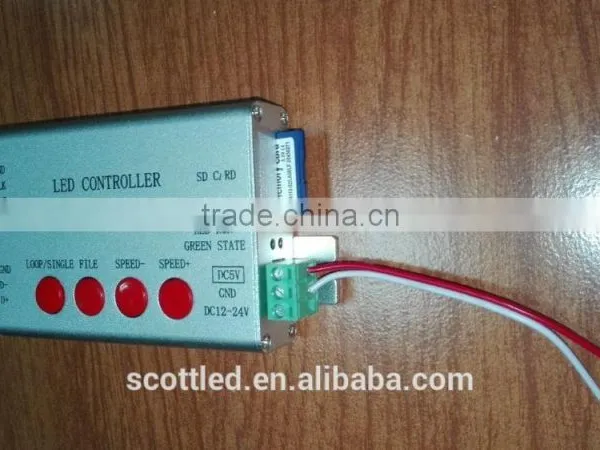

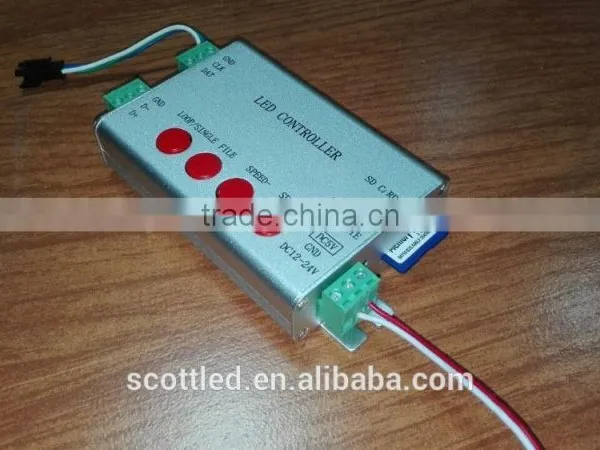

T-1000B SD Card Color Changing Programmed Ucs1903/ws2811 Led Controller

Name: T-1000B SD Card Color Changing Programmed Ucs1903/ws2811 Led Controller
Brand: SCOTT
SKU: 116303645

US$ 15.67 - 17.98 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SCOTT

Model Number:

SC-T-1000B

Shenzhen Scott Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen Zhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SCOTT

Model Number SC-T-1000B

Type Other, SD Card

Voltage Other, 5V-24V

Support chips:

New T-1000B SD Card LED Pixel Controller,T-1000 SPI Digital RGB Dimmer,Support

Support IC type	Module in LedEdit software	Pixel numbers	Remark
LPD6803,D705,1101,6909, 6912	T-1000B-6803	2048 pixel
LPD8806,LPD8809	T-1000B-8806	2048 pixel
TM1803,TM1804,TM1809,TM1812	T-1000B-TM	2048 pixel	TM1804 and TM1809 low speed and high speed
TM1903TM1904TM1909TM1912	T-1000B-TM19	2048 pixel
UCS6909UCS6912UCS7009UCS5903	T-1000B-UCS-32	2048 pixel
UCS1903UCS1909UCS1912	T-1000B-UCS-256	2048 pixel	low speed and high speed
UCS3903	T-1000B-UCS-1024	2048 pixel
DMX512	T-1000B-DMX	170/512 pixel	Compatible DMX512
WS2801,WS2803	T-1000B-WS	2048 pixel
WS2811	T-1000B-WS2811	2048 pixel	low speed and high speed
DS189	T-1000B-DS189	2048 pixel
TLS3001,TLS3002TLS3008	T-1000B-TLS	* pixel
P9813	T-1000B-P9813	2048 pixel
SM16715	T-1000B-SM16715	2048 pixel	low speed and high speed
SM16716	T-1000B-SM16716	2048 pixel
BS0901,BS0902	T-1000B-0901	2048 pixel
BS0815	T-1000B-0815	2048 pixel

Connection diagram:

7.5V-24V	DC power input, to provide two sets of power input, select a group can be.
5V	Power Ground.
GND	Error indicator
ERROR	Power LED
POWER	SD card slot
SD CARD	Output CLK
CLK	Output DATA
DAT	Signal Ground
GND

GND	Signal Ground
