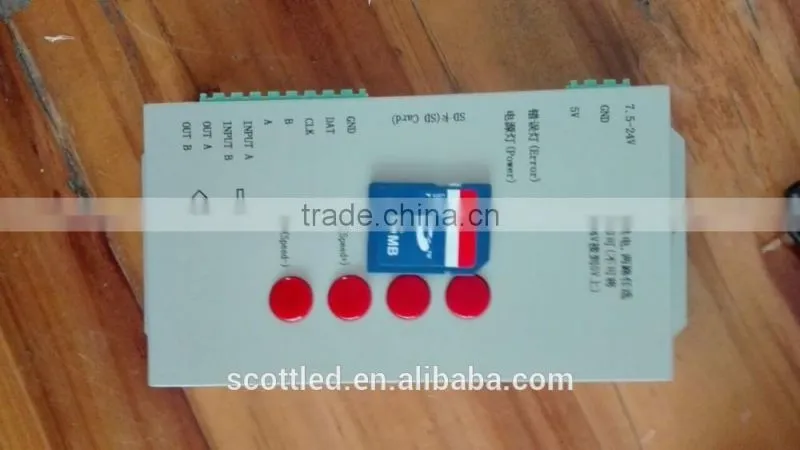

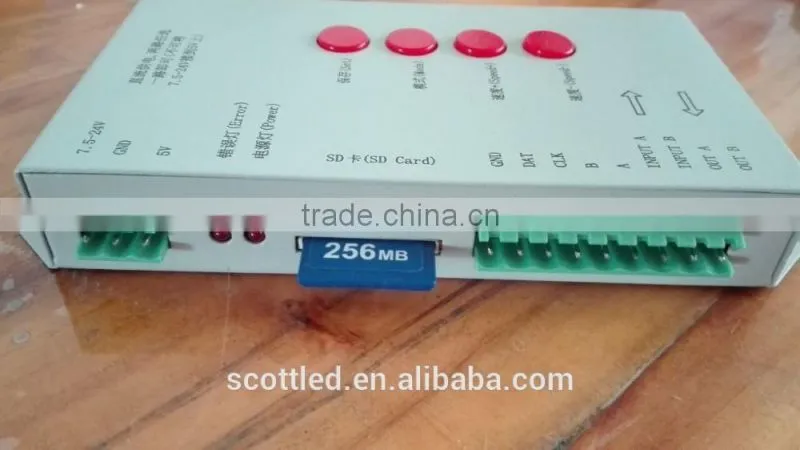

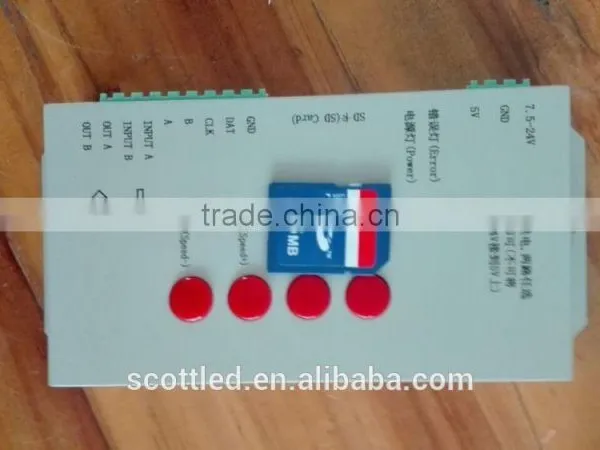

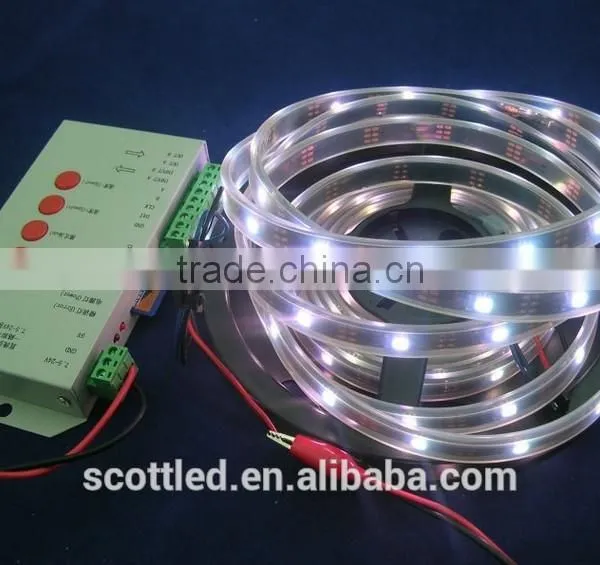

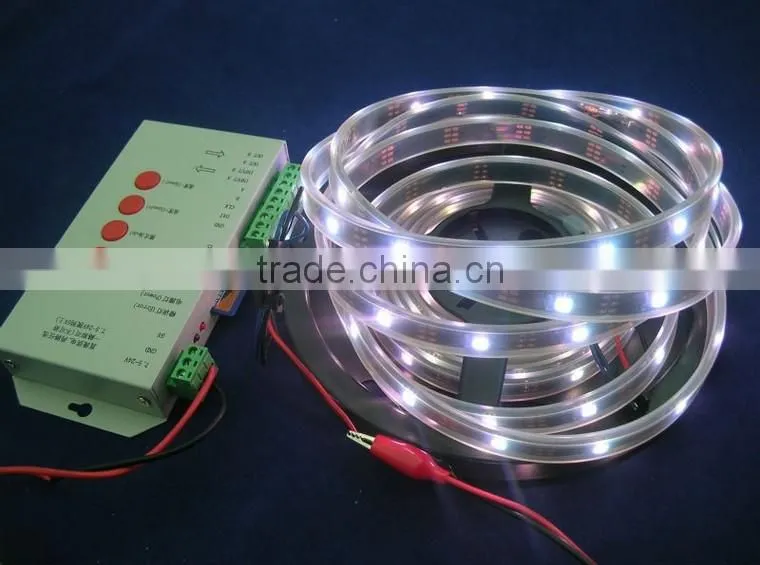

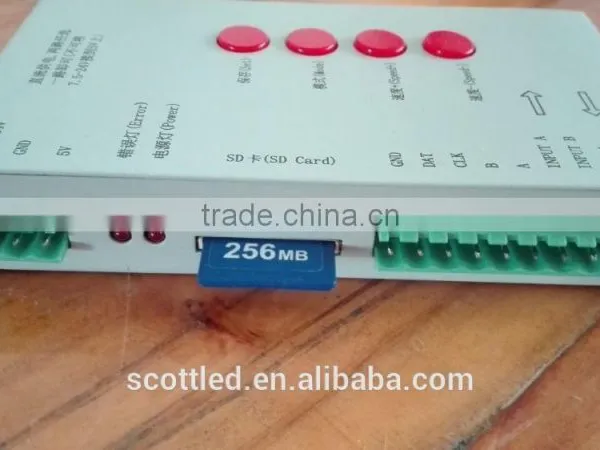

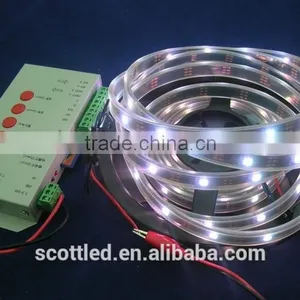

T-1000S SD card led pixel controller

FOB Price

USD $24.47 - $24.62 / Piece

5 Pieces(Min.Order)

Product Details

Place of Origin:	Guangdong, China	Brand Name:	SCOTT	Model Number:	SC-T-1000S
Type:	Other, SD Card	Voltage:	Other, 5V-24V

Support IC type	Module in LedEdit software	Pixel numbers	Remark
LPD6803,D705,1101,6909, 6912	T-1000S-6803	2048 pixel
LPD8806,LPD8809	T-1000S-8806	2048 pixel
TM1803,TM1804,TM1809,TM1812	T-1000S-TM	2048 pixel	TM1804 and TM1809 low speed and high speed
TM1903TM1904TM1909TM1912	T-1000S-TM19	2048 pixel
UCS6909UCS6912UCS7009UCS5903	T-1000S-UCS-32	2048 pixel
UCS1903UCS1909UCS1912	T-1000S-UCS-256	2048 pixel	low speed and high speed
UCS3903	T-1000S-UCS-1024	2048 pixel
DMX512	T-1000S-DMX	170/512 pixel	Compatible DMX512
WS2801,WS2803	T-1000S-WS	2048 pixel
WS2811	T-1000S-WS2811	2048 pixel	low speed and high speed
DS189	T-1000S-DS189	2048 pixel
TLS3001,TLS3002TLS3008	T-1000S-TLS	* pixel
P9813	T-1000S-P9813	2048 pixel
SM16715	T-1000S-SM16715	2048 pixel	low speed and high speed
SM16716	T-1000S-SM16716	2048 pixel
BS0901,BS0902	T-1000S-0901	2048 pixel
BS0815	T-1000S-0815	2048 pixel

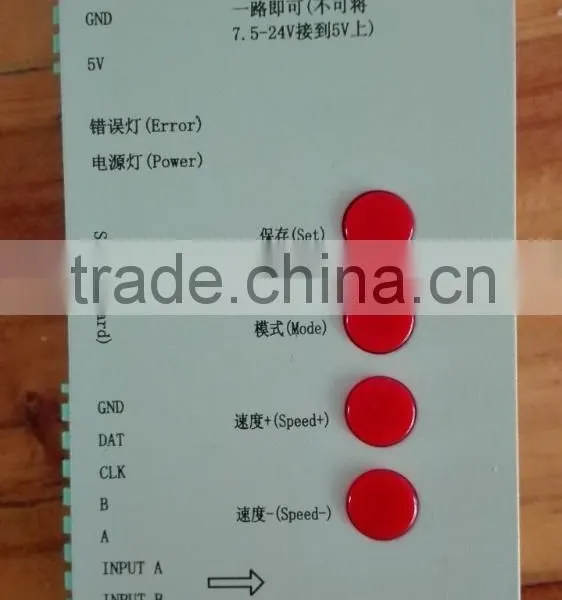

Connection diagram:

7.5V-24V	DC power input, to provide two sets of power input, select a group can be.
5V	Power Ground.
GND	Error indicator
ERROR	Power LED
POWER	SD card slot
SD CARD	Output CLK
CLK	Output DATA
DAT	Signal Ground
GND

GND	Signal Ground
